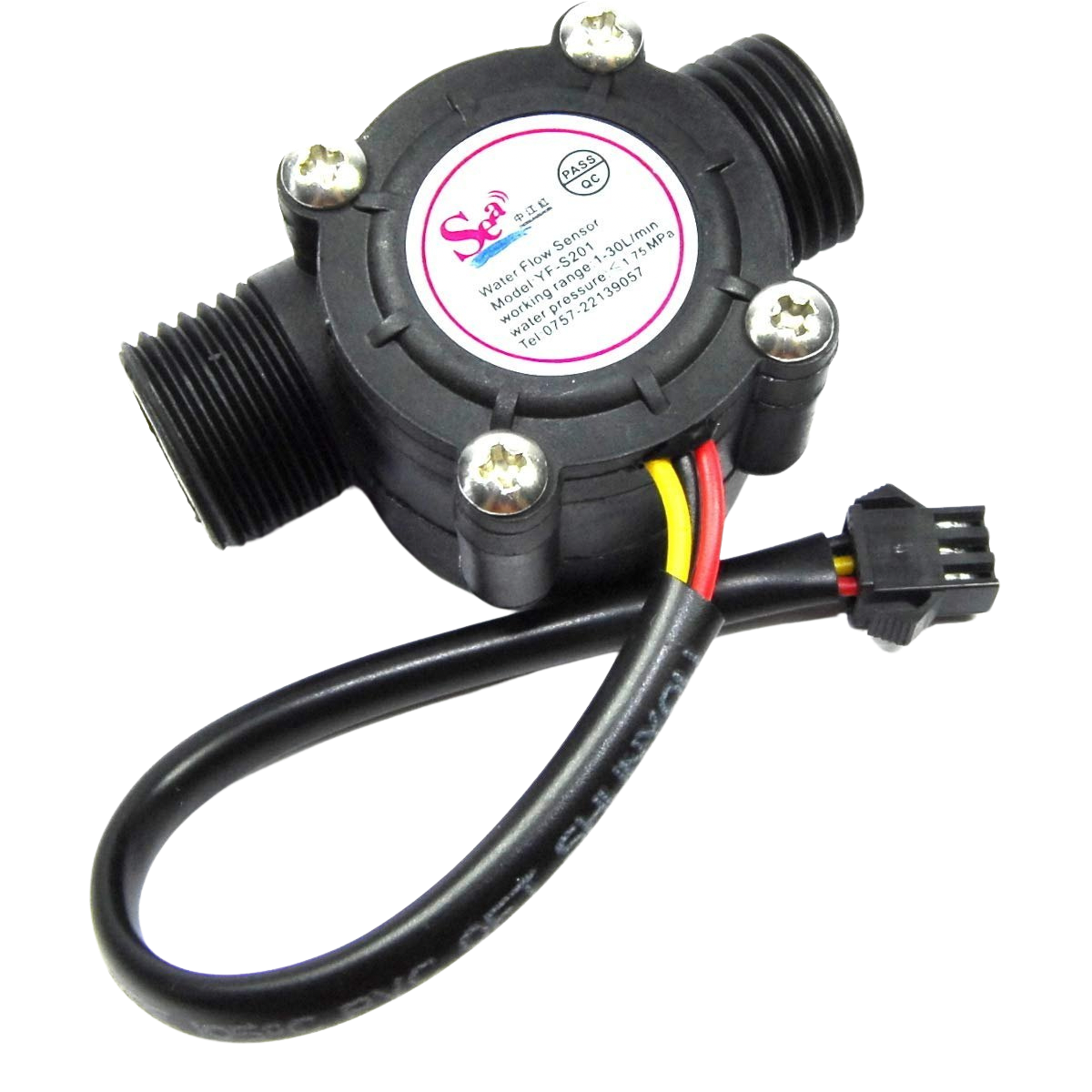

YF-S201 Water Flow Sensor حساس تدفق الماء

The YF-S201 Water Flow Sensor is a compact, reliable flow sensor designed to measure liquid flow rates between 1 and 30 liters per minute. It uses a sealed, integrated magnetic Hall-effect sensor to produce an electrical pulse with every rotation of the internal rotor, providing a straightforward pulse output that can be counted or timed by microcontrollers and data acquisition systems. Key characteristics include a standard 1/2 inch nominal pipe connection for easy integration into existing plumbing and a 5V TTL pulse output compatible with common logic levels. The sensor is supplied with a 15 cm (5.9 inch) cable for connection to control or monitoring equipment. Its pulse-based output makes it suitable for applications where flow rate or totalized volume measurements are required by downstream electronics. This model is compatible with many Dataq Instruments products, including DI-2108, DI-2108-P, DI-4108, DI-4208, and DI-4718B (with the appropriate 8B module) when used with matching input configurations. The YF-S201 is well suited for prototyping, hobbyist projects, and integration into systems that accept a pulse input for flow measurement.
