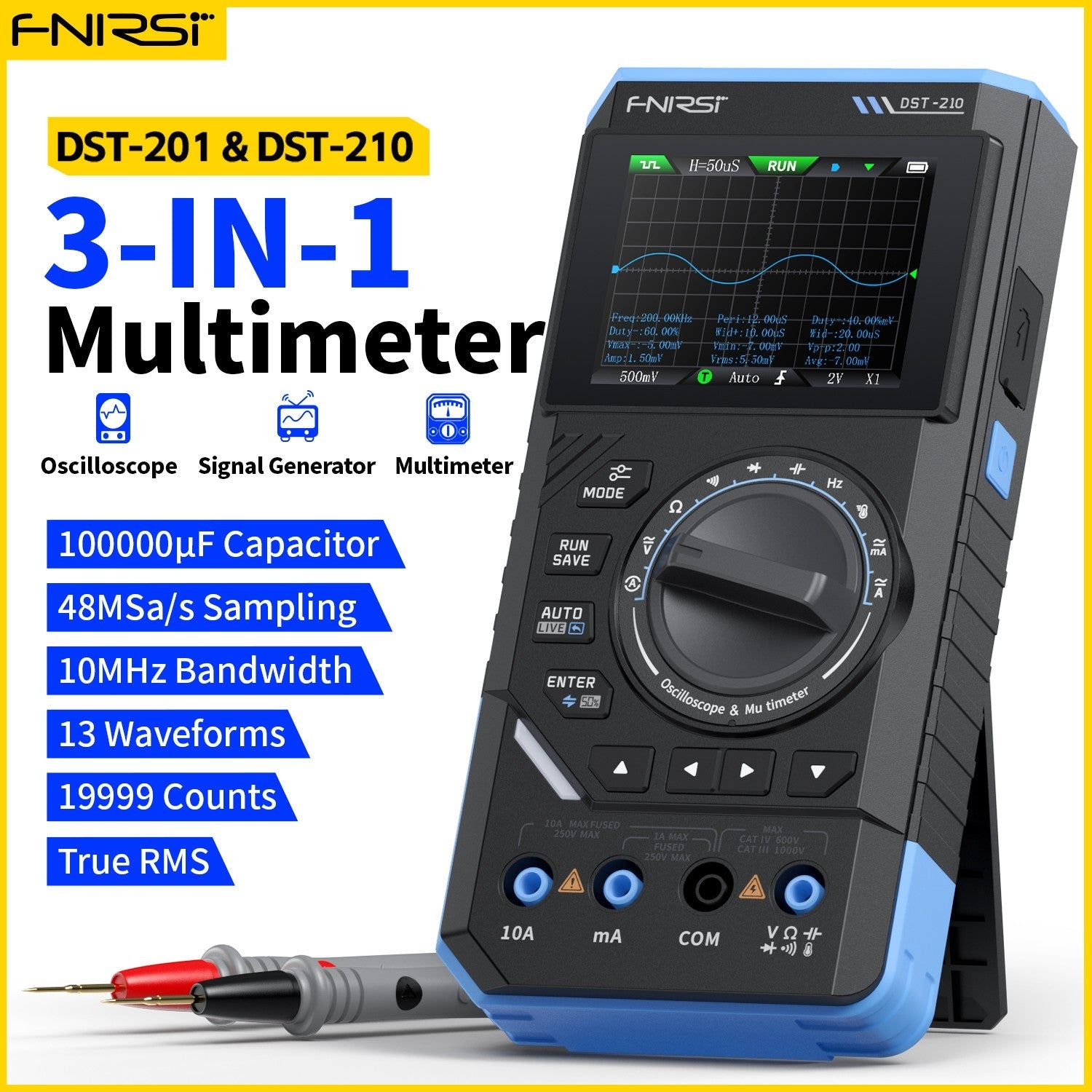

Fnirsi DST-210 Handheld 3-in-1 Multimeter + 10Mhz Oscilloscope + Signal Generator

Features:

• DST-201 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, DST-210 provides a sampling rate of 48MSa/s and an analog bandwidth of 10MHz, ensuring waveform analysis

• It is equipped with voltage protection up to ±400V, suitable for a wide range of applications.

• Supports 13 waveforms with a frequency range of 0-10KHz and an adjustable output voltage of 3V

• The frequency, amplitude, and duty cycle can all be fine-tuned to meet various testing needs.

• DST-201/210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and LIVE zero/live line, providing powerful functions for various measurements.

• The device is equipped with overload protection and low battery warning for added safety

• Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects

• Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use

• DST-201/210 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists, and home users

• Model: DST-210 / DST-201

• Screen Material: 2.8 inches TFT Colorful Screen

• Backlight: Brightness adjustable

• Power Supply: Type-C (5V/1A)

• Battery: 3000mAh

• Languages: Chinese、English

• Product Size: ≈177*87*34mm

• Bare Weight: ≈300g

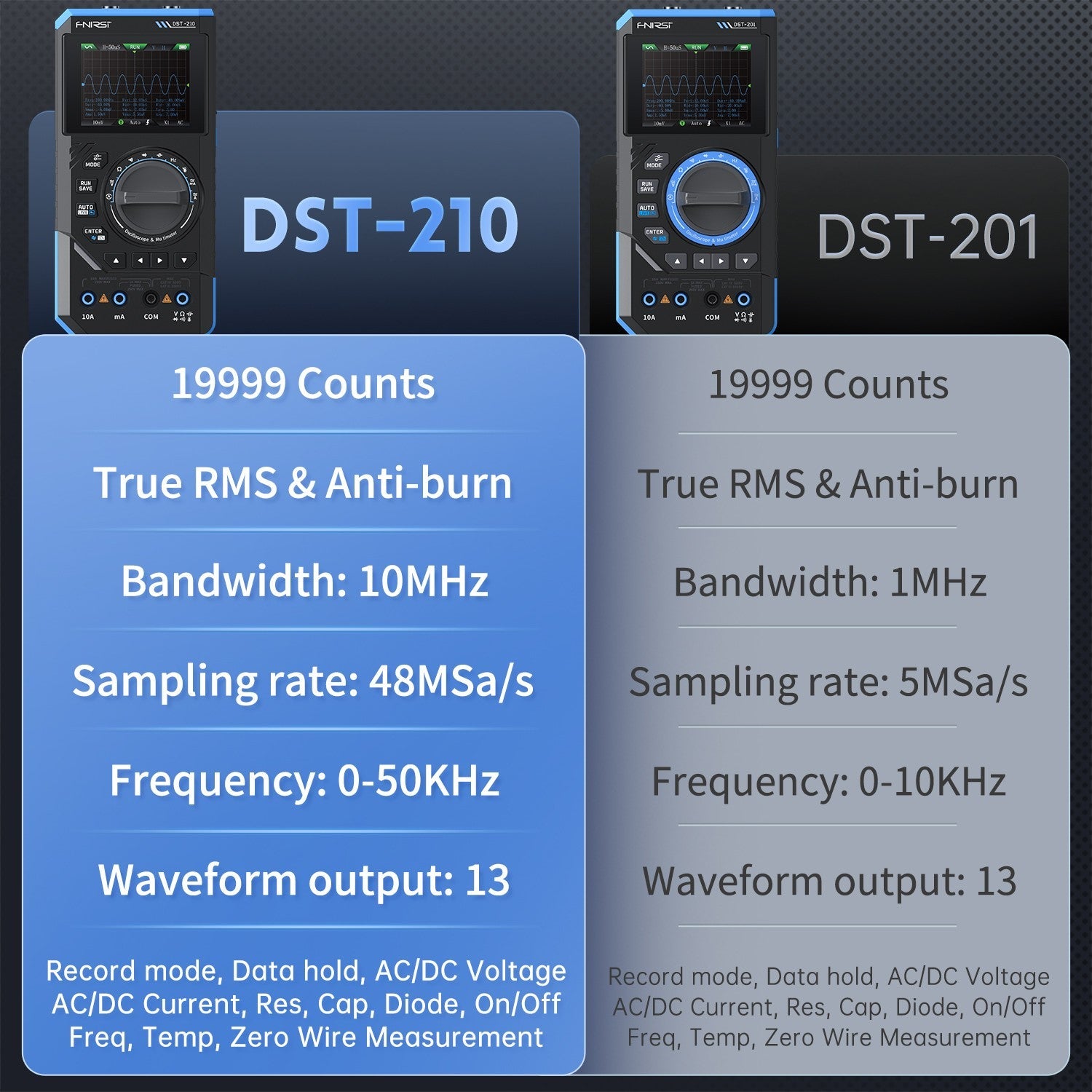

• Sampling Rate: DST-210: 48MSa/s; DST-201: 5MSa/s

• Analog Bandwidth: DST-210: 10MHz; DST-201: 1MHz

• Input Impedance: 1MΩ

• Coupling Mode: AC/DC

• Test Voltage Range: 1:1 probe: 80Vpp (+40V); 10:1 probe: 800Vpp (+400V)

• Vertical Sensitivity: 10mV/div ~ 10V/div(x1)

• Vertical Displacement: Adjustable with indicators

• Horizontal Time Base: DST-210: 50ns~20s; DST-201: 500ns~20s

• Trigger Mode: Auto / Normal / Single

• Trigger Type: Rising Edge & Falling Edge

• Trigger Level: Adjustable with indicators

• Waveform Freeze: Support (HOLD function)

• Auto Measurement: Max, Min, Avg(Vavg), RMS, VPP, Freq, Period, Duty Cycle

• DC Voltage: 1.9999V / 19.999V / 199.99V / 1000V

• AC Voltage: 1.9999V / 19.999V / 199.99V / 750.0V

• DC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

• AC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

• Resistance: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ /1.9999KΩ / 199.99Ω

• Capacitance: 999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF

• Frequency: 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz

• Temperature: -55~1300℃ / -67~2372℉

• Diode / Continuity: Support

• Single Probe AC Voltage Measurement (LIVE): Support

• Output Waveform: Support 13 types of waveform output

• Waveform Frequency: DST-210: 0-50KHz; DST-201: 0-10KHz

• Square Duty Cycle: 0~100%, Square and Sawtooth are adjustable

• Waveform Amplitude: 0.1V~3.0V

• 1 x Host

• 1 x Test Cable

• 1 x Type-C Cable

• 1 x Alligator Clip Wire
