FNIRSI DSO-TC4 3in1 Digital Oscilloscope Transistor Tester Signal Generator 10MHz 48Ms/s Automative Ocsillscope LCR Tester

FNIRSI DSO-TC4 3in1 Digital Oscilloscope Transistor Tester Signal Generator 10MHz 48Ms/s Automative Ocsillscope LCR Tester

LD 500.000

Details

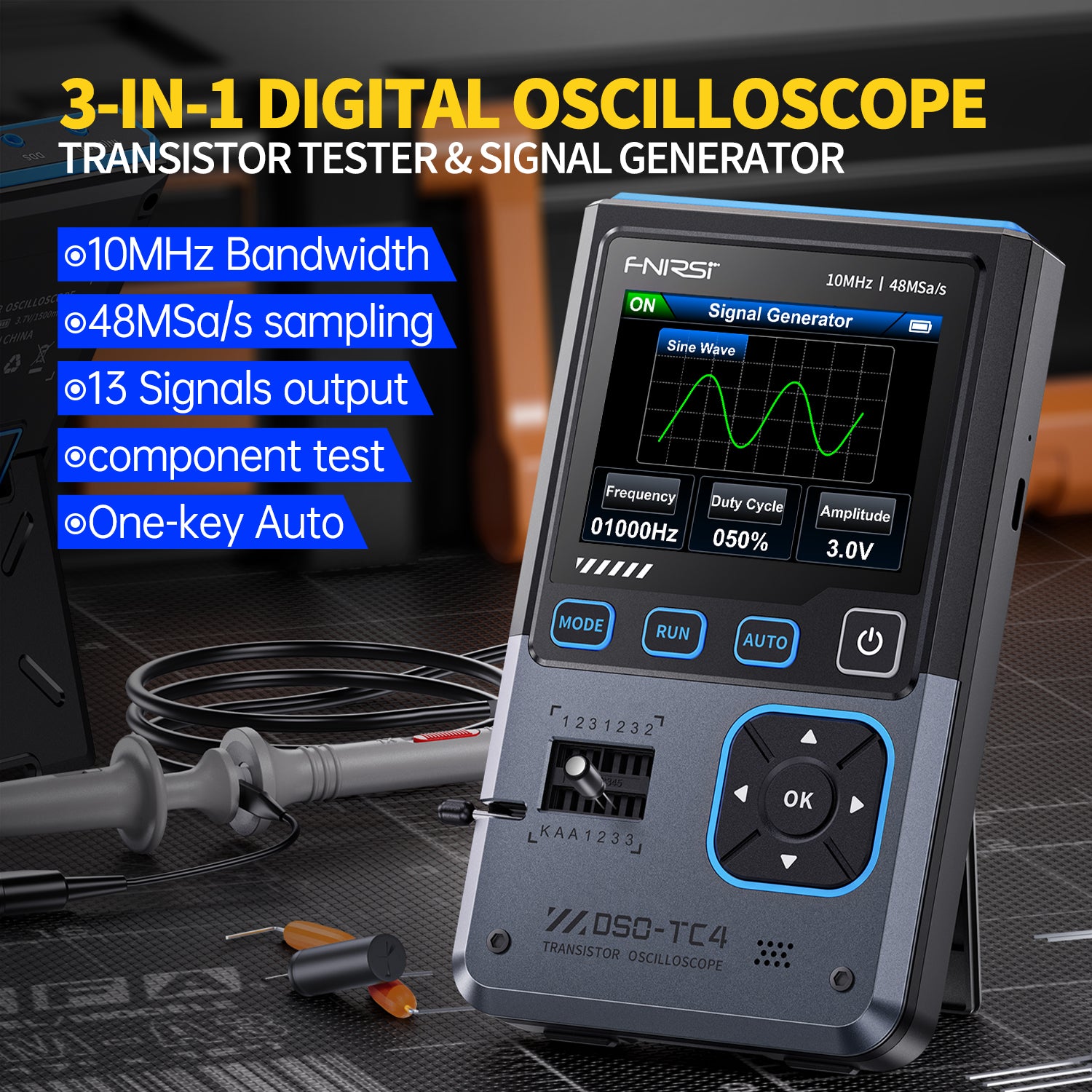

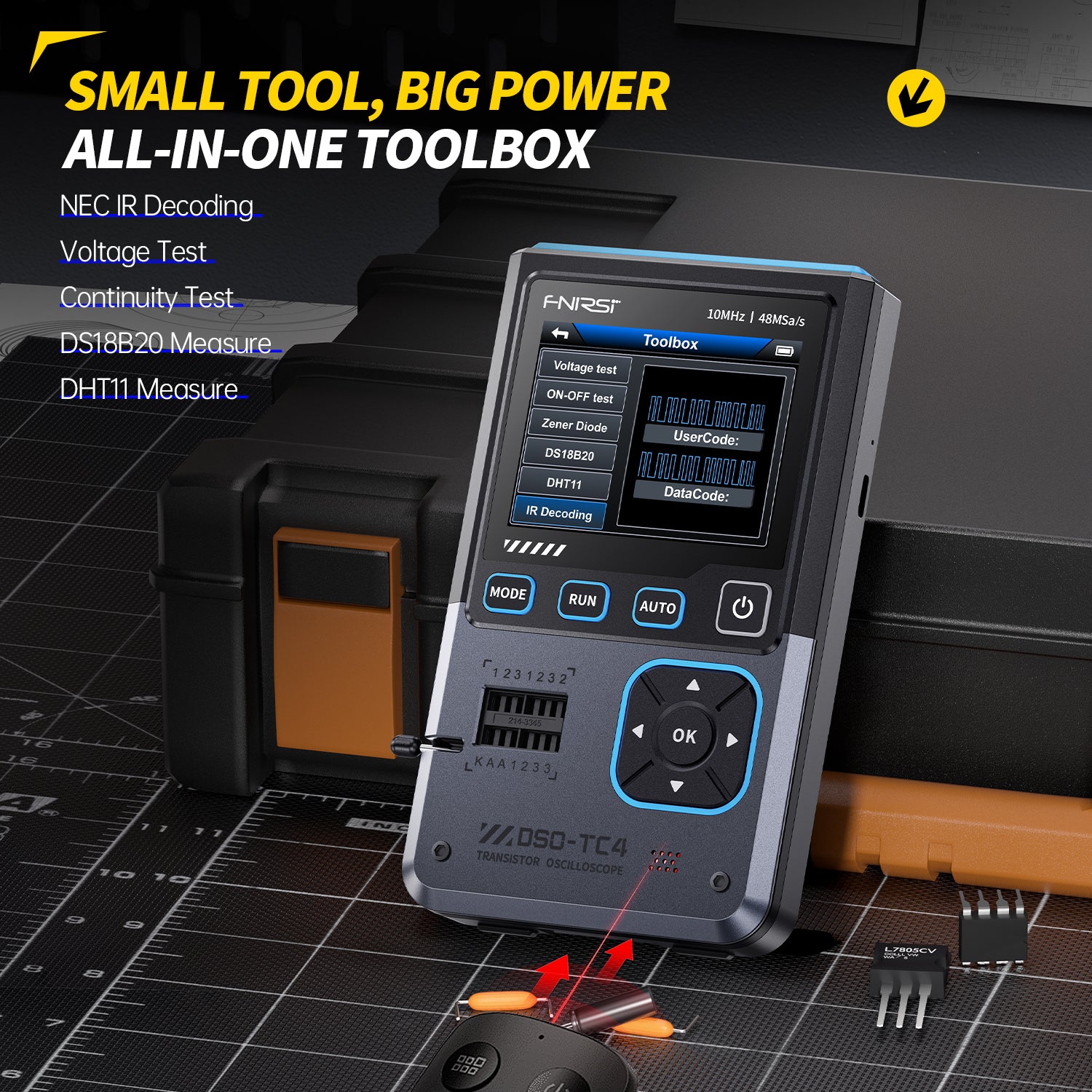

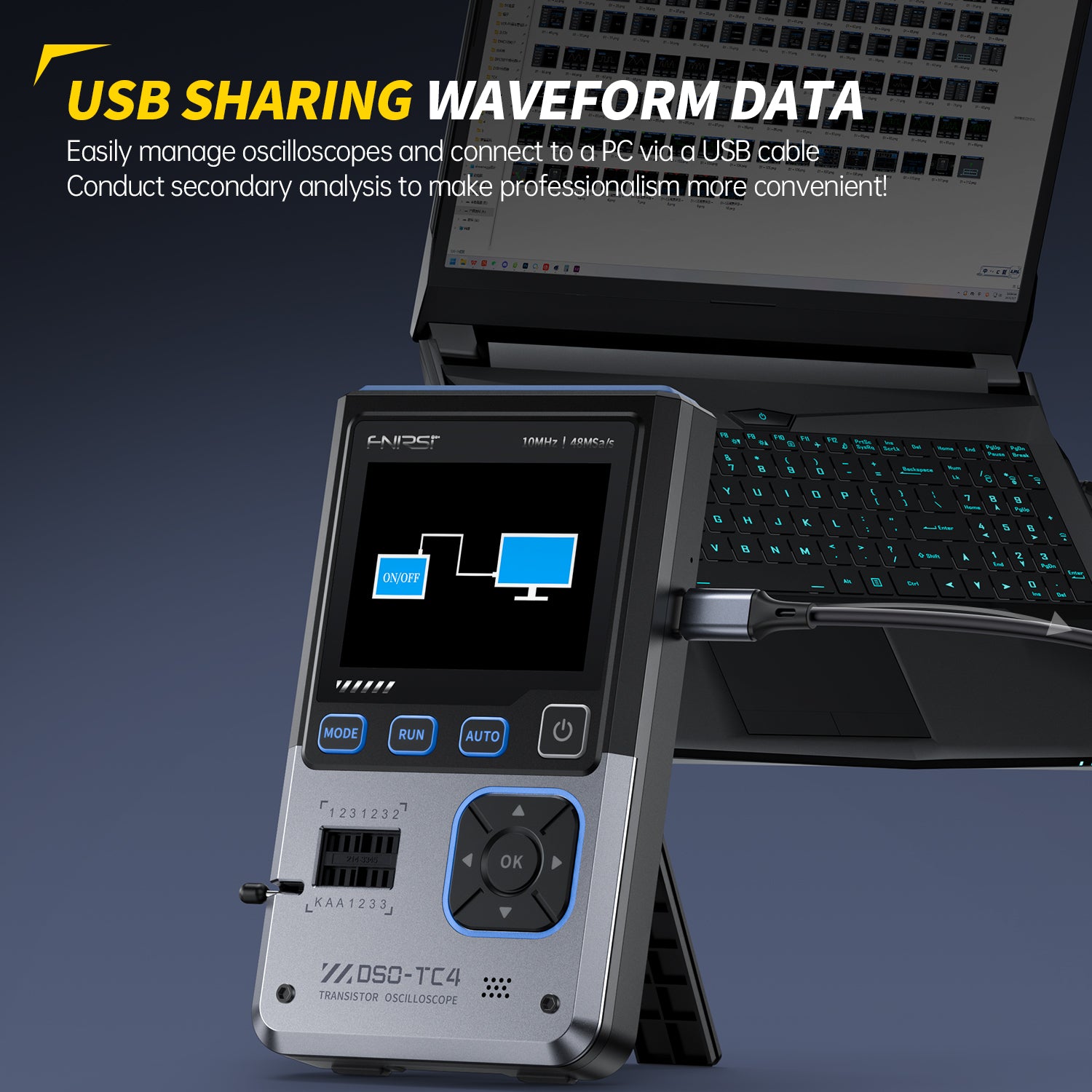

The Fnirsi DSO-TC4 is both a multitester, digital oscilloscope and signal generator. The multitester features an electronic component tester, voltage test, temperature and humidity measurement and infrared decoding. Though DSO-TC4 is small and easy to carry and can be used for several measurements, The device is not extremely accurate, and therefore not meant for precise measurements. If you need a versatile tool where precision is not required, this is the right product for your home lab. The DSO-TC4 has a built-in battery of 1500mAh that can be charged with a USB-C charger. Also, this multitester has an MCX connector and a 2.8" TFT colour display. Finally, the DSO-TC4 can easily share measurements, screenshots and its screen when connected to a PC via a USB-C cable.

Oscilloscope

The oscilloscope has a real-time sample frequency of 48MSa/s and a bandwidth of 10MHz. It has a test voltage range of 400V AC/DC though it is recommended to only measure up to 40V AC/DC, and not to connect it to a wall socket. The measured waveform can be displayed on the 2.8" screen without adjustments.

Multitester & signal generator

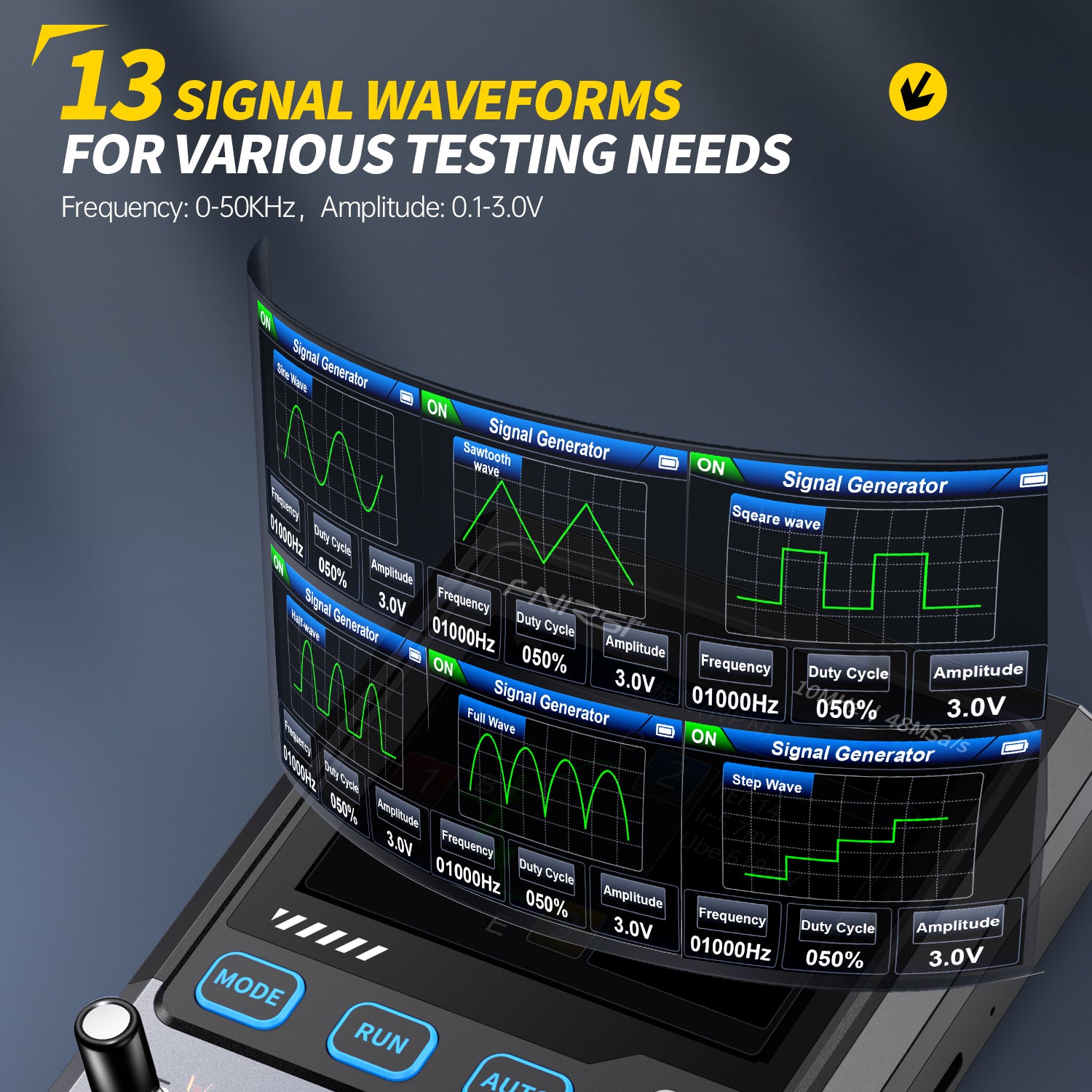

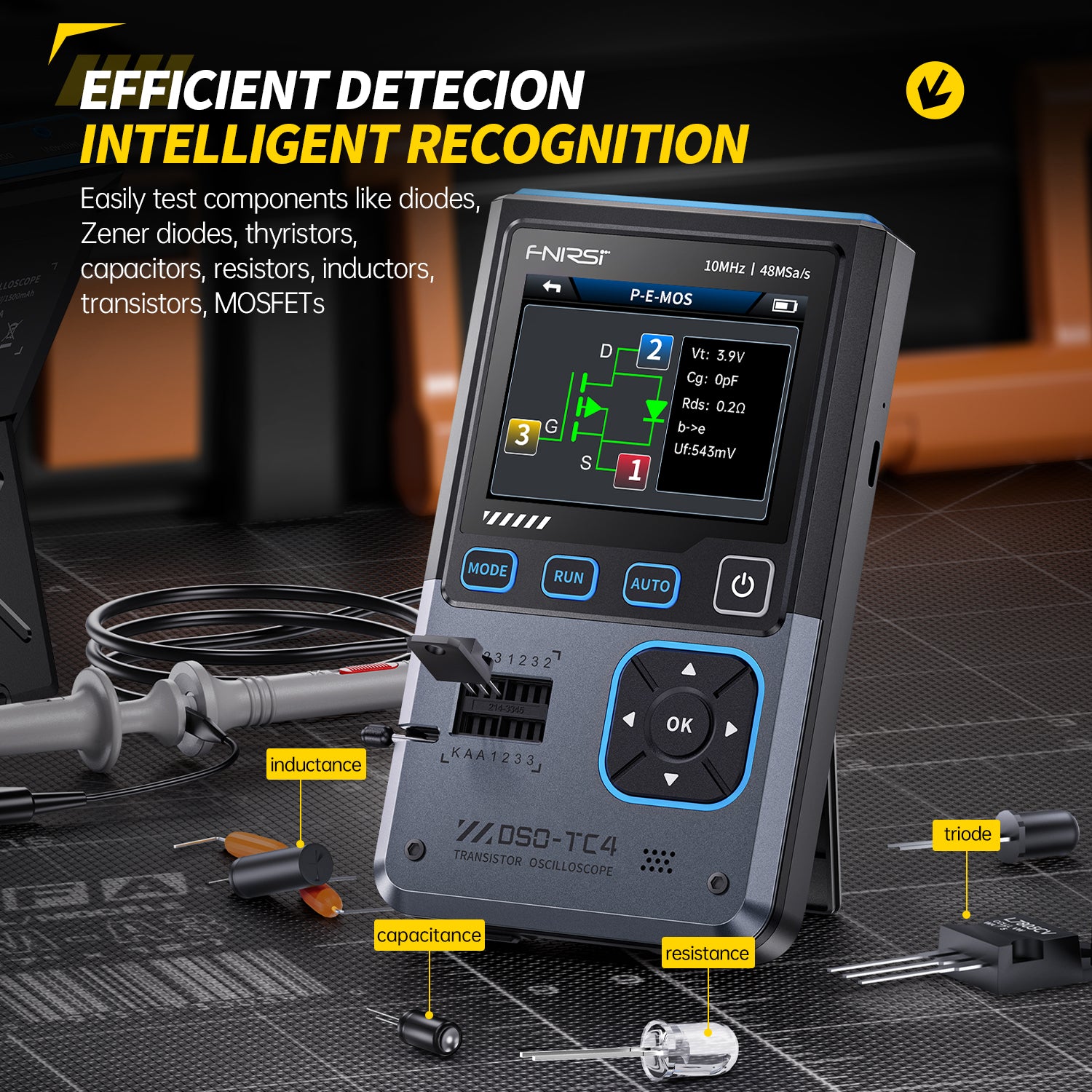

The multitester can test many different components, such as resistors, capacitors, coils and transistors. The signal generator has 13 different major waveforms, such as square wave, triangle wave, pulse wave, sine wave, ramp wave and DC. The DSO-TC4 has an adjustable output frequency of 0-50kHz and an adjustable voltage of 3.0V.

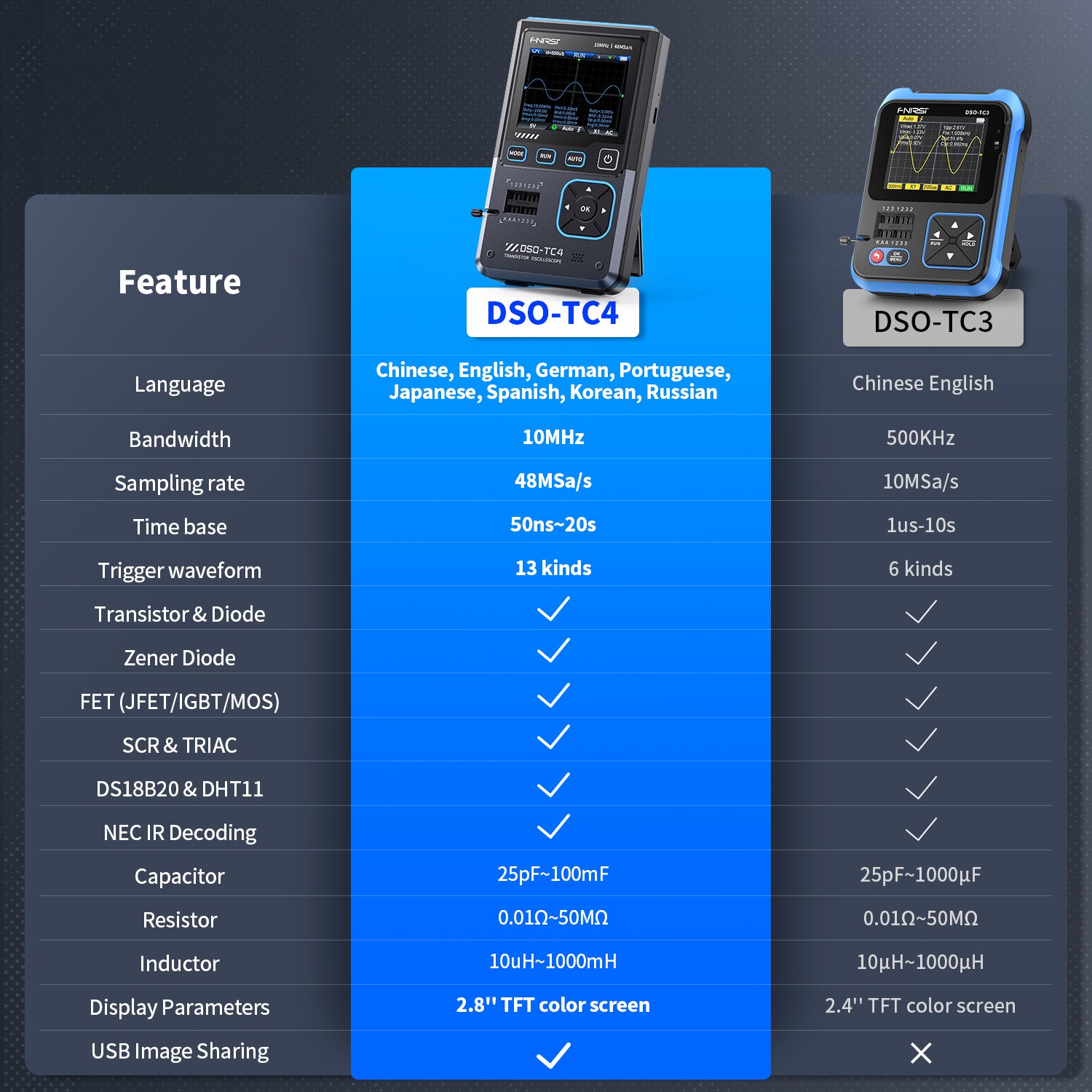

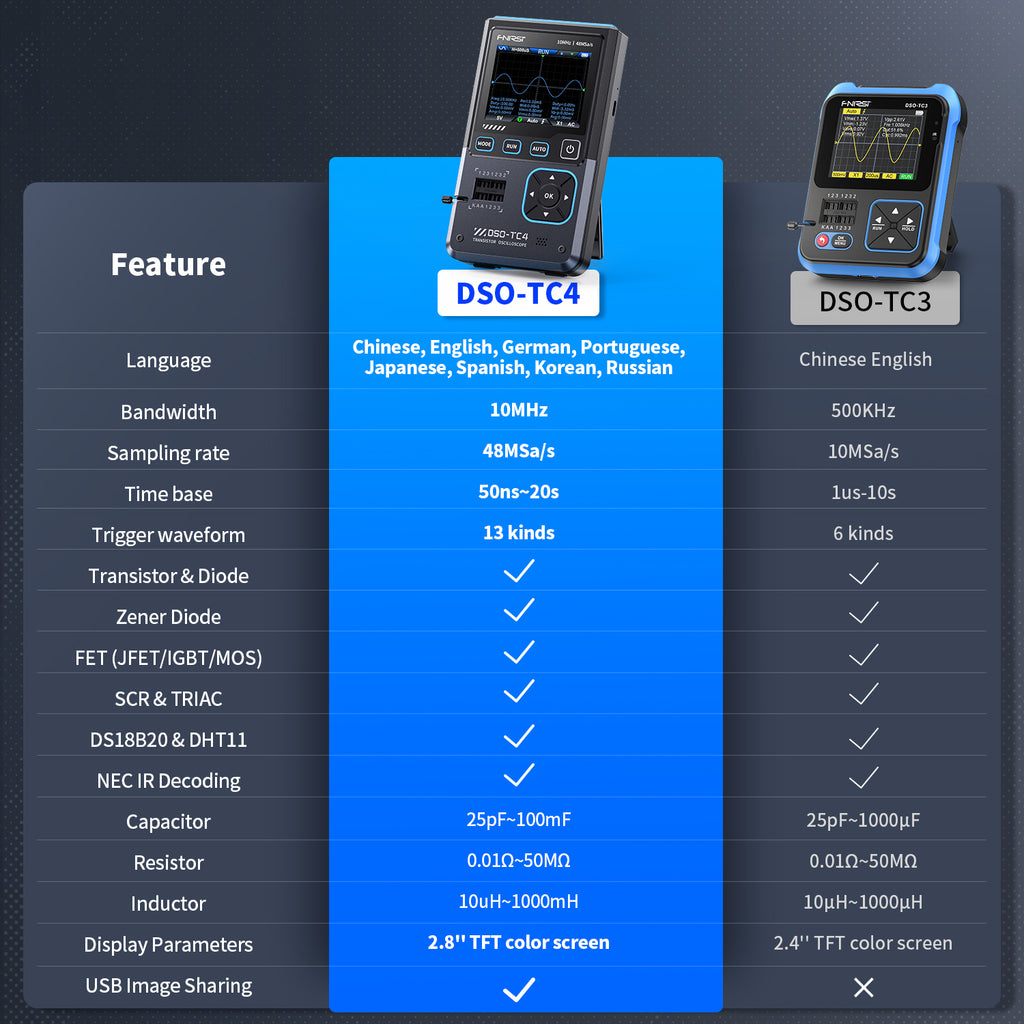

Specifications

Bandwidth 10 MHz
Channels 1
Sample rate 48 MSa/s
Voltage range 0 V - 400 V (recommended 0 V - 40 V)
Vertical scale 10 mV/div - 10 V/div
Horizontal scale 50 ns/div - 20 s/div
Trigger mode Auto / Normal / Single
Resistance 0.01 Ω - 50 MΩ
Capacitance 25 pF - 1000 μF
Inductance 10 μH - 1000 μH
Power supply Battery: 3.7 V, 1500 mAh
DC input 5 V, 1 A
Display 2.8" TFT colour
Dimensions 90 x 142 x 27.5 mm
Weight 186 g

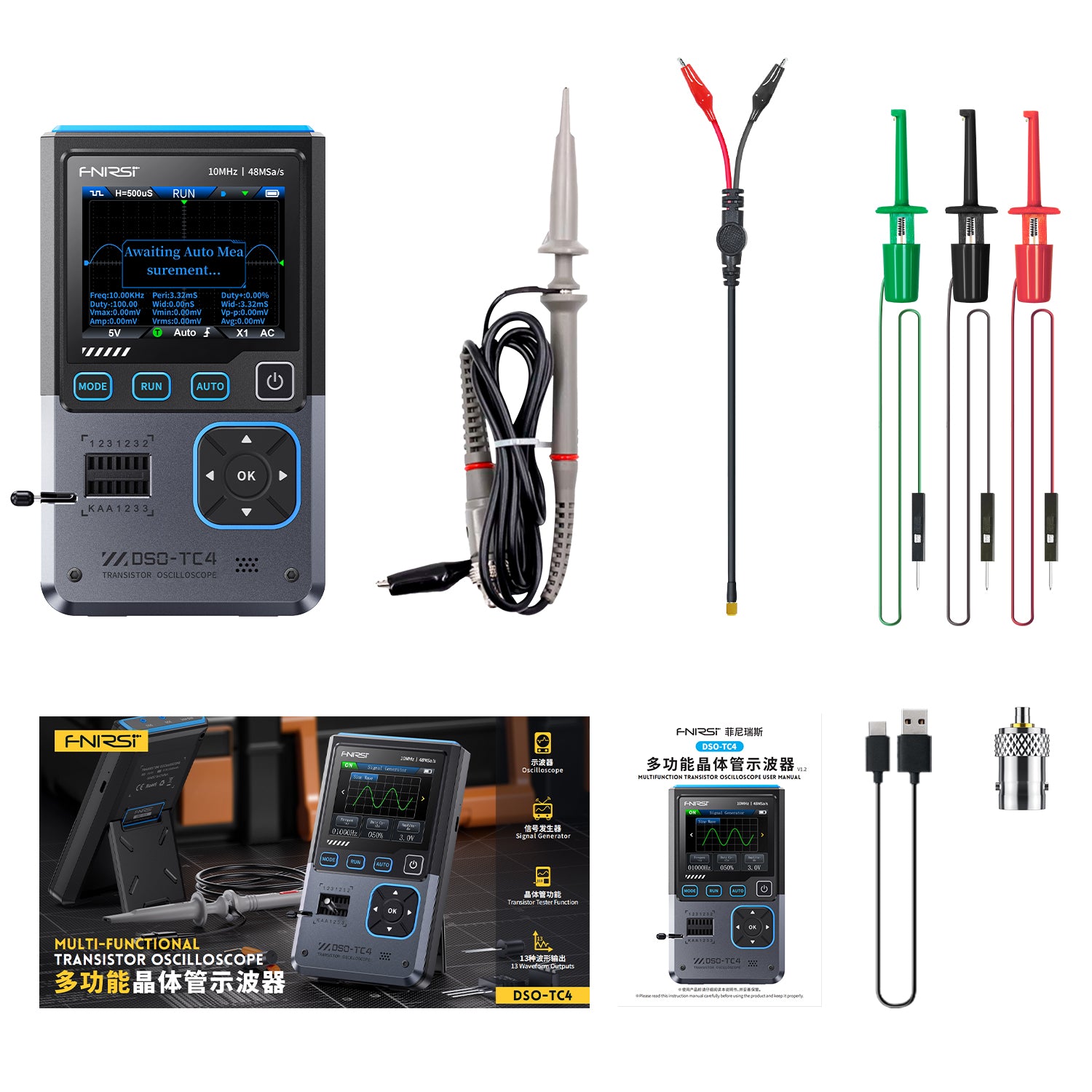

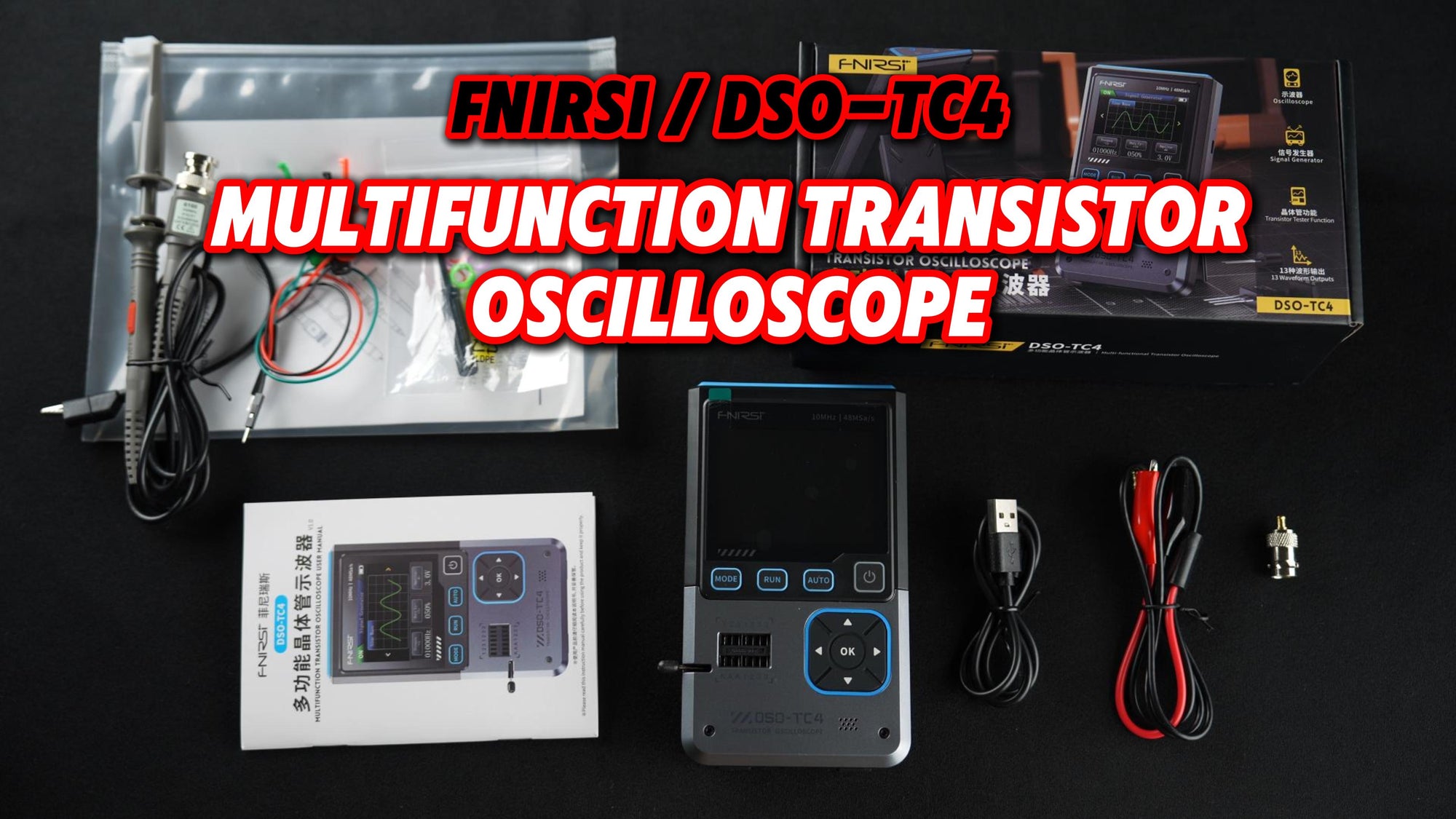

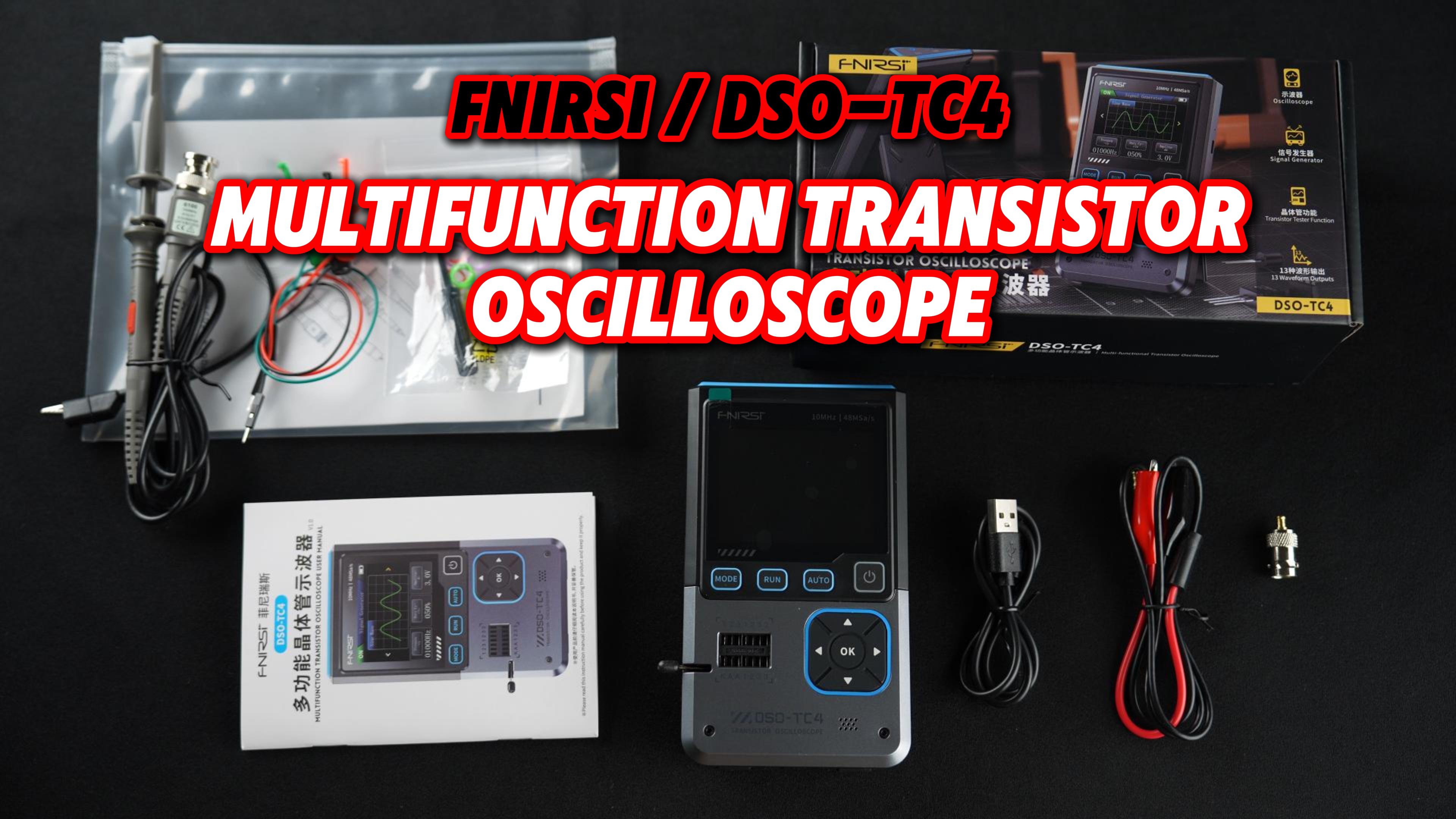

Accessories

  • 1x P6100 oscilloscope probe
  • 1x Alligatorclip
  • 3x testclamps
  • 1x USB-C cable
