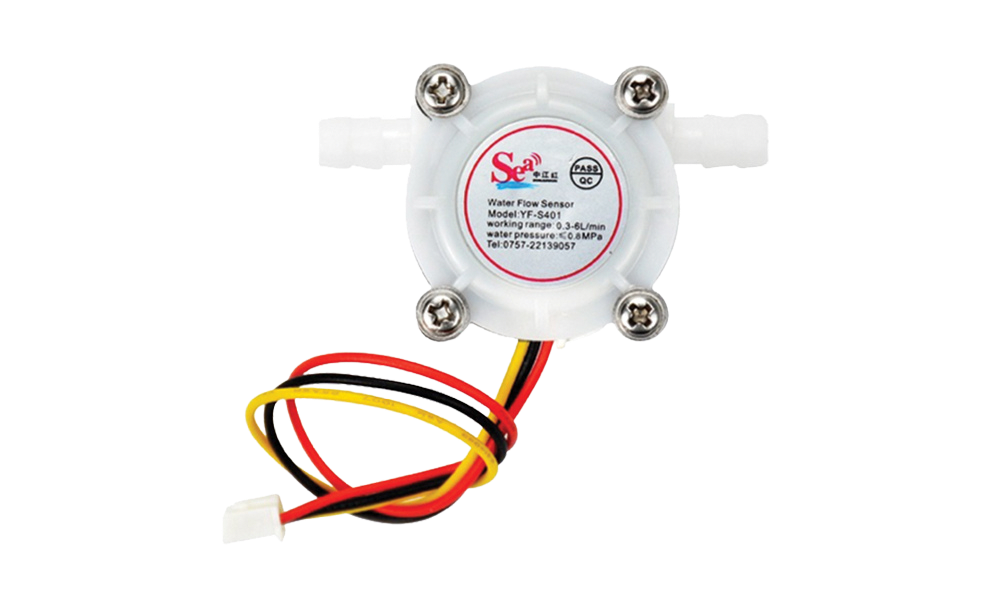

YF-S401 Water Flow Sensor حساس تدفق الماء
YF-S401 Water Flow Sensor حساس تدفق الماء
LD 30.000 LYD
تعذر تحميل مدى توفر الطلب
- Max Supply Voltage: 5-12V DC
- Water Flow Range: 0.3-6 L/min
- Inner Diameter: 4 mm
- Outside diameter: 7 mm
- Nozzle Size Standard : Type 18 (1/8" / 3.175mm)
- Proof Water Pressure: <0.8 MPa
- Operating Current: 15 mA (DC 5V)
- Insulation Resistance: >100 MΩ
- Accuracy: ±5%
- The Output Pulse High Level: >4.5 VDC (DC input voltage 5 V)
- The Output Pulse Low Level: <0.5 VDC (DC input voltage 5 V)
- Water-flow Formula: 1L = 5880 square waves
- Working Humidity Range: 35% ~ 90% RH (no frost)
- Dimension: 58 x 35 x 26 mm
- Weight: 30g
