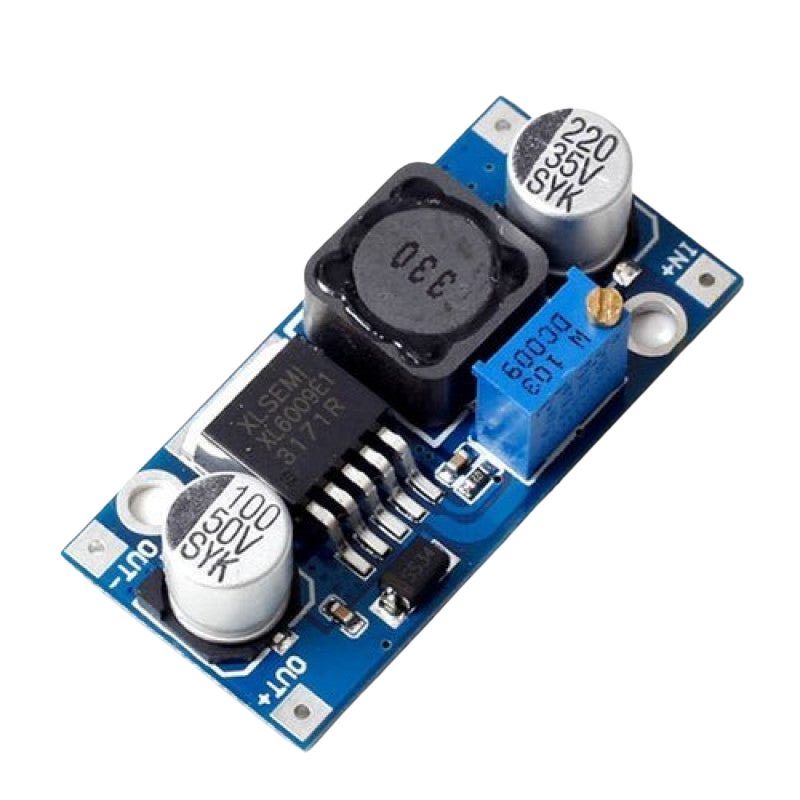

Xl6009 Dc-Dc Step Up Module رافع جهد

This XL6009 DC-DC step-up module delivers reliable, compact voltage boosting for a wide range of electronic projects. Engineered for stable conversion, it raises input voltages smoothly and provides adjustable output to meet specific system requirements.

• Input voltage range: 3V to 35V for compatibility with diverse power sources.
• Output voltage capacity: Adjustable up to 40V to support varied application needs.
• Maximum output current: Up to 2A to power moderate loads.
• Efficiency: Achieves up to 88% to reduce energy loss and heat generation.
• Dimensions: Compact 42 x 20 x 14 mm for space-constrained installations.

Compared with standard boost converters, the XL6009 module offers a wider input range and higher available current, making it suitable for both hobbyist and professional use. The onboard potentiometer enables precise, user-adjustable voltage control while advanced switching technology maintains stable regulation under changing loads. These characteristics contribute to reduced thermal stress and improved long-term reliability of connected components.

Installation is straightforward: mount the module in your system with appropriate input and output polarity, adjust the potentiometer while monitoring output voltage, and observe the module's thermal behavior under expected load to ensure operation within its rated limits. Its compact footprint and robust construction make it a practical choice for prototypes, battery-powered devices, and embedded electronics where dependable voltage boosting is required.
