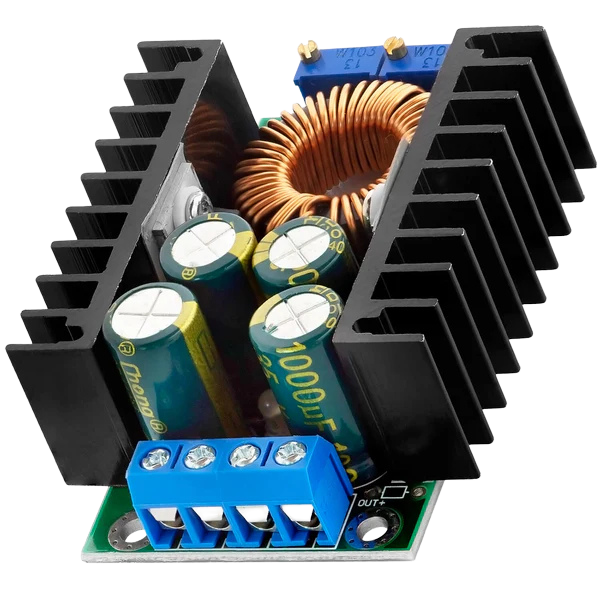

XL4016 300W DC-DC Max 9A Step Down Buck Converter Adjustable 5-40V To 1.2-35V خافض جهد

Overview: The XL4016 300W DC-DC Step Down Buck Converter is an adjustable voltage regulator module designed to convert a higher DC input voltage to a lower adjustable DC output. The module supports an input range of 5–40V and an adjustable output range of 1.2–35V, with a maximum current rating of 9A and a maximum power rating of 300W. The product name also includes the Arabic descriptor خافض جهد (voltage reducer).

Key specifications:

• Input voltage range: 5–40V DC.
• Adjustable output voltage range: 1.2–35V DC.
• Maximum output current: up to 9A (module-limited).
• Maximum power: up to 300W (dependent on cooling and input/output conditions).

Features: The converter provides a compact, adjustable buck topology for stepping down voltage with fine output adjustment. Typical adjustments are made through an onboard potentiometer or trim control. The module is suitable for creating stable lower-voltage rails from higher-voltage sources where a regulated DC output is required.

Applications and usage notes: Common uses include powering electronics from battery packs, bench power supplies, LED drivers, motor controllers, and other DC-powered systems that require an adjustable lower-voltage source. Observe correct input/output polarity when wiring. Because the module’s safe delivery of high current and power depends on thermal conditions, provide adequate cooling, mounting, and ventilation when operating near its maximum ratings. Follow standard safety precautions for high-current DC circuits.
