XH-W1209 DC 12V LED Digital Thermostat Temperature Control متحكم حرارة

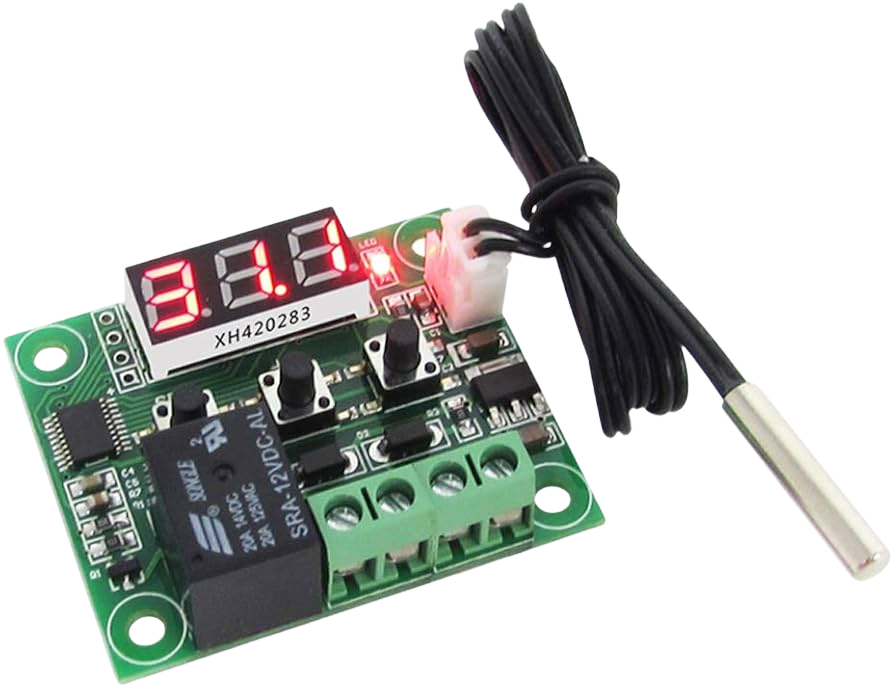

Compact DC 12V digital thermostat controller with a 7-segment red LED display and precise NTC temperature sensing. The XH-W1209 supports ON/OFF temperature control with high resolution and configurable protection and limits, suitable for heating and cooling applications.

Key specifications

• Supply voltage: DC 12V
• Static current: ≤35 mA, attract current ≤65 mA
• Output voltage: DC 12V, output power: 20A relay
• Measurement input: NTC 10K ±0.5% waterproof sensor
• Operating environment: -10 to 60°C, humidity 20%–85%
• Dimensions: 48 × 40 mm; cable length: approx. 52 cm
• Temperature range: -50 to +110°C; control accuracy: 0.1°C; hysteresis accuracy: 0.1°C
• Resolution: -9.9 to 99.9 → 0.1°C; other ranges → 1°C
• Refresh rate: 0.5 s; display: 0.28 inch 3-digit 7-seg red LED

Functions and protection

• ON/OFF control mode for heating or cooling (selectable C/H)
• High temperature protection: configurable 0–110°C
• Delay start timer: 0–10 minutes
• Error correction (P4): adjustable -7.0 to +7.0°C
• Settable upper and lower temperature limits (P2/P3)

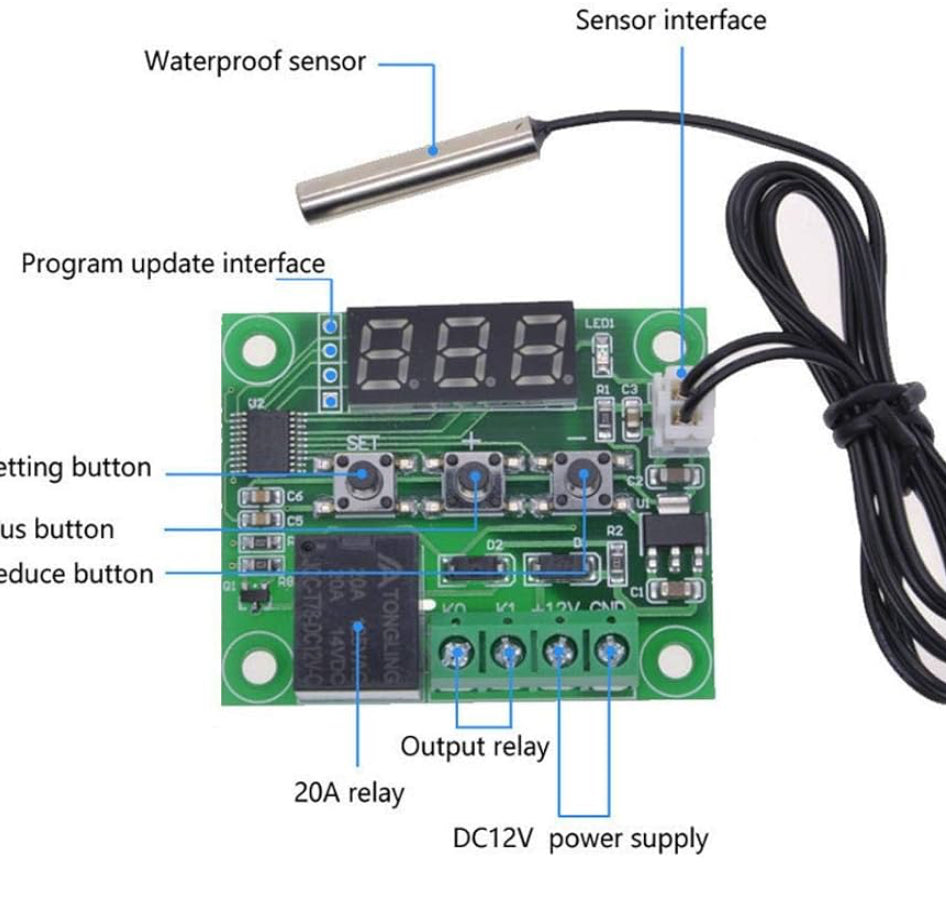

Operation

After connecting power and load the display shows the current temperature. Press SET to enter temperature set mode; adjust with + or - then press SET to confirm. The controller runs an automatic relay test on exit; the red LED indicates relay ON (LED lit) or OFF (LED unlit). Display codes: "888" indicates sensor open or not connected, "HH" indicates temperature out of range, and "---" indicates high temperature protection has activated.

Parameter settings

Hold SET for 5 seconds to enter the main menu and navigate P0–P8 with +/-. Important parameters include P0 (C/H mode), P1 (hysteresis 0.1–15°C), P2/P3 (upper/lower limits), P4 (error correction), P5 (delay start), P6 (high temp alarm), P7 (max temp disconnect) and P8 (reset options).
