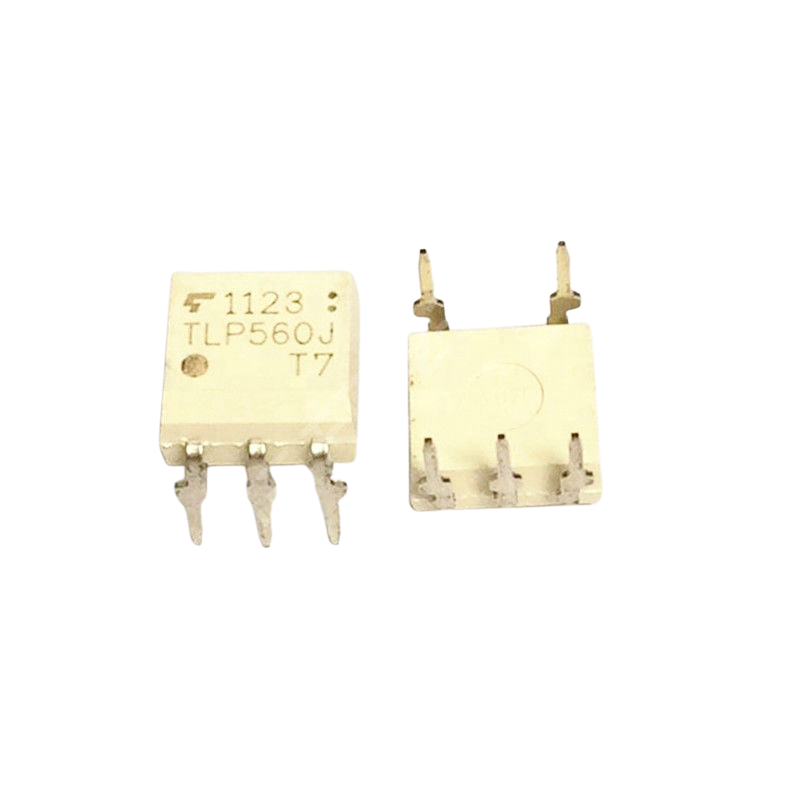

TLP560 Optocoupler

The TLP560 Optocoupler is an electronic isolation device designed to transfer electrical signals between two isolated circuits using light. It provides galvanic isolation while allowing signal transmission, reducing the risk of ground loops and protecting sensitive control circuitry from high voltages and transients.This optocoupler is suitable for a broad range of control, interface and signal isolation tasks in industrial automation, telecommunications, power supplies, and consumer electronics. Typical uses include isolating microcontroller inputs from higher-voltage circuits, level shifting between subsystems, and protecting measurement or sensing electronics from noisy or dangerous lines.Key benefits of the TLP560 Optocoupler include improved system safety through electrical isolation, simplified board layout for mixed-voltage designs, and reliable signal separation between control and power domains. The device is commonly used where signal integrity and protection are required without introducing a direct conductive path.When integrating the TLP560 Optocoupler, follow standard design practices for optoisolator circuits: provide appropriate input current limiting, respect the device's rated isolation voltage, use proper decoupling on the supply rails, and maintain recommended creepage and clearance distances on the PCB. Check the specific datasheet for recommended operating conditions, pin assignments, and maximum ratings before finalizing a design.Packaging and mounting options vary; consult supplier documentation to confirm part markings, package style, and tape-and-reel or bulk availability for manufacturing requirements. Observe handling and soldering guidelines to preserve device reliability and isolation performance.
