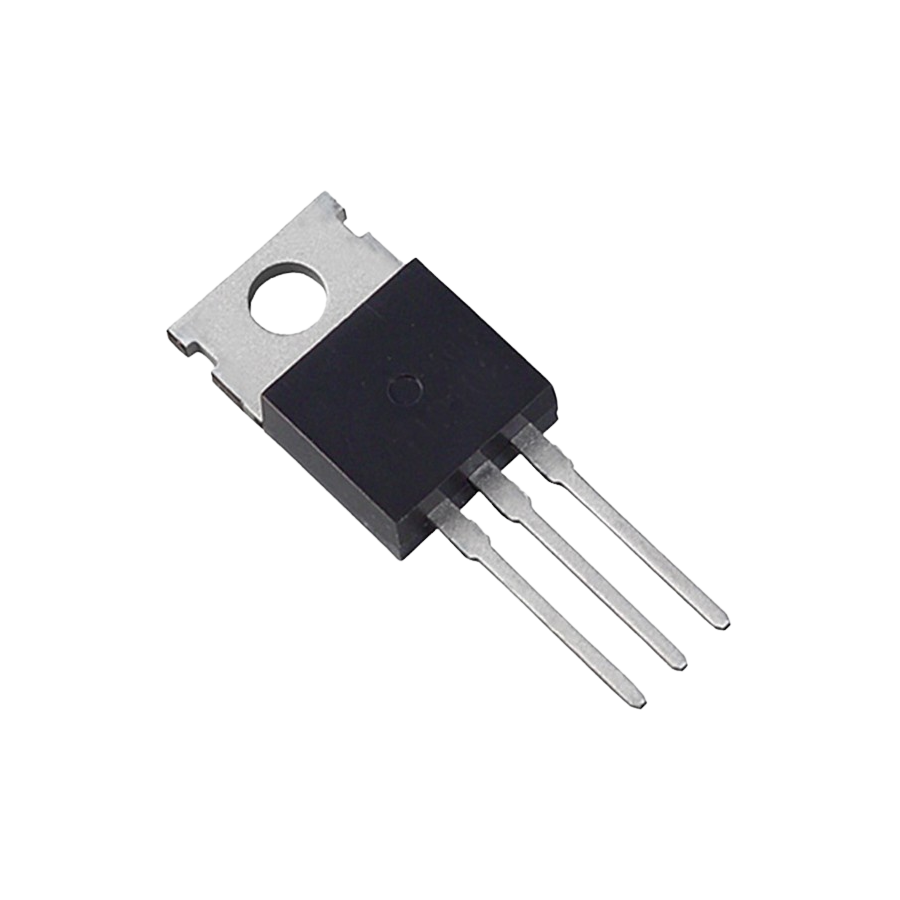

TIP120 5A 60V Silicon NPN Power Transistor

The TIP120 5A 60V Silicon NPN Power Transistor is a general-purpose power transistor intended for switching and amplification in electronic circuits. Specified in the product title, this device supports a maximum collector current of 5A and a maximum collector-emitter voltage of 60V, and is constructed from silicon semiconductor material. It is suitable for use where a robust NPN power transistor is required for handling moderate currents and voltages.

This transistor can be applied in a variety of circuit types including motor drivers, power control modules, and general switching applications where a discrete NPN power transistor is appropriate. Designers can integrate the device on through-hole PCBs or compatible mounting arrangements, and it is commonly used as a component in both prototype and production boards. Proper heat sinking and consideration of power dissipation are recommended when operating near rated limits to maintain reliable performance.

When selecting this component for a design, verify the operating conditions including collector current, collector-emitter voltage, power dissipation, and thermal management to ensure long-term reliability. Follow standard handling and soldering practices for power semiconductor devices to avoid damage from excessive temperature or electrostatic discharge. This TIP120 5A 60V Silicon NPN Power Transistor provides a straightforward option for applications requiring the specified current and voltage characteristics.
