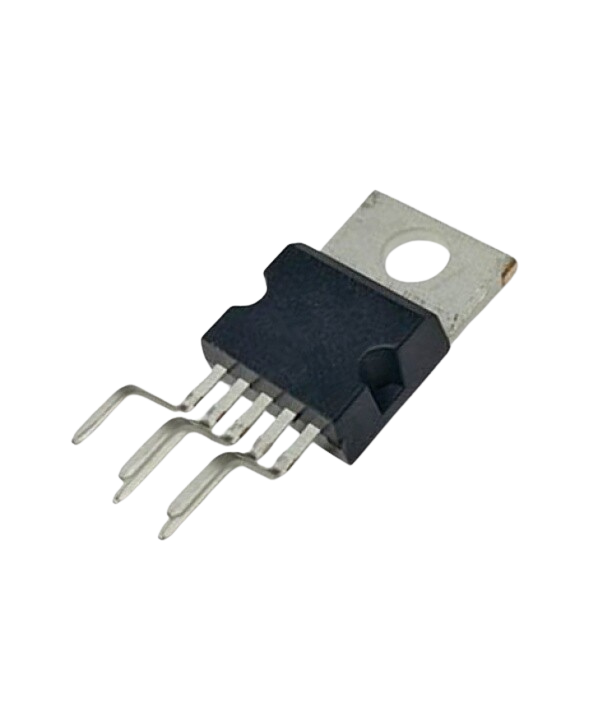

TDA8135 monolithic dual positive voltage regulator 5.1V 600mA منظم جهد

The TDA8135 monolithic dual positive voltage regulator provides a fixed 5.1V regulated output in a compact single-chip solution. Designed for applications that require stable positive supply rails, this dual regulator integrates control circuitry to simplify design and reduce the count of external components.

Key characteristics include a fixed 5.1V output and a rated current capacity of 600mA. The device is suitable for supplying logic circuits, sensors, small analog stages, and other low-voltage subsystems where a reliable 5.1V rail is needed. As a monolithic integrated regulator, it offers predictable regulation behavior and compact board real estate compared with discrete solutions.

For proper operation and long-term reliability, observe general regulator design practices: provide adequate input bypassing with a low-ESR capacitor close to the device input, place an output capacitor recommended by system requirements to ensure stability and transient response, and consider thermal management such as copper area or a heatsink if operating near maximum rated current or in elevated ambient temperature. Ensure correct pin connections and follow safe handling to avoid damage from electrostatic discharge.

This product is supplied for electronic design and repair where a fixed 5.1V dual positive regulator with 600mA rating is required.
