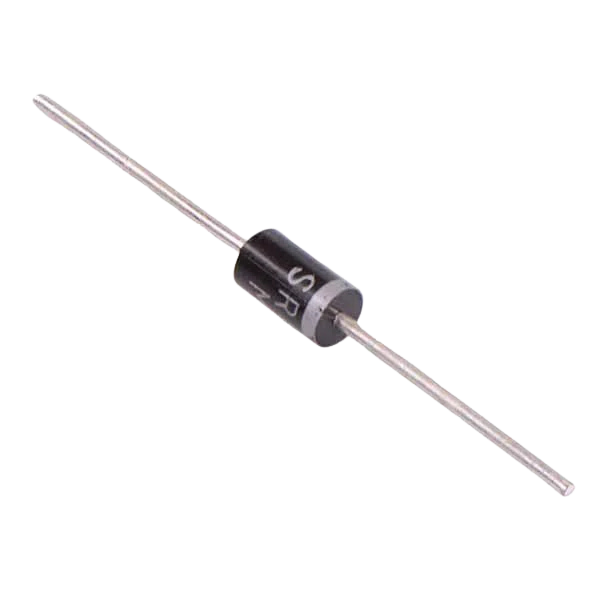

SR5100 Schottky Barrier Rectifier Diode 5A 100V

The SR5100 Schottky Barrier Rectifier Diode 5A 100V is a compact power diode designed for rectification and protection tasks in electronic circuits. As a Schottky barrier device, it offers the characteristic low forward voltage drop and rapid switching behavior common to this diode family, making it suitable for applications where efficiency and thermal performance are important.

This diode features a rated average forward current of 5A and a repetitive peak reverse voltage of 100V, as indicated by the model designation. It is typically used in power supplies, voltage clamping, polarity protection, and other DC rectification roles where a robust, low-loss diode is required. The device's construction minimizes recovery time and reduces switching losses compared with standard PN-junction rectifiers, which can improve overall system efficiency.

SR5100 units are available in industry-standard packages for easy PCB mounting and integration into existing designs. When selecting a component for a specific application, consider the complete datasheet parameters such as thermal resistance, maximum junction temperature, surge current capability, and package details to ensure the diode meets system-level reliability and safety requirements.
