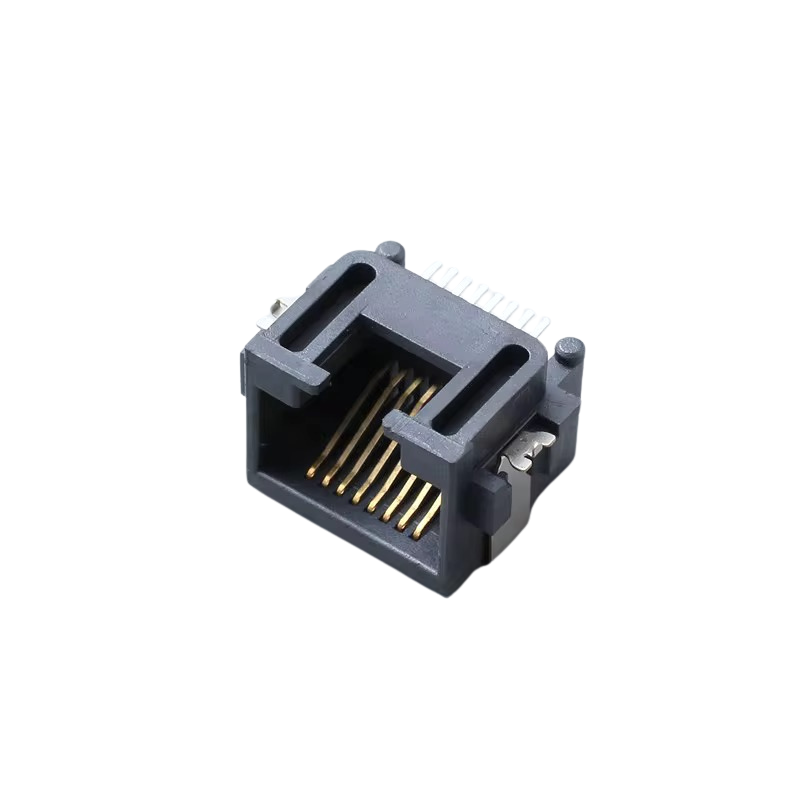

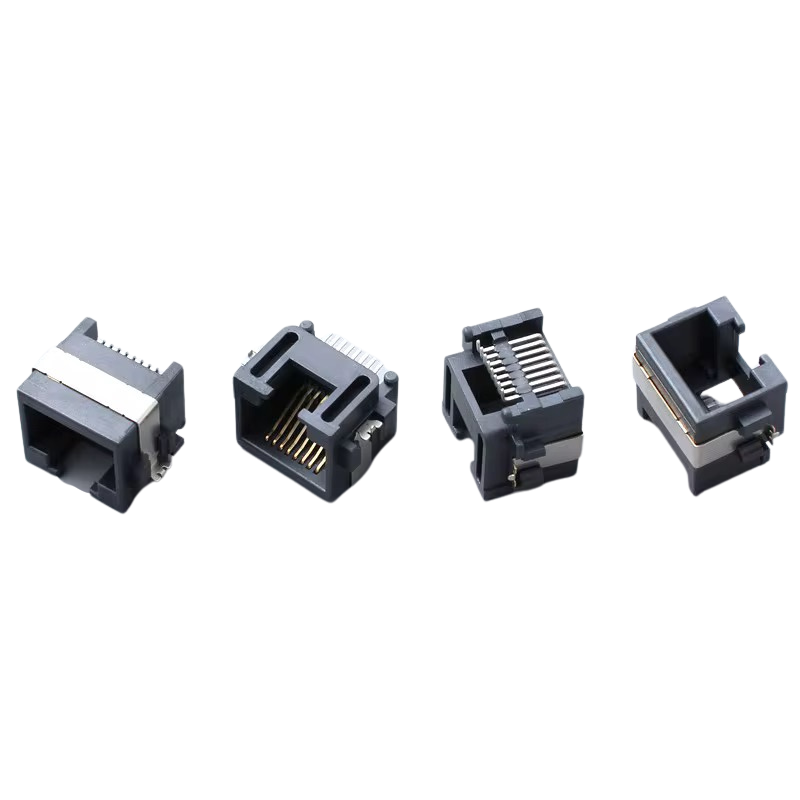

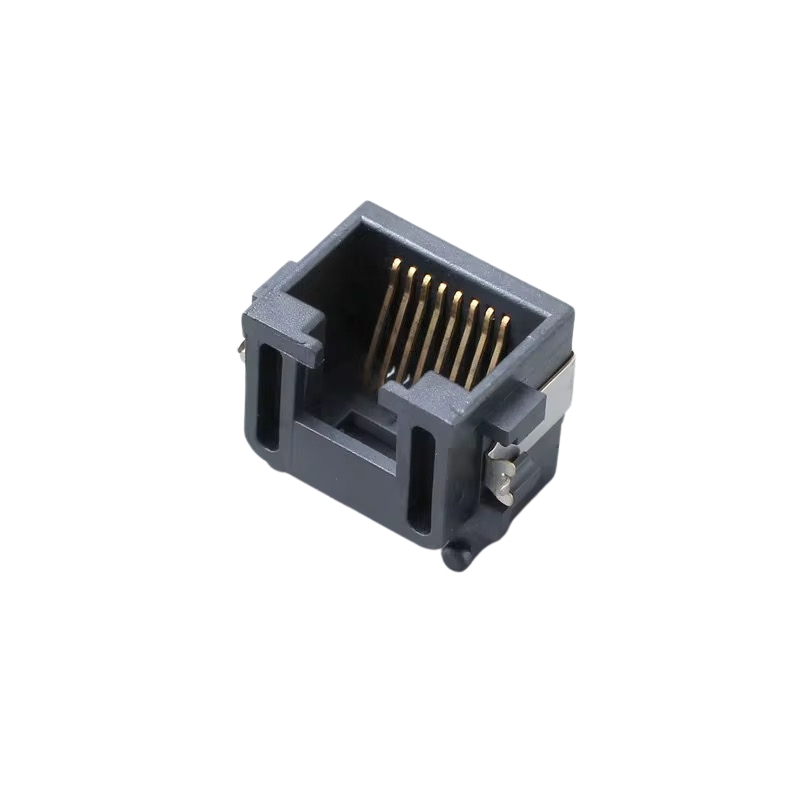

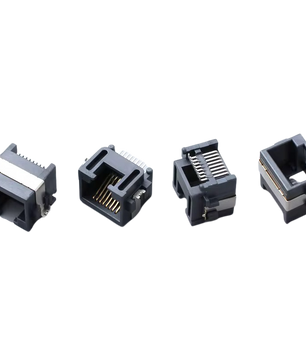

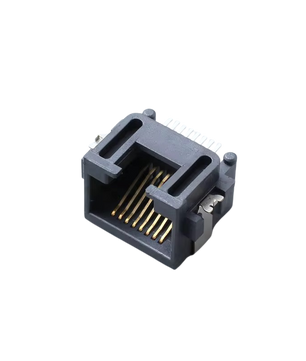

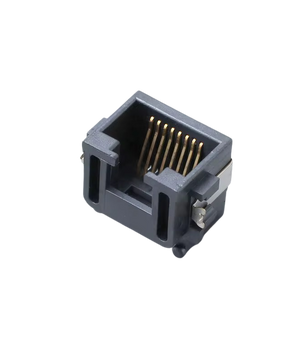

SMT RJ45 8P8C Network Connector

The SMT RJ45 8P8C Network Connector is a surface-mount Ethernet interface component designed to provide a compact, board-mounted port for twisted-pair network cabling. Commonly used where space savings and reliable data connectivity are required, this style of connector accommodates standard 8-position, 8-contact (8P8C) modular plugs and integrates directly onto printed circuit boards using surface-mount technology. Engineered for straightforward PCB integration, SMT RJ45 8P8C connectors streamline automated assembly and reflow soldering processes. Their board-level footprint reduces enclosure penetration and simplifies mechanical design compared with through-hole alternatives. Typical design considerations include pad layout, solder fillet formation, and mechanical retention to withstand insertion cycles and cable handling during product use and servicing. These connectors are used across a wide range of electronic equipment including network switches, routers, media converters, industrial controllers, telecommunications appliances, and embedded Ethernet-enabled devices. They enable reliable signal transmission for data networks and are compatible with standard Ethernet twisted-pair wiring and modular plugs. When selecting an SMT RJ45 8P8C Network Connector, assess mechanical durability, contact plating options, mating cycle ratings, and compatibility with board stack-up and enclosure design. Proper footprint design, solder process control, and mechanical support will help ensure consistent electrical performance and long-term reliability in the finished assembly.
