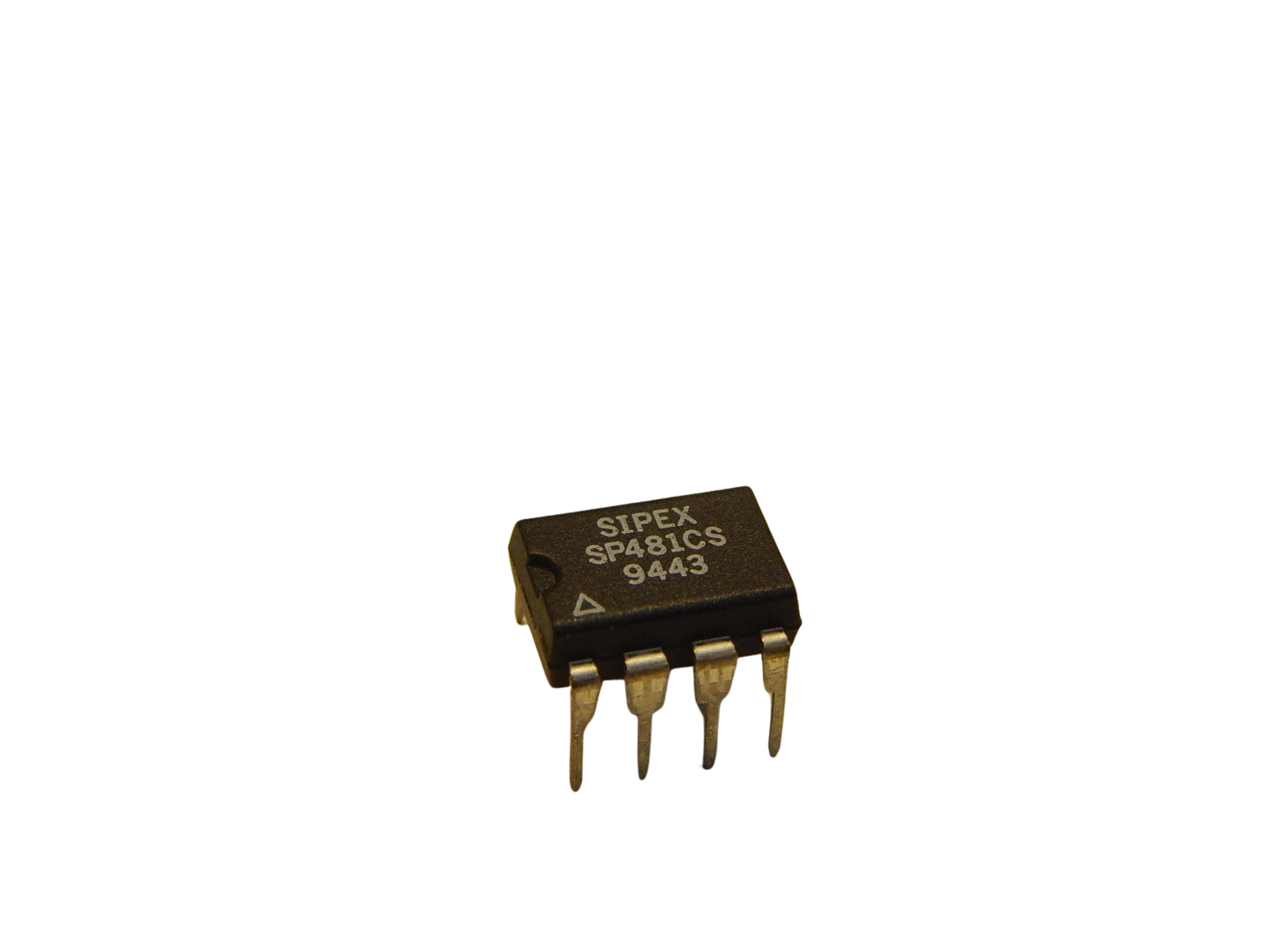

SIPEX SP481CS Low Power Half-Duplex RS-485 Transceivers IC

The SIPEX SP481CS Low Power Half-Duplex RS-485 Transceivers IC is a compact communication interface solution designed for differential, multipoint serial buses. Engineered for low standby and active power consumption, this half-duplex transceiver facilitates reliable, noise-immune data exchange over balanced twisted-pair media and is suitable for systems where energy efficiency and robust signaling are priorities.

Key functional characteristics include a half-duplex driver/receiver pair that implements the RS-485 electrical interface, differential signalling for improved common-mode noise rejection, and simplified master/slave bus topologies. The transceiver is intended to interface directly with standard logic-level microcontrollers and UART peripherals, enabling straightforward integration into embedded designs.

Typical system-level benefits are:

• Low power operation to extend battery life or reduce thermal load in dense assemblies.
• Resilience to industrial electrical noise through differential transmission and receiver thresholds compatible with RS-485 networks.
• Support for multipoint networks and multi-drop topologies used in distributed control and monitoring.
• Simplified PCB integration with standard external termination and biasing components to ensure bus idle state and signal integrity.

Common application areas include industrial automation, building and HVAC control, energy and utility metering, sensor networks, and instrumentation where long-reach, multi-node serial communications are required. Designers should follow RS-485 best practices for bus termination, biasing, and layout to achieve optimum performance with the SP481CS transceiver.
