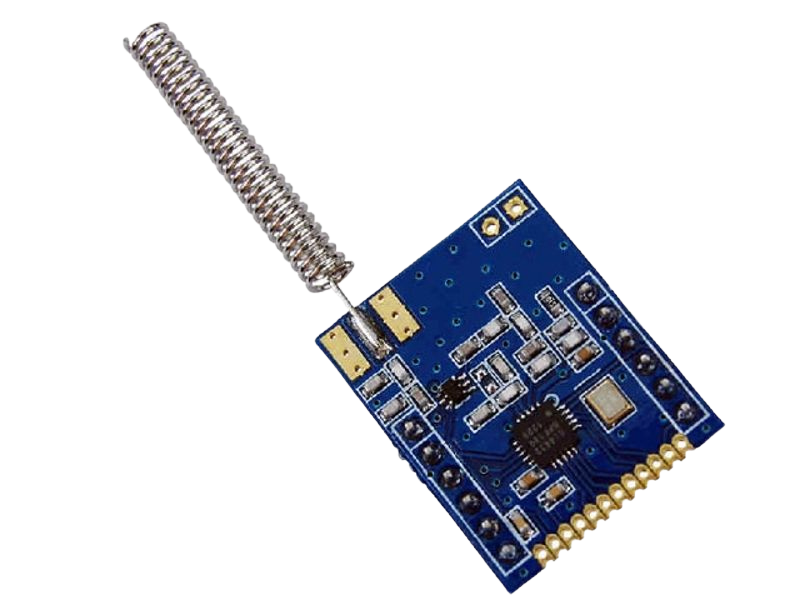

Si4432 Wireless Transceiver 1000M 433Mhz مرسل و مستقبل لاسلكي

The Si4432 Wireless Transceiver 1000M 433MHz is a highly integrated module engineered for low power consumption and reliable long-range communication within the 240–960 MHz ISM band. It combines excellent receiver sensitivity with strong output power to support robust wireless data links in varied environments.

Key characteristics include:

• 433 MHz operation suitable for standard ISM band applications.
• Receiver sensitivity to −121 dBm at 1.2 kbps for superior weak-signal reception.
• Maximum output power up to +20 dBm to extend communication distance.
• Flexible data rates from 0.123 to 256 kbps to match diverse throughput and range requirements.
• Support for FSK, GFSK, and OOK modulation enabling adaptable signal encoding schemes.

Performance and Integration

Built on Silicon Labs’ EZRadioPRO technology, the Si4432 balances energy efficiency and performance. It operates from 1.8 to 3.6 V, making it compatible with many battery-powered systems, and includes a 64-byte FIFO buffer to streamline packet handling and reduce host overhead. These attributes help maintain signal integrity and mitigate interference in challenging RF conditions.

The module’s combination of high sensitivity, configurable data rates, multiple modulation options, and significant output power makes it suitable for applications that require reliable, long-range wireless links while preserving battery life and simplifying integration into embedded designs.
