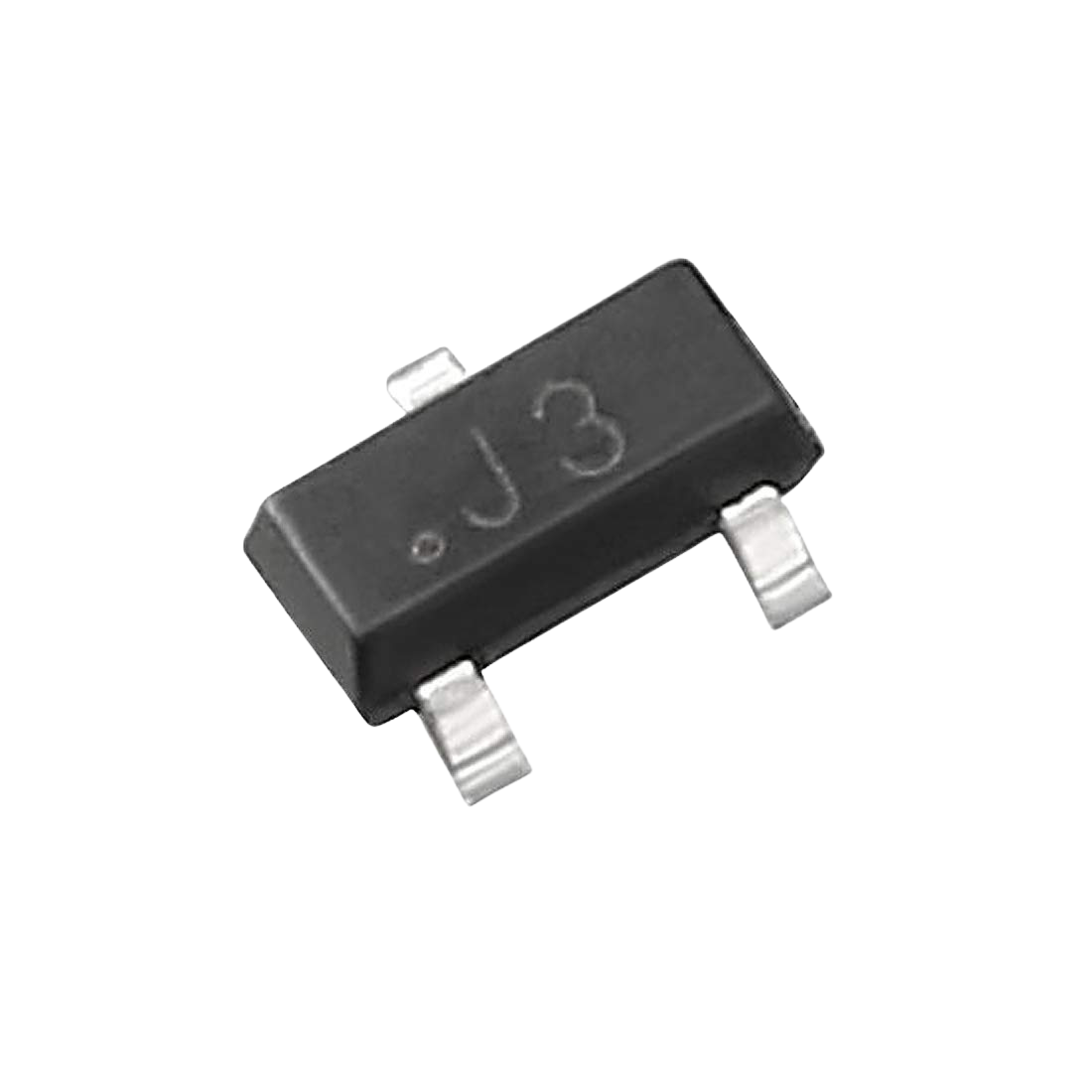

S9013 J3 500mA 5V NPN Transistor SMD

The S9013 J3 500mA 5V NPN Transistor SMD is a compact surface-mount NPN switching transistor designed for general-purpose electronic applications where small size and reliable switching are required. This component supports nominal operation at low voltages and is suitable for use in signal amplification, switching, and driver circuits in consumer electronics, communication devices, and embedded systems.

Key operational attributes indicated in the product name include a 500mA collector current rating and a 5V nominal voltage environment, offering a practical solution for low-voltage switching tasks. As an NPN device, it is commonly used in configurations where the transistor switches current from the collector to the emitter when a sufficient base drive is applied. The surface-mount package makes it appropriate for automated PCB assembly and high-density board layouts.

Designers can integrate this transistor into driver stages for relays, LEDs, and small motors, as well as use it in signal-level amplification and level-shifting circuits that operate within its specified current and voltage envelope. Standard soldering and handling precautions for SMD semiconductors should be followed to preserve device reliability during assembly and operation.

This product is suitable for engineers and technicians seeking a straightforward, space-saving NPN transistor option for low-voltage electronic designs.
