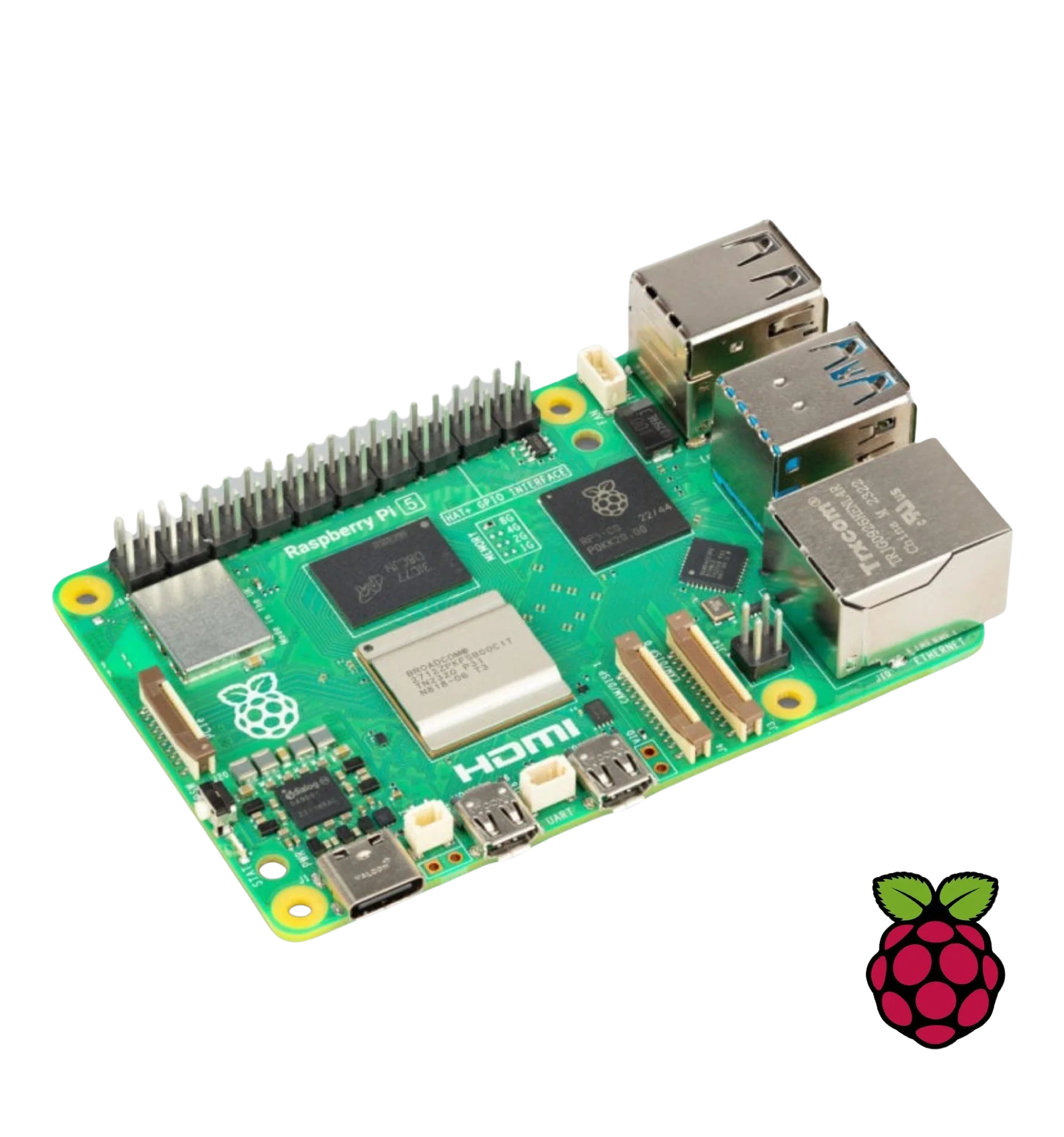

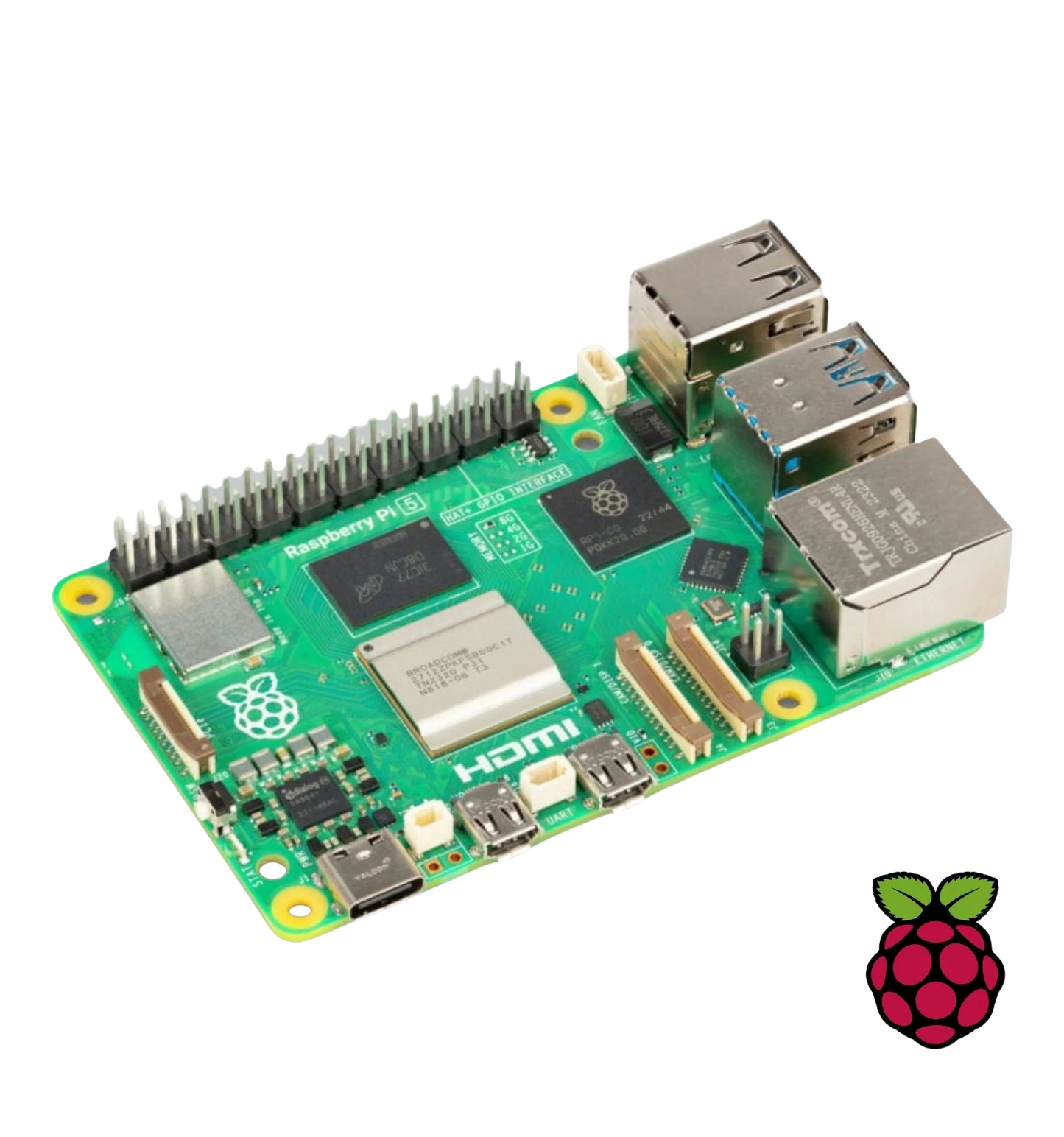

Raspberry Pi 5 Model B 4GB Board

The Raspberry Pi 5 Model B 4GB Board is a compact, high-performance single-board computer designed for advanced hobbyist, educational and embedded applications. It combines a 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with a VideoCore VII GPU, delivering improved compute and graphics performance for demanding tasks including multimedia playback, development and prototyping.

Key specifications

• 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU.
• VideoCore VII GPU with support for OpenGL ES 3.1 and Vulkan 1.2.
• Dual 4Kp60 HDMI® output with HDR support and HEVC decoder.
• LPDDR4X-4267 SDRAM, 4GB configuration.
• Dual-band 802.11ac Wi‑Fi and Bluetooth 5.0 / BLE connectivity.
• microSD card slot supporting high-speed SDR104 mode for storage and OS boot.
• PCIe 2.0 x1 interface for high-speed peripherals (adapter required).
• Four USB ports: two USB 3.0 (5 Gbps) and two USB 2.0.
• Gigabit Ethernet; PoE+ functionality available via separate PoE+ HAT.
• Two 4-lane MIPI connectors for camera and display modules.
• 5V/5A DC power supplied via USB-C with Power Delivery support.
• Standard 40-pin GPIO header for hardware expansion and prototyping.
• Real-time clock (RTC) with external battery support for timekeeping.

This board is suitable for applications that require multi‑core processing, accelerated graphics, multiple high-resolution displays, and flexible peripheral connectivity. It maintains the Raspberry Pi standard GPIO and expansion interfaces to integrate with existing HATs and accessories while offering increased performance and modern I/O options.
