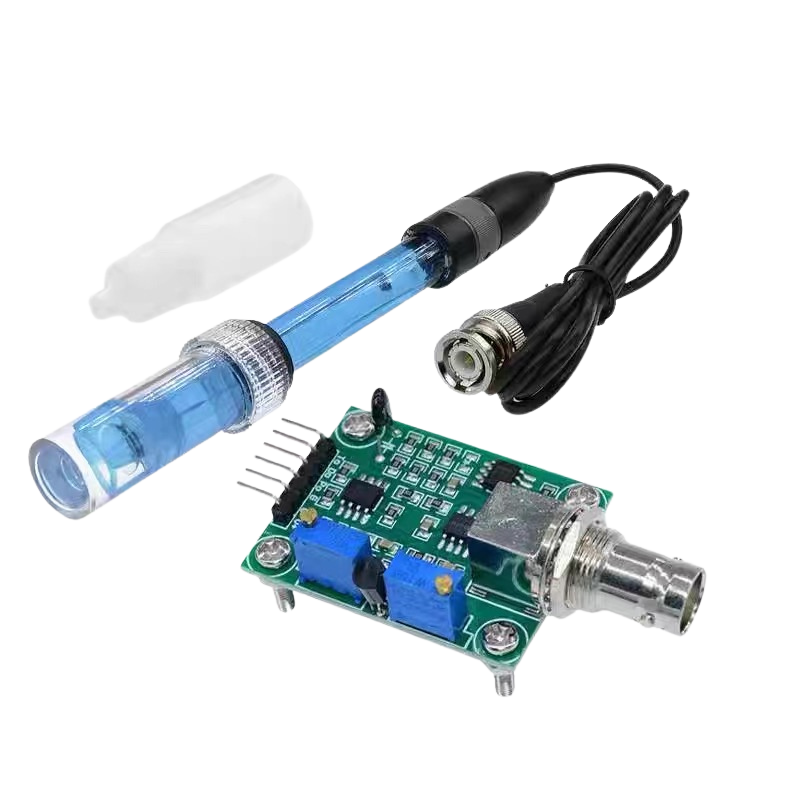

PH Electrode Sensor PH 0-14 Value Detection Monitoring Control Board مستشعر الرقم الهيدروجيني التناظري

PH Electrode Sensor PH 0-14 Value Detection Monitoring Control Board Meter BNC PH Probe

Features:
Heating voltage: 5 plusmn 0.2V (AC middot DC)
Working current: 5-10mA
Detectable concentration range: PH0-14
Detection Temperature range: 0-80 ℃
Response time: le5S
Settling Time: le60S
Component Power: le0.5W
Working temperature: -10 ~ 50 ℃ (nominal temperature 20 ℃)
Humidity: 95% RH (nominal humidity 65% RH)
Module Size: 42mm times 32mm times 20mm
Output: analog voltage signal output
With 4pcs M3 Mounting Holes
