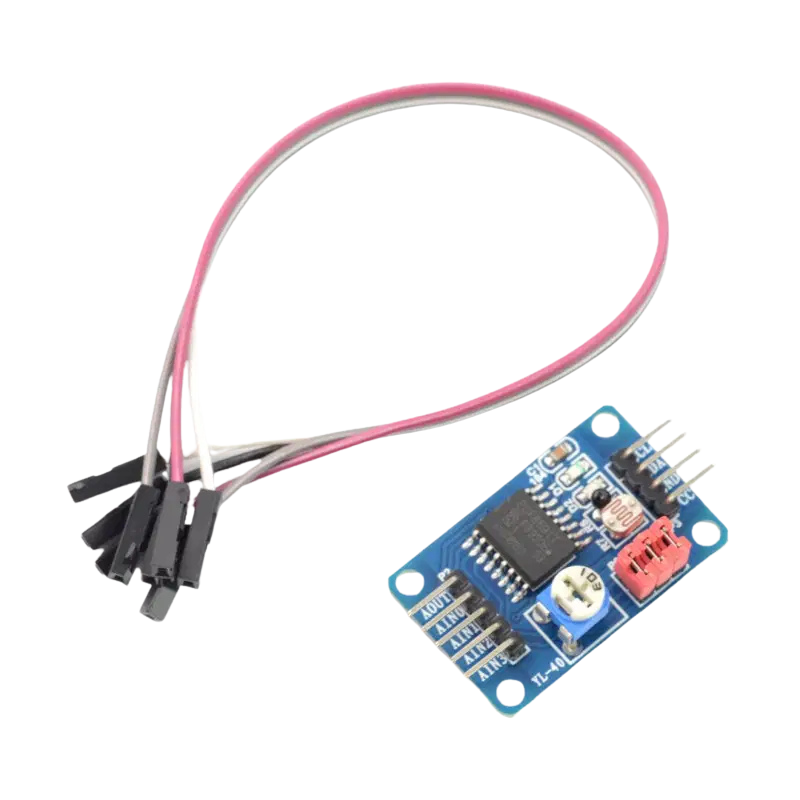

PCF8591 A/D And D/A Converter 8-bit Analog Digital Converter

The PCF8591 is a versatile 8-bit analog-to-digital and digital-to-analog converter designed for precise signal processing in embedded systems. It combines A/D and D/A functionality in a compact footprint, reducing component count and design complexity for multi-sensor and control applications.

• 8-bit resolution for analog-to-digital conversion, enabling consistent measurement of input signals.
• Four analog input channels to support multiple sensors or signal sources.
• Single analog output channel for digital-to-analog conversion used in control or feedback loops.
• I2C interface for simplified communication with microcontrollers and minimal wiring.
• Supports a wide power supply range for compatibility with various embedded platforms.

Compared with single-function converters, the PCF8591’s integration of both A/D and D/A conversion provides design efficiency and reduced PCB space. Its internal architecture and I2C communication ensure stable data exchange at standard bus speeds, making it suitable for real-time and multi-channel signal acquisition tasks where 8-bit performance meets application requirements.
