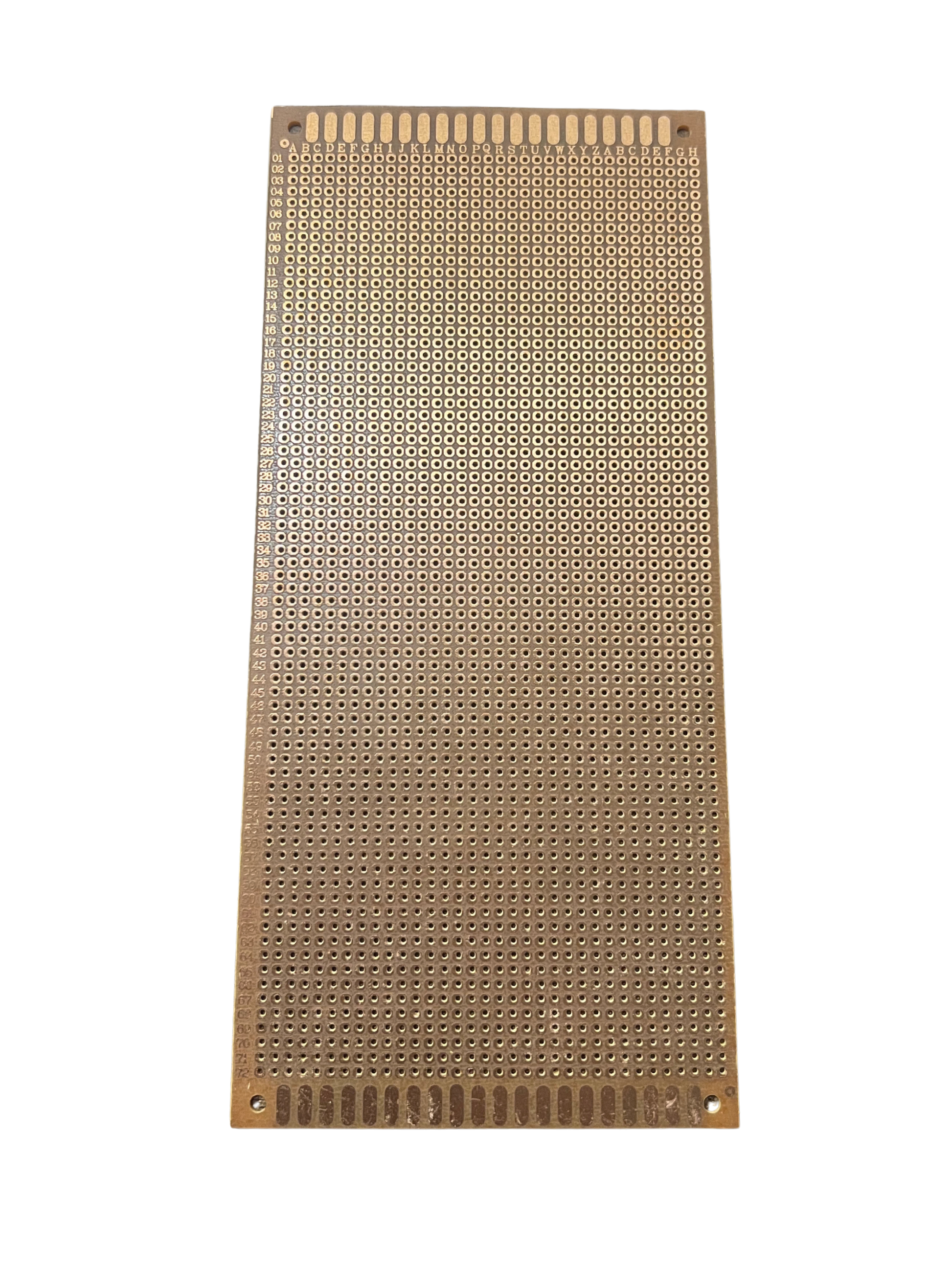

PCB Single Side 9*20cm لوحة لحام

This single-sided printed circuit board measures 9 by 20 centimeters and is designed for efficient, reliable soldering projects. Its precise dimensions ensure compatibility with a wide range of electronic applications while maintaining structural integrity for durability.

• Measuring 9 x 20 cm, the board offers ample space for diverse circuit layouts.
• Features a single copper layer optimized for straightforward soldering tasks.
• Constructed with high-quality fiberglass material for enhanced rigidity and heat resistance.
• Provides standard hole spacing to accommodate common electronic components seamlessly.
• Surface finish designed for excellent solderability and long-lasting connections.

Compared to typical industry boards, this PCB stands out due to its balanced size and material quality, making it suitable for both hobbyists and professionals. Its single-sided design simplifies assembly without sacrificing performance, offering a practical alternative to double-sided options while maintaining reliable electrical conduction.

Design and Manufacturing Quality

The board is produced using manufacturing techniques that ensure uniform copper layering and precise hole placement, contributing to consistent electrical performance and durability. The fiberglass substrate resists warping and thermal stress, allowing for stable operation under varying conditions. These attributes support dependable solder joints and stable mechanical support for mounted components. Overall, this PCB provides a reliable platform for prototyping, small production runs, and repair work where a single copper layer meets project requirements.
