NPCE288 NPCE388 PCB Board for RT809F RT809H Programmer أدابتر مبرمجة

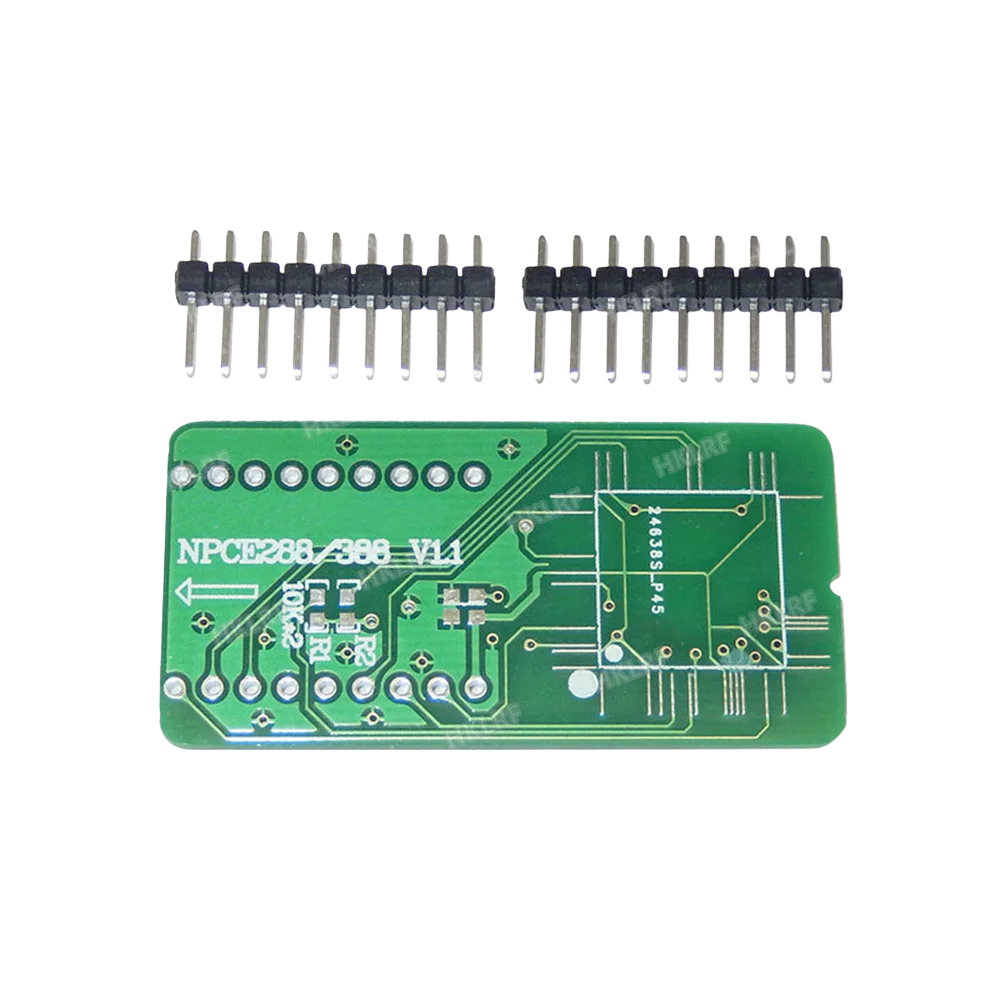

The NPCE288 / NPCE388 PCB Board is an adapter board designed for use with RT809F and RT809H programmers. It provides a reliable platform to connect target chips to the programmer for firmware reading, writing, and verification. The board preserves the original product name and mounting references to ensure clear identification and compatibility when used with supported programming equipment.

Engineered for straightforward installation, this PCB features clearly labeled pin headers and contact points that align with common programmer pinouts. The layout reduces the risk of miswiring and facilitates quick connection of target devices, improving workflow efficiency during development, repair, or production programming tasks. Robust solder pads and plated through-holes provide durable contacts for repeated use.

Electrical traces and grounding practices on the PCB follow standard design approaches to maintain signal integrity during programming sessions. The board accommodates a range of package interfaces commonly encountered in embedded systems, enabling flexible use across multiple device types without requiring extensive reconfiguration. Its compact form factor makes it suitable for bench use and integration into existing test setups.

This adapter board is intended for users familiar with chip programming and test procedures and should be used with the appropriate RT809F or RT809H programmer and compatible software. Follow the programmer manufacturer’s instructions for safe connection and operation to avoid damage to the programmer or target device.
