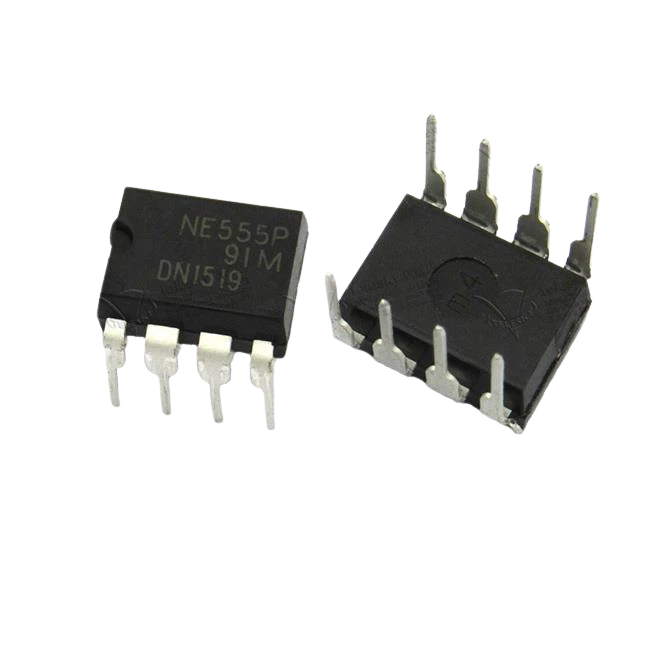

NE555P Timer IC

The NE555P Timer IC is a versatile integrated circuit engineered to generate precise timing delays or oscillations for a wide range of electronic applications. Renowned for its reliability and straightforward operation, the NE555P is widely used by hobbyists, educators, and professional designers for timing control tasks.

• Standard 8-pin DIP package for convenient insertion on breadboards and through-hole PCBs.
• Wide operating voltage range (4.5V to 16V) to accommodate diverse power supply options.
• Timing intervals adjustable from microseconds to hours to support both short-pulse and long-delay requirements.
• Low supply current (~10mA) suitable for many battery-powered applications.
• Operates across 0°C to 70°C for reliable use in common ambient conditions.

The NE555P implements a stable voltage reference and comparator network to maintain consistent timing accuracy. Its flexible architecture supports monostable, astable, and bistable configurations, making it adaptable for pulse generation, frequency synthesis, debounce circuits, LED flashers, tone generators, and timing delays. Enhanced noise immunity and robust internal construction contribute to dependable operation in varied electrical environments.

With broad availability and proven performance, the NE555P remains a standard choice for designers updating legacy circuits or creating new timing solutions.
