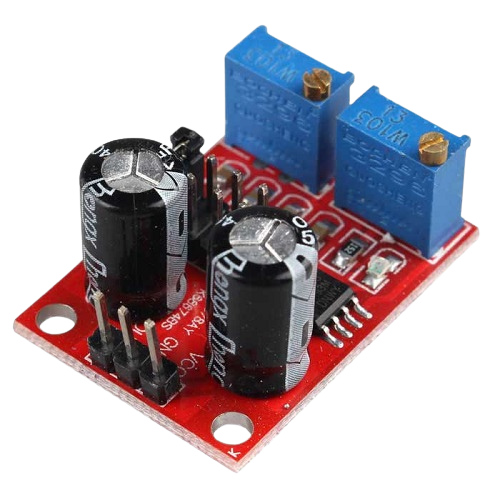

NE555 Pulse Frequency Duty Cycle Adjustable Module
LD 7.000
سعر البيع
LD 7.000
سعر الطبيعي
انتقل إلى معلومات المنتج
1, Size: 3.1CM * 2.2CM
1, the main chip: NE555;
2, Input voltage: 5V-15VDC. 5V power supply, the output current can 15MA around; 12V power supply, the output current can 35MA around;
NE555 Pulse Frequency Duty Cycle Adjustable Module
LD 7.000
سعر البيع
LD 7.000
سعر الطبيعي
Description:
1, Size: 3.1CM * 2.2CM
1, the main chip: NE555;
2, Input voltage: 5V-15VDC. 5V power supply, the output current can 15MA around; 12V power supply, the output current can 35MA around;
3, the input current: 100MA
4, the output amplitude: 4.2V V-PP to 11.4V V-PP. (Different depending on the input voltage, the output amplitude will be different)
5, the maximum output current: 15MA (5V power supply, V-PP greater than 50%), 35MA (12V power supply, V-PP greater than 50%)
4, the output amplitude: 4.2V V-PP to 11.4V V-PP. (Different depending on the input voltage, the output amplitude will be different)
5, the maximum output current: 15MA (5V power supply, V-PP greater than 50%), 35MA (12V power supply, V-PP greater than 50%)
