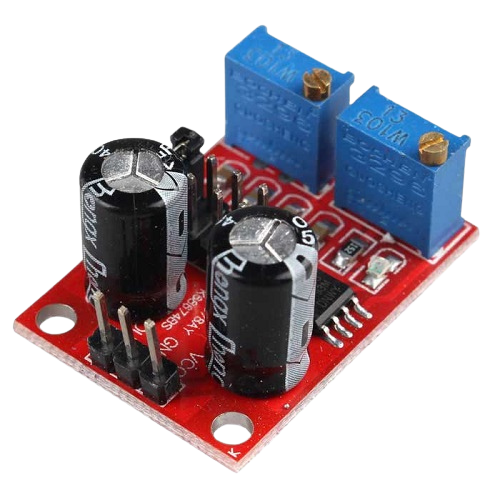

NE555 Pulse Frequency Duty Cycle Adjustable Module

Description:

This compact NE555 Pulse Frequency Duty Cycle Adjustable Module provides a simple, board-level solution for generating adjustable pulse signals. The module measures 3.1CM × 2.2CM and is built around the NE555 timer IC to allow user adjustment of both pulse frequency and duty cycle from a single small board.

Electrical specifications:

• Main chip: NE555.
• Input voltage: 5V–15V DC. When powered at 5V the approximate output current is 15 mA; when powered at 12V the approximate output current is 35 mA.
• Input current: 100 mA.
• Output amplitude: approximately 4.2 V V-PP to 11.4 V V-PP, varying with input voltage.
• Maximum output current: 15 mA at 5V supply (V-PP greater than 50%), 35 mA at 12V supply (V-PP greater than 50%).

The module delivers a TTL-like pulse whose amplitude and output current depend on the selected supply voltage and the board adjustments. Its small footprint makes it convenient for breadboard use, embedded experiments, bench testing, and educational demonstrations where an adjustable pulse source is required.

Installation and use require an appropriate DC supply within the specified 5V–15V range and attention to the module's output current limits to avoid overloading the device or connected circuits.
