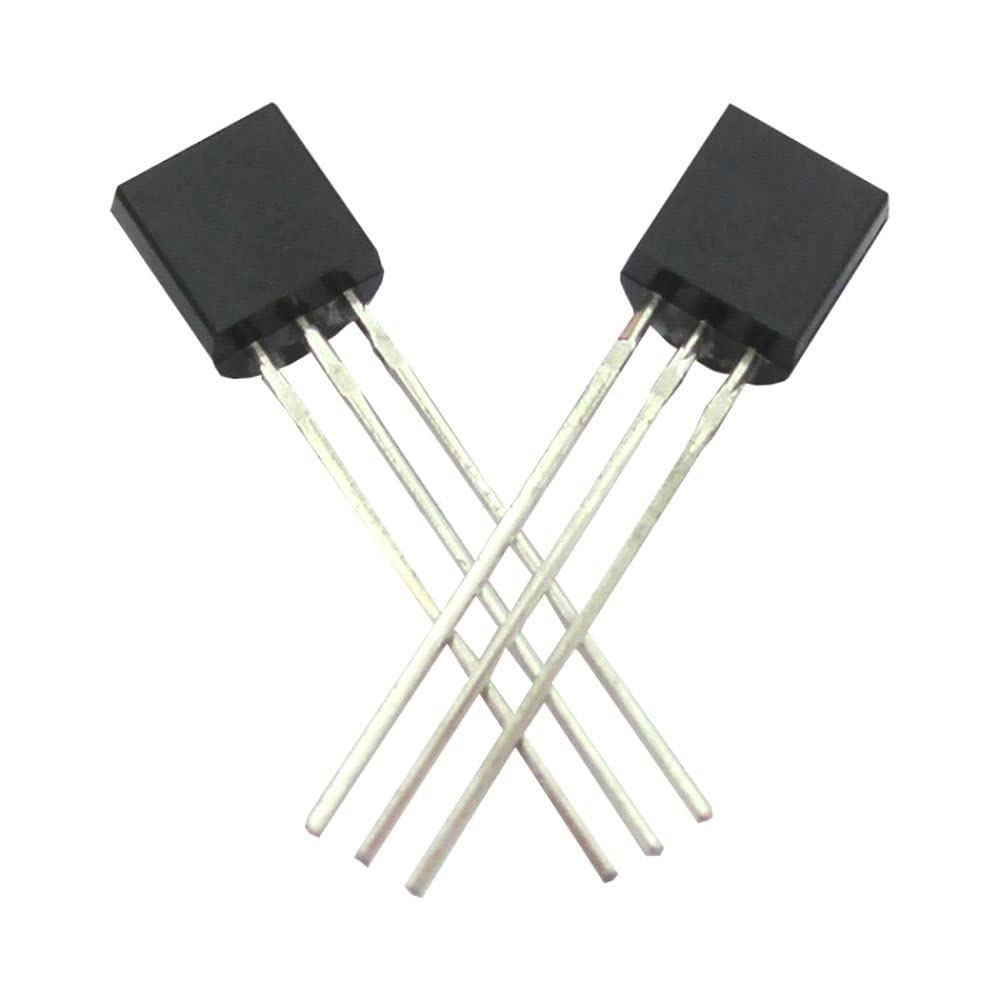

MSPA44 NPN 0.3A 400V Transistor

Overview: The MSPA44 NPN 0.3A 400V Transistor is a discrete bipolar junction transistor identified by its designation and rated electrical limits shown in the product name. It is intended for applications requiring switching or amplification where a high collector–emitter voltage and modest continuous collector current are needed. The device is specified for a maximum collector current of 0.3 A and a maximum collector–emitter voltage of 400 V as indicated by the model label. Key characteristics and considerations: Polarity: NPN bipolar junction transistor suitable for standard NPN configurations. Electrical limits: Marked ratings in the product title indicate a 0.3 A collector current capability and a 400 V collector–emitter voltage maximum under specified conditions. Typical functions: Commonly used for switching high-voltage loads, line-level signal amplification, and other circuits where an NPN device with these voltage and current ratings is appropriate. Thermal and power handling: Thermal performance depends on package, mounting, and heat-sinking; ensure appropriate thermal management when operating near rated limits. Handling and selection notes: Confirm package type, pinout, gain (hFE), maximum power dissipation, safe operating area, and transient limits with the manufacturer's datasheet before design or replacement. Observe standard electrostatic discharge precautions when handling semiconductor devices. Verify polarity and orientation during PCB assembly or replacement to prevent device damage. Compatibility and testing: Match the MSPA44 to your circuit requirements by checking dynamic characteristics such as switching times and frequency response if used in high-speed or precision circuits. For reliable performance, validate the transistor under expected operating conditions.
