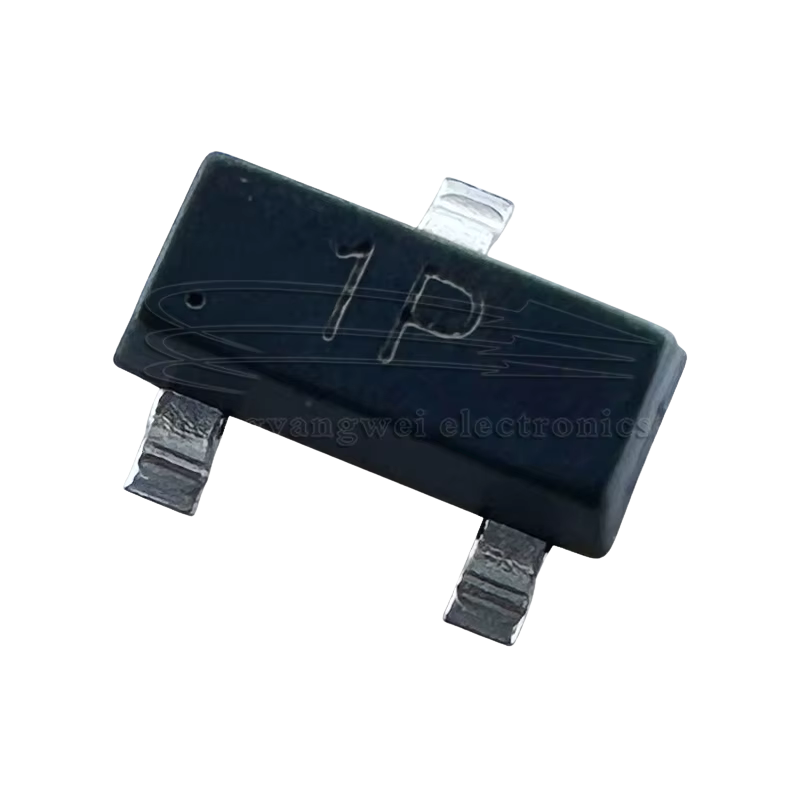

MMBT2222A 2N2222 1P 600mA 40V NPN SOT-23 SMD Transistor

The MMBT2222A 2N2222 1P 600mA 40V NPN SOT-23 SMD Transistor is a compact, surface-mount transistor designed for general-purpose switching and amplification in space-constrained PCB layouts. Packaged in a SOT-23 SMD case, this transistor provides the familiar 2N2222 NPN topology in a modern, low-profile surface-mount form factor ideal for automated assembly.

Key attributes specified in the part name include a 600mA collector current rating and a 40V collector-emitter voltage rating, making the device suitable for a wide range of low-power switching tasks and signal-level amplification where those limits are appropriate. The single-piece (1P) configuration simplifies inventory and placement for designs that require discrete NPN transistors in large quantities.

Engineers commonly choose the MMBT2222A 2N2222 in SOT-23 for tasks such as driving relays, LEDs, small motors, and solenoids within its current and voltage ratings, as well as for common-emitter amplifier stages and level-shifting functions. Its SMD package reduces board footprint and supports automated pick-and-place manufacturing, while maintaining compatibility with the electrical characteristics implied by the 2N2222 designation and the ratings shown in the product name.

When integrating this transistor, verify that the application's maximum collector current and voltage do not exceed the 600mA and 40V ratings indicated in the part title, and consider appropriate base drive, thermal management, and PCB layout practices to ensure reliable operation within those limits.
