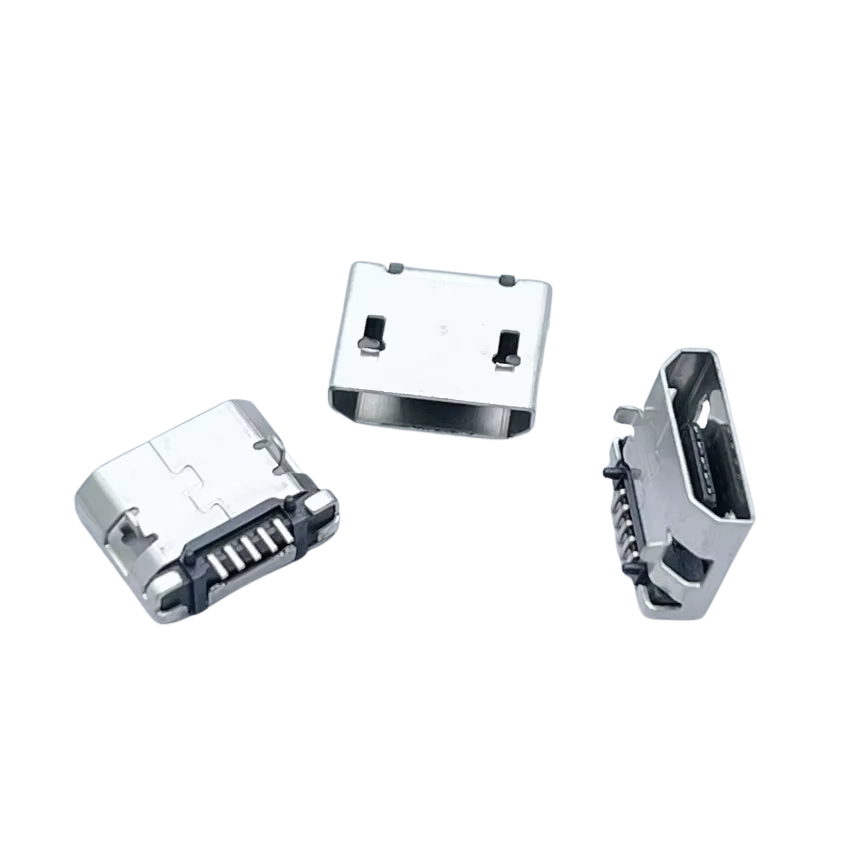

Micro USB 5Pin 5.9mm Jack Connector

The Micro USB 5Pin 5.9mm Jack Connector is a compact, board-mount electrical connector designed to provide a reliable interface for devices that use a five-pin micro USB connection. Its 5.9mm jack footprint accommodates a secure mating with compatible plugs while minimizing the PCB space required for external connections.

Engineered for durability and consistent electrical contact, this connector is suitable for repeated insertion and removal cycles in consumer electronics, portable devices, and embedded systems. The five-pin configuration supports both power and data lines, enabling a single connector to manage charging, ground, and signal paths where applicable. Termination options are optimized for through-hole or surface mounting depending on board layout and assembly preferences.

Construction uses corrosion-resistant contact finishes and a durable insulating housing to maintain stable performance over time. Mechanical features include polarization and retention elements to prevent misalignment and accidental disconnection. The connector's compact profile helps designers reduce enclosure size while maintaining a standard interface for peripheral attachments.

Installation is straightforward for trained assemblers and can be integrated into automated production flows. When selecting this connector, consider board stacking, enclosure cutouts, and cable routing to ensure unobstructed access and strain relief. This Micro USB 5Pin 5.9mm Jack Connector offers a practical balance of compact form factor and functional reliability for a wide range of electronic applications.
