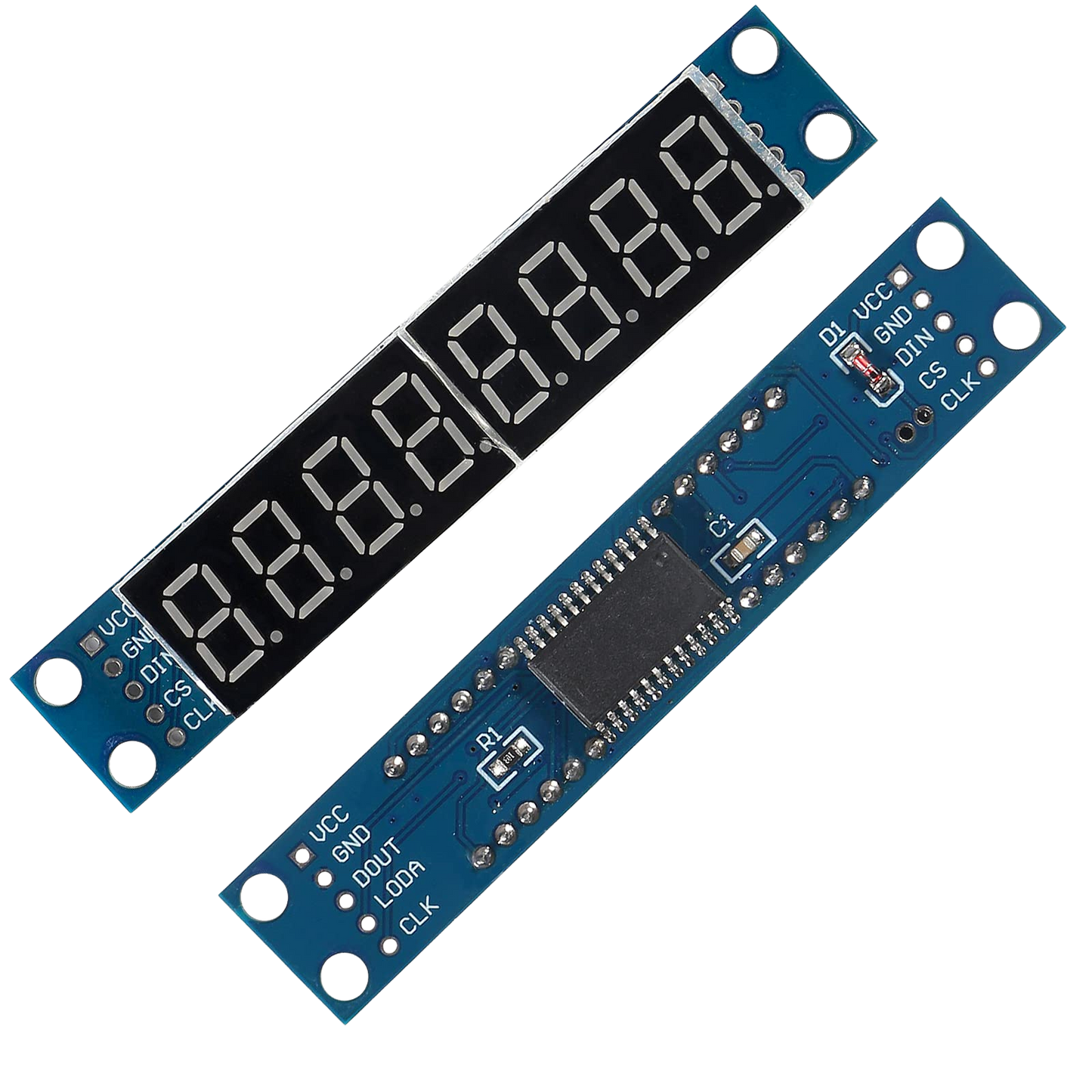

MAX7219 8-Digit 7-Segment Digital LED Display Module

The MAX7219 8-Digit 7-Segment Digital LED Display Module is a compact, ready-to-use display solution for visualizing numeric data. Driven by the MAX7219 driver IC, this module consolidates control of eight 7-segment digits into a single interface, simplifying wiring and reducing microcontroller pin usage. Its modular design makes it suitable for both prototype work and integrated projects.

Designed for clear numeric presentation, the module is commonly used for clocks, counters, timers, scoreboards, frequency displays, and instrumentation readouts. It supports multiplexed driving of the segments and includes provisions for brightness control through the driver, enabling legible viewing in a range of ambient light conditions. The layout typically includes standard pin headers for power and serial communication, allowing straightforward connection to popular development platforms.

Developers will appreciate the simplified protocol provided by the MAX7219 driver, which abstracts individual segment control into byte-level commands. This reduces the firmware complexity required to render numbers, decimal points, and basic symbols across all eight digits. The module is also well-suited to multi-module chaining for expanded digit counts while maintaining a single shared control bus.

Overall, the MAX7219 8-Digit 7-Segment Digital LED Display Module offers a reliable, space-efficient way to add numeric display capability to embedded systems and hobbyist projects.
