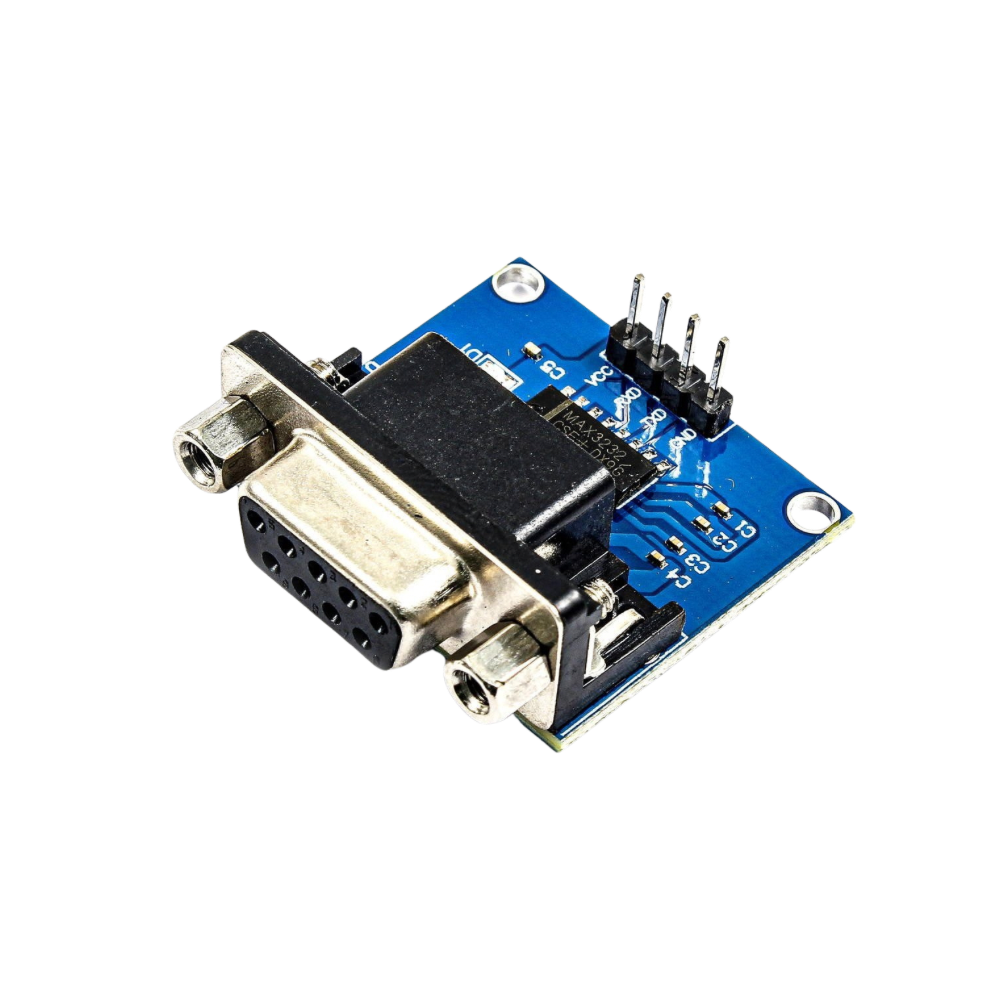

MAX3232 RS232 To TTL Serial Port Converter Module

This MAX3232 RS232 To TTL Serial Port Converter Module provides a reliable interface for converting RS-232 signaling levels to TTL/CMOS logic levels used by microcontrollers and embedded devices. The module implements the MAX3232 level translator architecture to enable bidirectional serial communication between legacy RS-232 equipment and modern TTL-level UART ports without requiring direct manual level shifting.Designed for integration into development projects and permanent installations alike, the module simplifies wiring and reduces the risk of signal damage by presenting clear TTL-level TX/RX pins on one side and RS-232-compatible pins or connector pads on the other. It is appropriate for connecting serial ports on industrial controllers, embedded systems, routers, modems, and custom electronics to microcontroller boards, single-board computers, or other TTL-based peripherals.Installation is straightforward: connect the module between the RS-232 device and the TTL serial interface, observe correct TX/RX orientation, and provide the required logic supply to the module’s VCC pin. The board’s compact footprint and standard pinout make it suitable for breadboard use, prototyping, or mounting within enclosures.Classification information included by the supplier: رقم التصنيف: 188.
