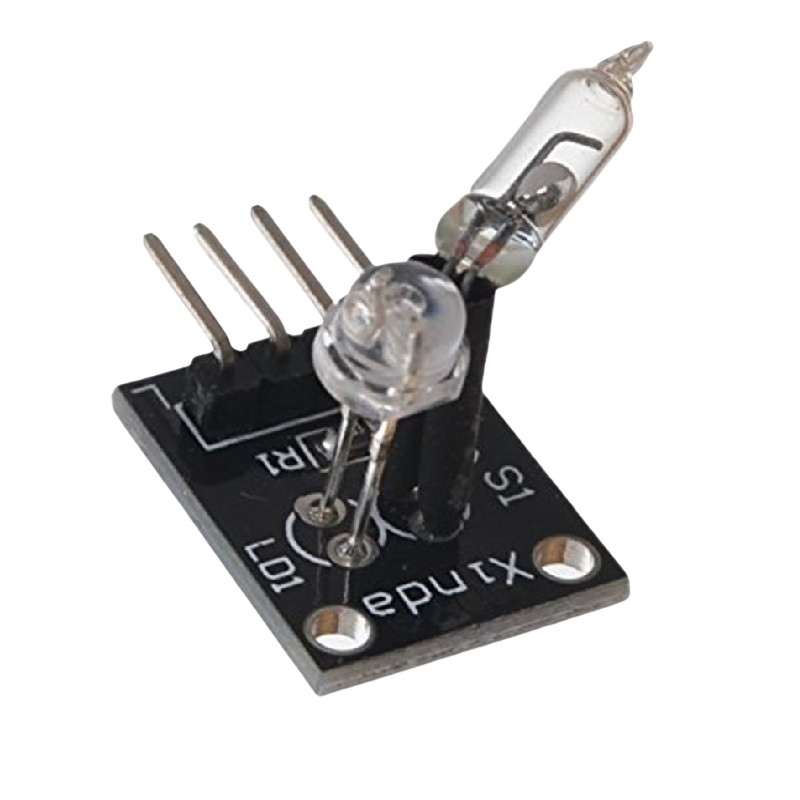

Magic Cup Tilt Switch Module

The Magic Cup Tilt Switch Module is a compact, reliable tilt sensor designed for straightforward integration into electronic projects and devices. It provides precise angle detection with minimal power consumption, making it suitable for battery-powered systems and embedded applications.

• Operating voltage: 3.3V to 5V for broad compatibility with most microcontrollers.
• Detection angle: Activates at an approximate tilt of 30 degrees for responsive control.
• Output type: Digital ON/OFF signal output that delivers clear status without analog noise.
• Response time: Under 10 milliseconds for near real-time tilt detection.
• Dimensions: Compact footprint of 20mm x 15mm x 10mm to fit space-constrained installations.

This module employs a high-quality reed switch mechanism combined with a precision magnet to ensure consistent angle detection and long operational life. The low power draw and robust digital output make the module well suited for IoT devices, portable electronics, and embedded control systems where dependable tilt monitoring is required.

Compared to standard tilt switches, the Magic Cup Tilt Switch Module offers enhanced sensitivity, faster response, and improved shock resistance, which helps simplify design and increase overall device reliability.
