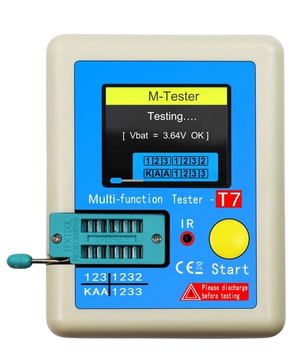

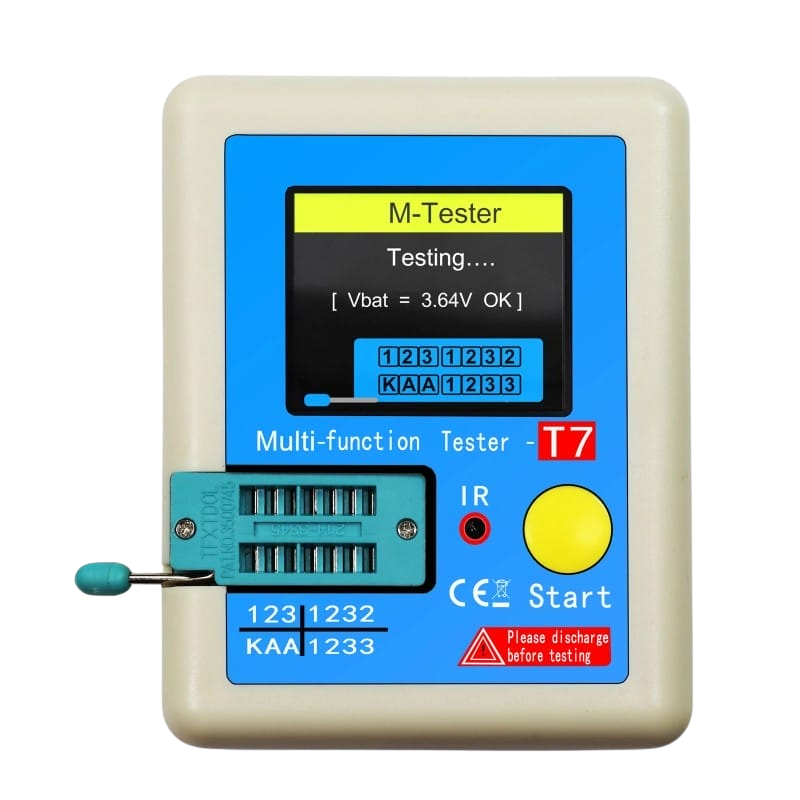

LCR-T7 Multifunction Tester

The LCR-T7 Transistor Tester is a versatile handheld device designed for electronics enthusiasts and hobbyists. It serves as an indispensable tool for testing and analyzing various electronic components, including resistors, capacitors, diodes, transistors (both NPN and PNP), and inductors. Its clear 160 x 128 pixel LCD screen provides easy-to-read measurement results, and its auto-identification feature simplifies component testing by automatically detecting and identifying component types and pin configurations.

 With its compact design and user-friendly interface, the LCR-T7 is a valuable addition to any electronics workshop, aiding in component characterization and troubleshooting tasks. Whether you're a beginner or an experienced electronics enthusiast, this tester streamlines the process of verifying and understanding your electronic components.

Key features of LCR-T7 Multifunction Tester

The LCR-T7 Multifunction Tester boasts a range of key features that make it a valuable tool for electronic enthusiasts, engineers, and technicians. Some of its prominent features include:

• Multi-Functionality: The LCR-T7 Tester is capable of measuring a wide range of electrical parameters including resistance (R), capacitance (C), inductance (L), quality factor (Q), dissipation factor (D), and equivalent series resistance (ESR). This versatility allows users to assess various electronic components with precision.
• High Accuracy: Equipped with advanced measurement technology, the LCR-T7 offers high levels of accuracy in its readings, ensuring reliable results for component analysis and evaluation.
• Wide Measurement Range: The tester supports a broad measurement range for each parameter, enabling users to analyze components spanning from small to large values of resistance, capacitance, and inductance.
• Fast and Efficient: With its quick measurement capabilities, the LCR-T7 facilitates rapid testing of components, saving time and increasing workflow efficiency.
• User-Friendly Interface: The device features an intuitive interface and easy-to-navigate controls, making it accessible to users of all skill levels. Clear displays and straightforward operation enhance usability.
• Portable Design: Compact and lightweight, the LCR-T7 Multifunction Tester is highly portable, allowing users to carry it easily to different work locations, including laboratories, workshops, and field environments.
• Built-in Test Modes: The tester may include various test modes such as automatic, manual, and semi-automatic modes, offering flexibility in testing procedures to suit different requirements and preferences.
• LCD Display: Equipped with a clear LCD display, the tester provides users with clear and concise measurement results, ensuring readability even in varying lighting conditions.
• Battery Powered: The device is powered by batteries, enhancing its portability and enabling use in locations where AC power may not be readily available.

Specifications of LCR-T7 Multifunction Tester

• Operating Voltage: 5V
• Display: 160 x 128 pixel LCD screen (TFT)
• Supported Components: Measures a wide range of electronic components, including resistors, capacitors, diodes, transistors (NPN, PNP), inductors, and more.
• Measurement Accuracy: Typically within a 1%-2% margin.
• Test Frequency: Can generate test frequencies for component analysis.
• Measurement Ranges: Vary depending on the component type.
• Auto Identification: Automatically detects and identifies component type and pin configuration.
• Battery: In-Built
• Battery Type: Rechargeable Li-ion Battery
• Sweep Range: 1MHz
• Automatic detection of Zener diode 0.01-30V
• Self-test with automatic calibration
• Support Hitachi IR coding
• IR waveform display
• Infrared receiving instruction
• One key operation
• Auto Power Off(Timeout Settable)
• IR receiver window
• Micro USB Charging Interface
• Charge indicator LED
• Dimensions: 90 x 70 x 24 mm

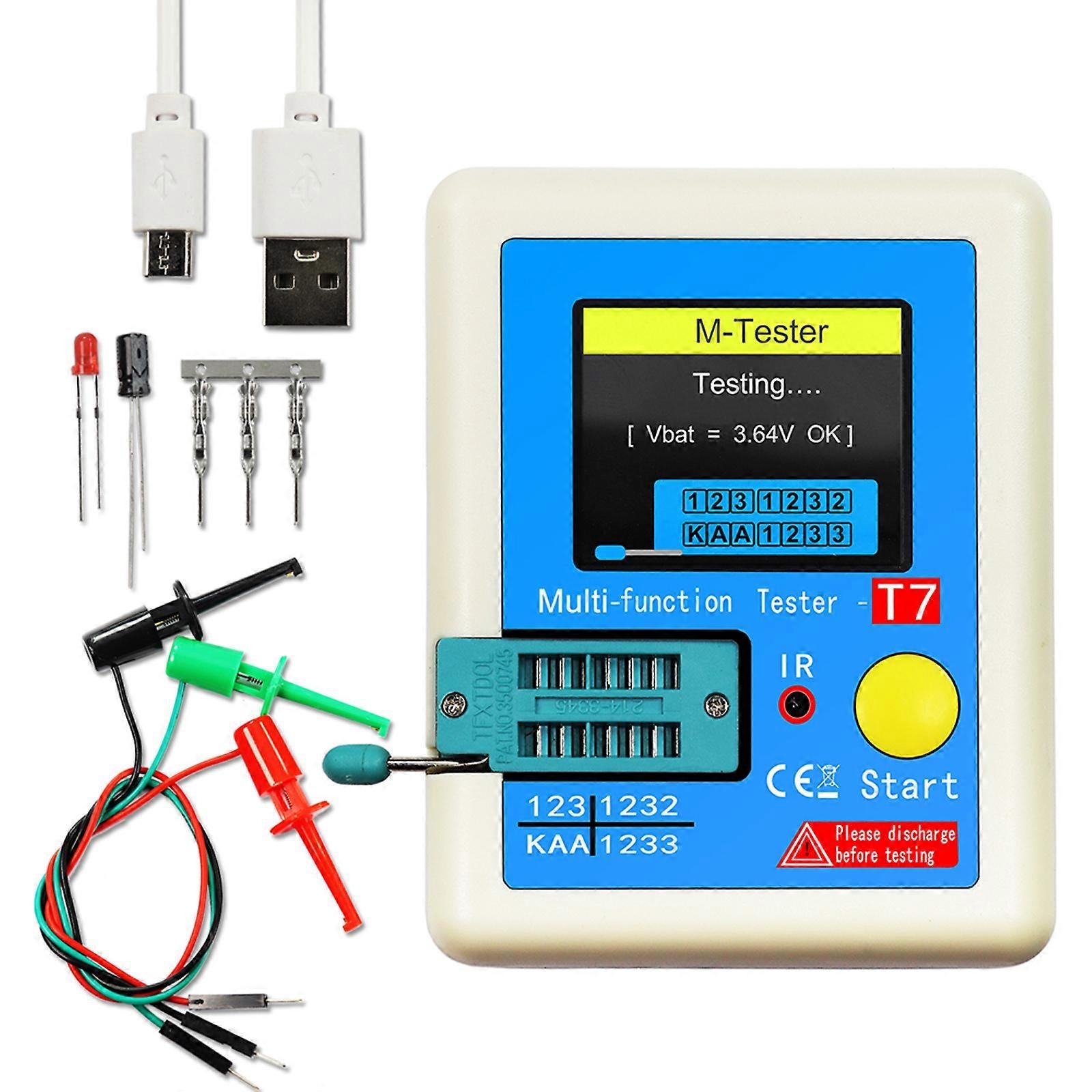

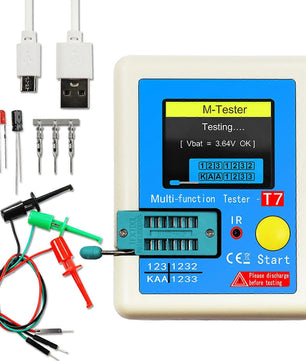

LCR-T7 Multifunction Tester Package content

LCR-T7 Multifunction Tester: The main unit, which houses the measurement circuitry, display screen, and user interface controls.

Test Leads: A pair of test leads with probes or clips for connecting the tester to the electronic components being measured are included.

Micro-USB cable for charging: A micro-USB cable for charging the battery of tester is included.
