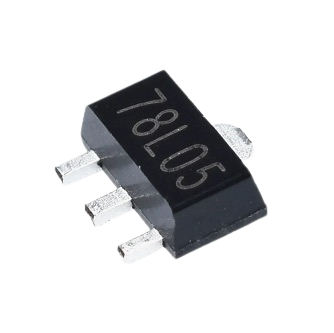

L78L05ABUTR SOT-89 SMD Voltage Regulator

The L78L05ABUTR SOT-89 SMD Voltage Regulator is a compact, surface-mount linear regulator offered in the SOT-89 package. It is intended for use where a small footprint and simple, reliable voltage regulation are required on printed circuit boards. The regulator provides a fixed, regulated output to support upstream and downstream circuitry, helping to stabilize supply rails and reduce sensitivity to input voltage variation.

Its SOT-89 package reduces board space compared with larger regulators while still allowing adequate thermal dissipation for many low- to moderate-power designs when used with appropriate copper area or heatsinking strategies. The device is suitable for automated assembly and pick-and-place production processes common in electronics manufacturing.

Typical applications include power supplies for microcontrollers, analog front ends, sensors, communication modules, and other on-board subsystems that require a fixed regulated supply. Designers will appreciate the straightforward implementation: input and output capacitors are recommended by most manufacturers to ensure stability and transient response, and placement close to the regulator pins helps minimize loop inductance.

When integrating the L78L05ABUTR SOT-89 SMD Voltage Regulator, follow your assembly house guidelines for SMD handling, soldering, and thermal profiling. Refer to the component manufacturer’s datasheet and application notes for recommended external components, layout examples, thermal management techniques, and any device-specific requirements to ensure reliable operation in your end application.
