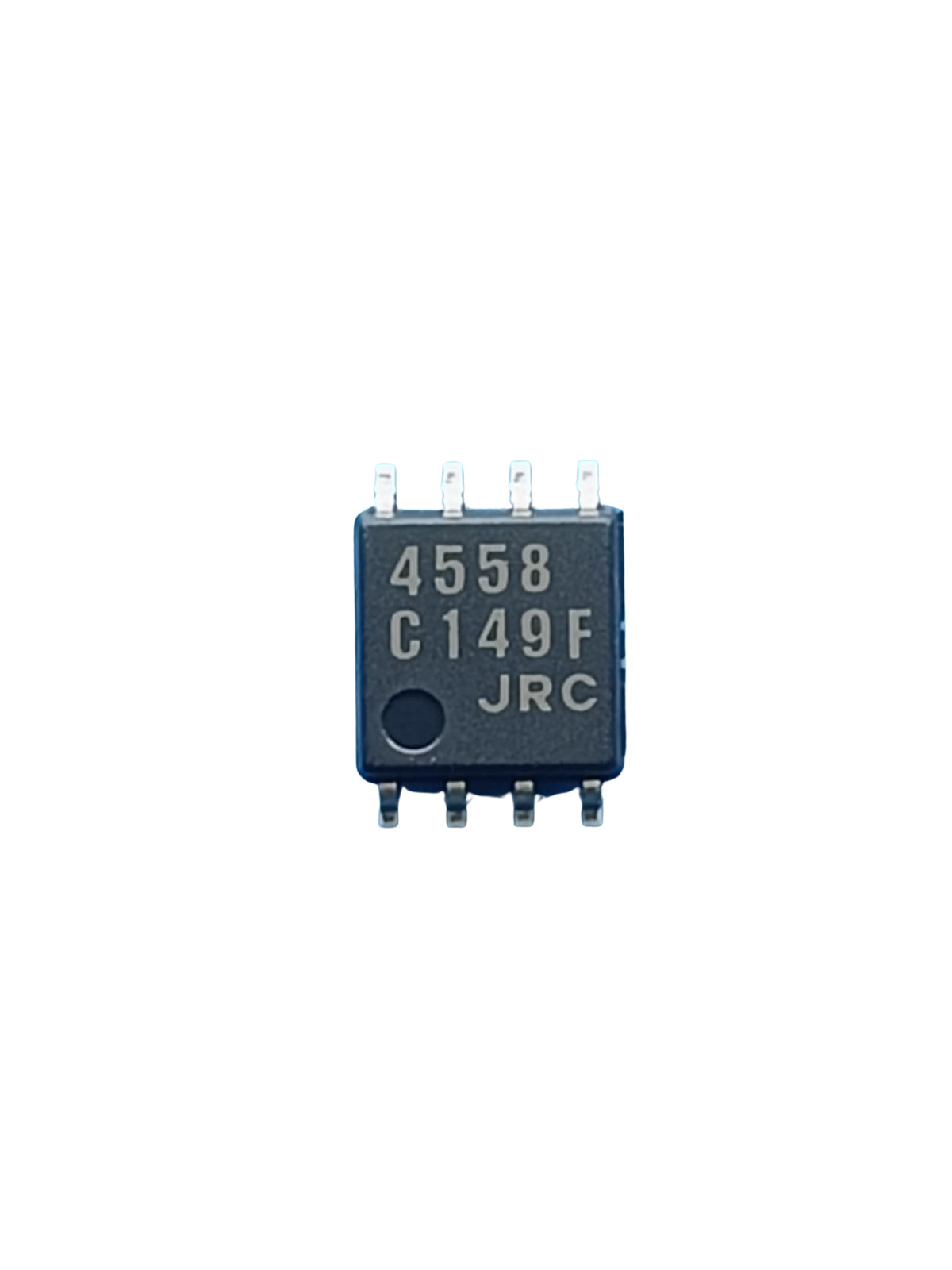

JRC4558 SMD operational amplifier (op-amp)

The JRC4558 SMD operational amplifier (op-amp) is a surface-mount analog IC intended for general-purpose signal amplification and conditioning on printed circuit boards. Packaged for SMD assembly, it is designed to integrate into compact layouts where through-hole components are impractical. This device is commonly used in audio circuits, signal processing, filters, and other low- to moderate-frequency analog applications where a compact dual-amplifier solution is required.

This SMD op-amp is supplied as an integrated circuit suitable for reflow soldering processes and standard surface-mount PCB assembly workflows. Designers value the SMD format for streamlined production, reduced board area, and compatibility with automated pick-and-place equipment. The component is appropriate for prototyping and production runs when an industry-standard op-amp footprint is called for.

When incorporating the JRC4558 SMD operational amplifier into a design, refer to the manufacturer's datasheet for recommended supply rails, pinout, input/output limits, and application circuits to ensure correct operation and reliable performance. Proper PCB layout, decoupling, and thermal considerations help maintain expected analog performance in finished assemblies.
