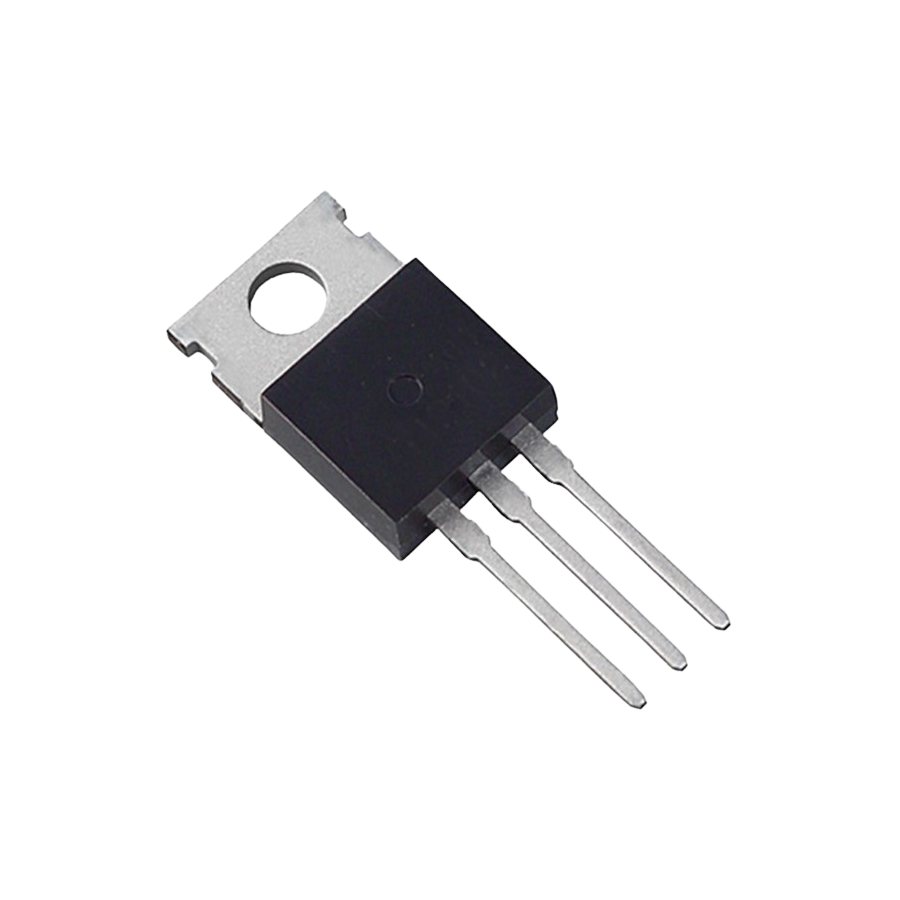

IRLZ44N 47A 55V N-Channel MOSFET

The IRLZ44N 47A 55V N-Channel MOSFET is a power transistor intended for switching and amplification tasks in low- to medium-voltage electronic systems. With its 55V drain-to-source voltage rating and 47A current capability indicated in the product name, this device is suitable for applications that require handling substantial currents at moderate voltages while maintaining efficient control over load switching.

This MOSFET is commonly used as a switch in power control, motor drivers, DC–DC converters, relay replacements, and analog amplification stages where an N-channel device is preferred. Designers should consider the device's on-resistance (RDS(on)), gate threshold, total gate charge, and thermal characteristics when integrating the MOSFET into a circuit to ensure it meets switching speed, conduction loss, and heat dissipation requirements for their specific application.

To achieve reliable performance, apply appropriate gate drive voltages, observe safe operating area limits, and provide adequate heat sinking or PCB thermal management. Implement proper transient protection and layout practices—such as short gate and drain connections and appropriate decoupling—to minimize switching noise and parasitic inductance. Always consult the manufacturer's datasheet for comprehensive electrical characteristics, thermal data, and recommended footprint and mounting guidelines before finalizing a design or performing high-power testing.
