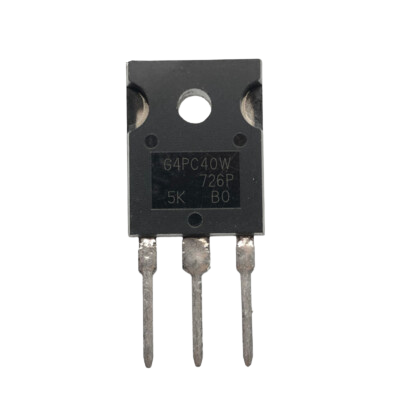

IRG4PC40W IGBT N-Channel 40A 600V

IRG4PC40W IGBT N-Channel 40A 600V is a high-performance insulated-gate bipolar transistor engineered for efficient power switching and amplification in demanding electronic systems. Its construction supports reliable operation under elevated voltage and current conditions, offering a practical solution for industrial and commercial power electronics.

Key electrical characteristics and benefits include:

• Maximum collector current of 40 amperes, allowing the device to handle substantial loads.
• Collector-emitter voltage rating of 600 volts, suitable for high-voltage circuits requiring strong insulation.
• N-channel configuration that supports fast switching speed and improved thermal performance.
• Low saturation voltage to reduce conduction losses and improve overall circuit efficiency.
• Robust packaging designed for durability and consistent performance in industrial environments.

This IGBT delivers enhanced switching efficiency through advanced semiconductor design, minimizing energy loss and heat generation during operation. The N-channel structure favors increased conductivity and rapid response, attributes that are beneficial in pulse-width modulated (PWM) power supplies, motor control circuits, and other power-management applications where fast, reliable switching is required.

Manufactured to meet rigorous quality expectations, the IRG4PC40W provides a reliable balance of voltage and current capability. Its combination of ratings and rugged design makes it a versatile component for replacing older transistors or for use in new high-power designs where dependable performance and extended operational life are important.
