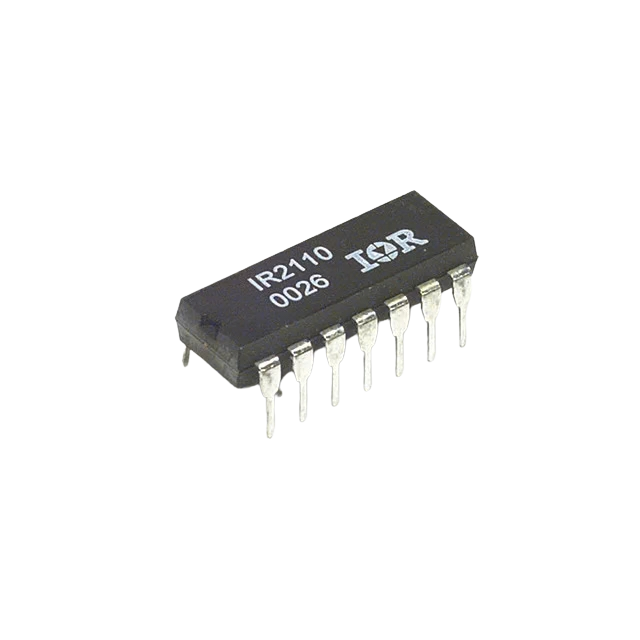

IR2110 high-voltage high-speed power MOSFET and IGBT gate driver

The IR2110 high-voltage, high-speed power MOSFET and IGBT gate driver provides robust gate driving capabilities for demanding industrial and power-conversion applications. It is engineered to deliver rapid switching, reliable isolation, and stable operation across a wide range of conditions, enabling efficient control of high-voltage switching devices.

• High-voltage tolerance up to 500 V for safe operation in elevated voltage environments.
• Fast switching frequency exceeding 500 kHz to support rapid signal transitions and responsive system behavior.
• Wide supply voltage range (10 V to 20 V) for flexibility in diverse power circuit designs.
• Low propagation delay (~100 ns) to ensure precise timing and synchronization of gate signals.
• Robust output drive current (2 A) to provide strong gate charging capability for efficient device switching.

Compared with earlier gate driver models, the IR2110 offers improved voltage handling and faster switching performance, helping to reduce switching losses and enhance device durability. Its advanced bootstrap circuitry simplifies high-side driver implementation and maintains stable voltage levels for reliable gate control of MOSFETs and IGBTs. These characteristics make the IR2110 well suited for high-efficiency power conversion systems and complex power topologies where both performance and reliability are required.
