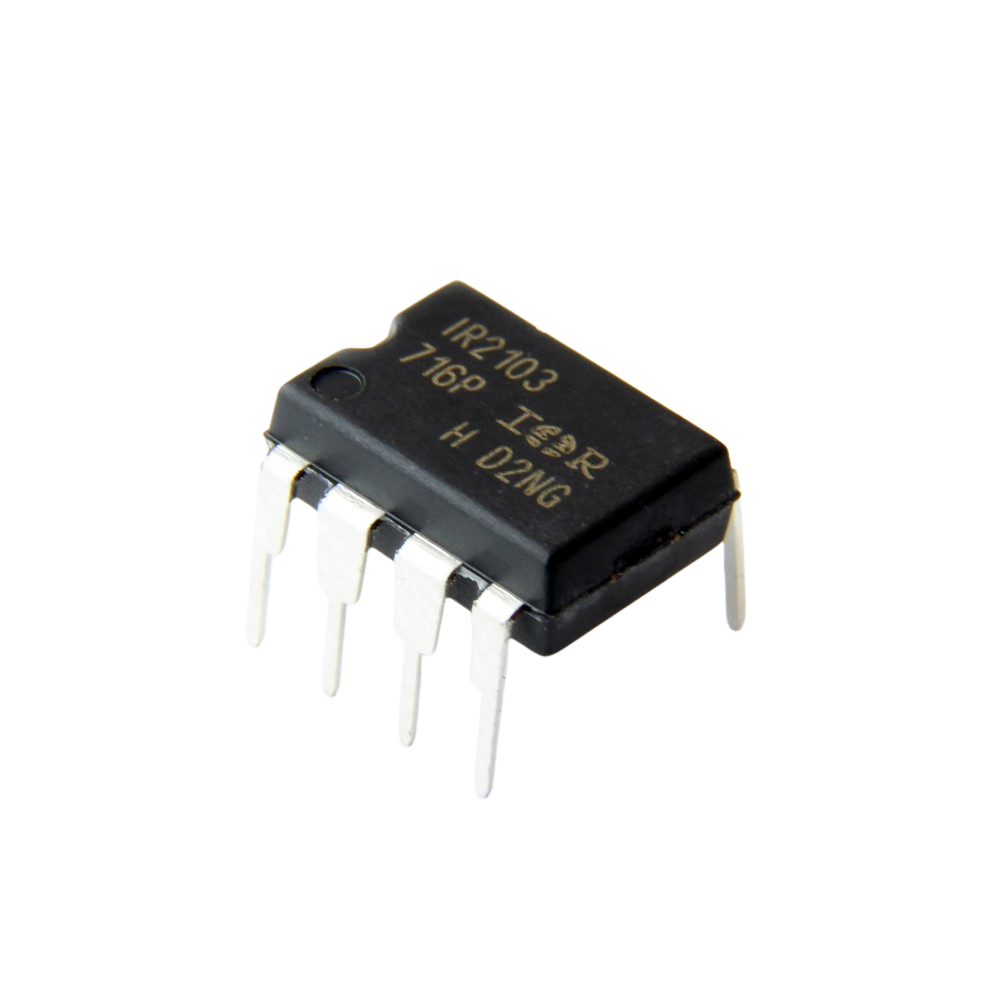

IR2103 Half Bridge Driver

The IR2103 Half Bridge Driver is a compact driver device intended for integration into half-bridge and full-bridge power stage circuits. It provides the core driving functionality required to control two complementary power transistors in a bridged configuration, enabling designers to implement switching solutions for motor drives, power converters, lighting control, and other power management applications.

Designed for straightforward PCB integration, the IR2103 is suitable for use in both prototype and production designs where a discrete gate driver solution is preferred. Its layout-friendly package and pinout simplify board routing and component placement, which can accelerate development time and reduce assembly complexity.

From a system perspective, the IR2103 helps separate gate drive and power stages, improving modularity and serviceability. Using a dedicated driver such as this can aid in achieving cleaner gate transitions, consistent switching behavior, and more predictable thermal performance when incorporated into a properly designed power stage.

When selecting and applying the IR2103, follow recommended design practices for gate resistances, decoupling, and PCB grounding to ensure reliable operation in your specific application. Refer to the manufacturer's documentation for detailed electrical specifications, recommended external components, and layout guidance before finalizing your design.
