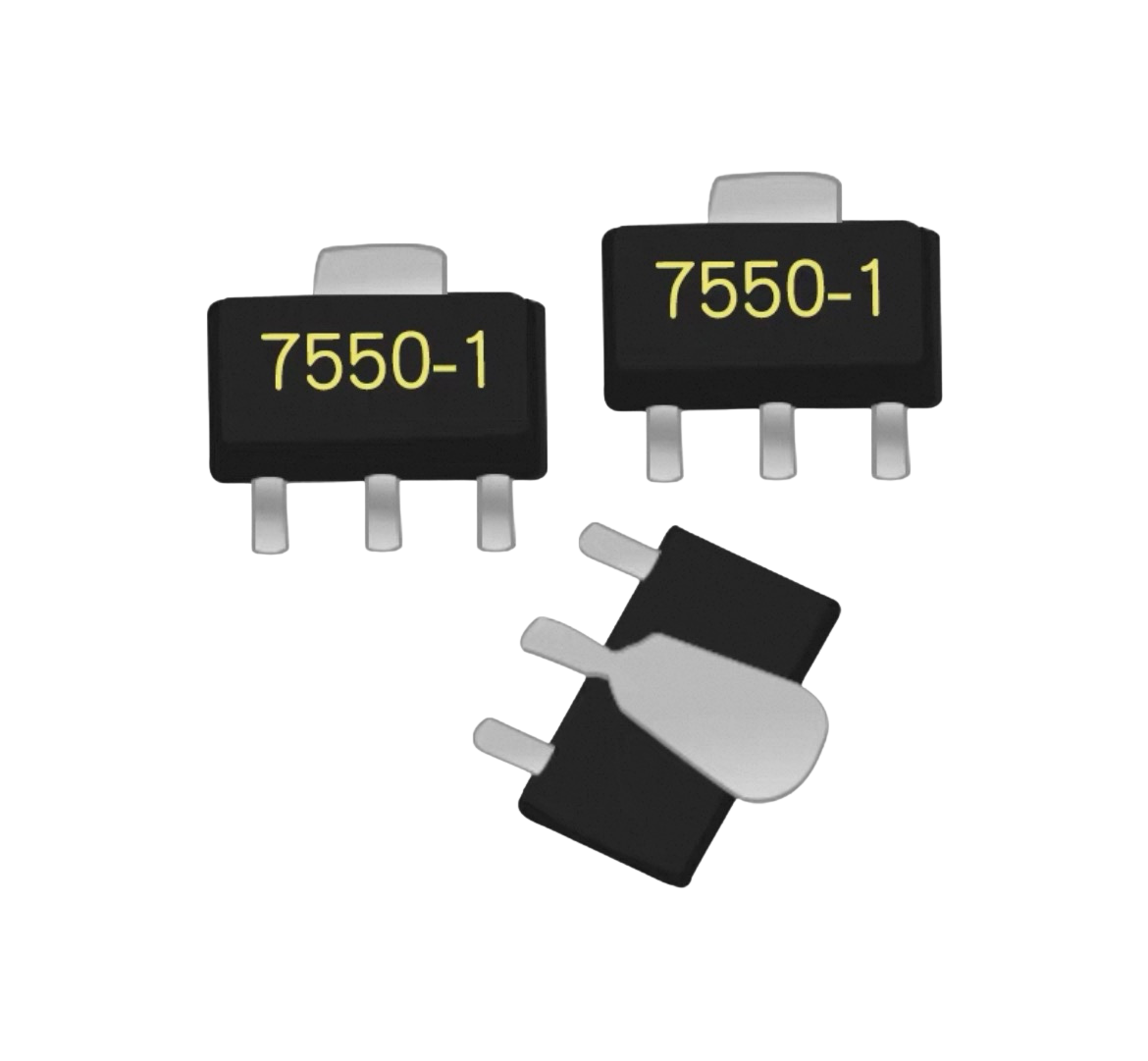

HT7550-1 SOT-89 SMD Low Dropout Voltage Regulator

The HT7550-1 SOT-89 SMD Low Dropout Voltage Regulator is a surface-mount linear regulator offered in a compact SOT-89 package. It delivers regulated output voltage with low dropout performance, making it suitable for systems where input-to-output voltage margin is limited. Its small footprint and standard SOT-89 form factor simplify PCB layout and enable use in space-constrained assemblies.

This regulator is intended for general-purpose power management tasks such as supplying analog circuits, microcontrollers, sensor modules, and other low-voltage subsystems. It provides stable voltage regulation to minimize output ripple and supply noise, improving overall system reliability and signal integrity. The SMD package supports automated assembly and reflow soldering processes for consistent production yields.

Thermal considerations are important when designing with this component; proper PCB copper area and thermal vias should be used to dissipate heat and maintain device junction temperature within safe limits. Standard decoupling and input/output bypass capacitors are recommended close to the regulator terminals to ensure loop stability and transient response. The device's modest package size and straightforward three-terminal pinout make it easy to integrate into single-sided or multi-layer boards and to pair with common passive components.

Typical application environments include portable electronics, embedded systems, instrumentation, and distributed power rails where a reliable, compact linear regulator is required.
