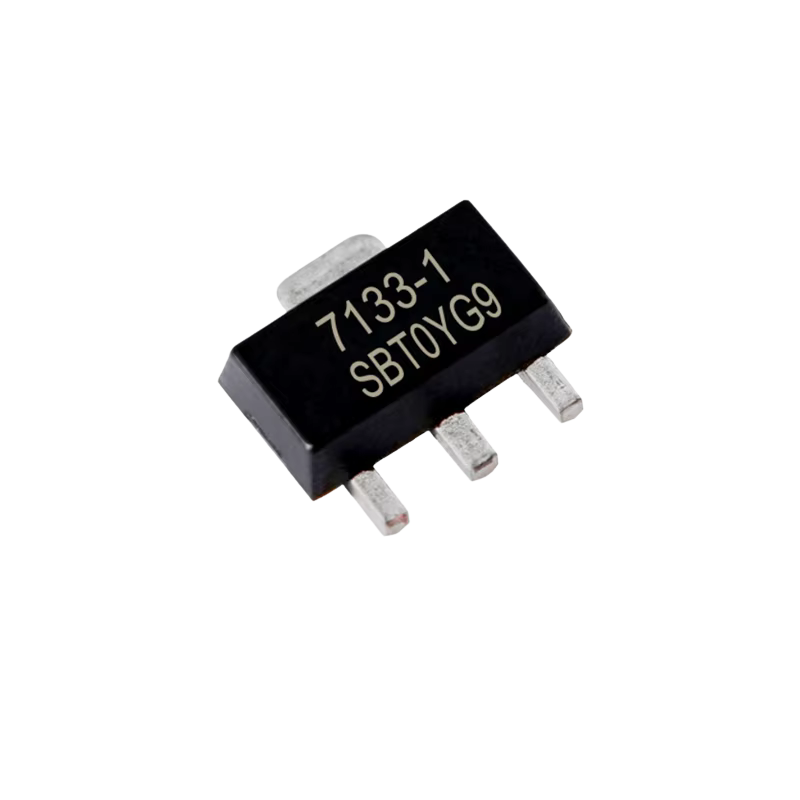

HT7133A-1 3.3V SOT-89 SMD three terminal high-voltage linear voltage regulator

The HT7133A-1 is a 3.3V, three-terminal linear voltage regulator supplied in a compact SOT-89 surface-mount package. Designed for applications that require a stable low-voltage rail derived from a higher input voltage, this regulator provides a simple, cost-effective solution for board-level power regulation where switching noise or design complexity must be minimized.

As a linear regulator, the HT7133A-1 delivers a regulated 3.3V output without the switching artifacts associated with DC–DC converters, making it suitable for noise-sensitive analog circuits, reference rails, and communication interfaces. The SOT-89 package offers a small footprint for dense PCB layouts while providing thermal coupling to the board for heat dissipation in typical low-to-moderate power applications.

Installation and use are straightforward: the device is a three-terminal SMD part that requires minimal external components for basic regulation. Common layout considerations include adequate copper area or thermal vias to improve heat spreading and attention to input and output decoupling capacitors recommended by standard linear regulator practice to ensure stability and transient response.

Typical applications include embedded systems, consumer electronics, instrumentation, and other electronic designs where a fixed 3.3V supply is needed from a higher-voltage source and where simplicity and low noise are priorities.
