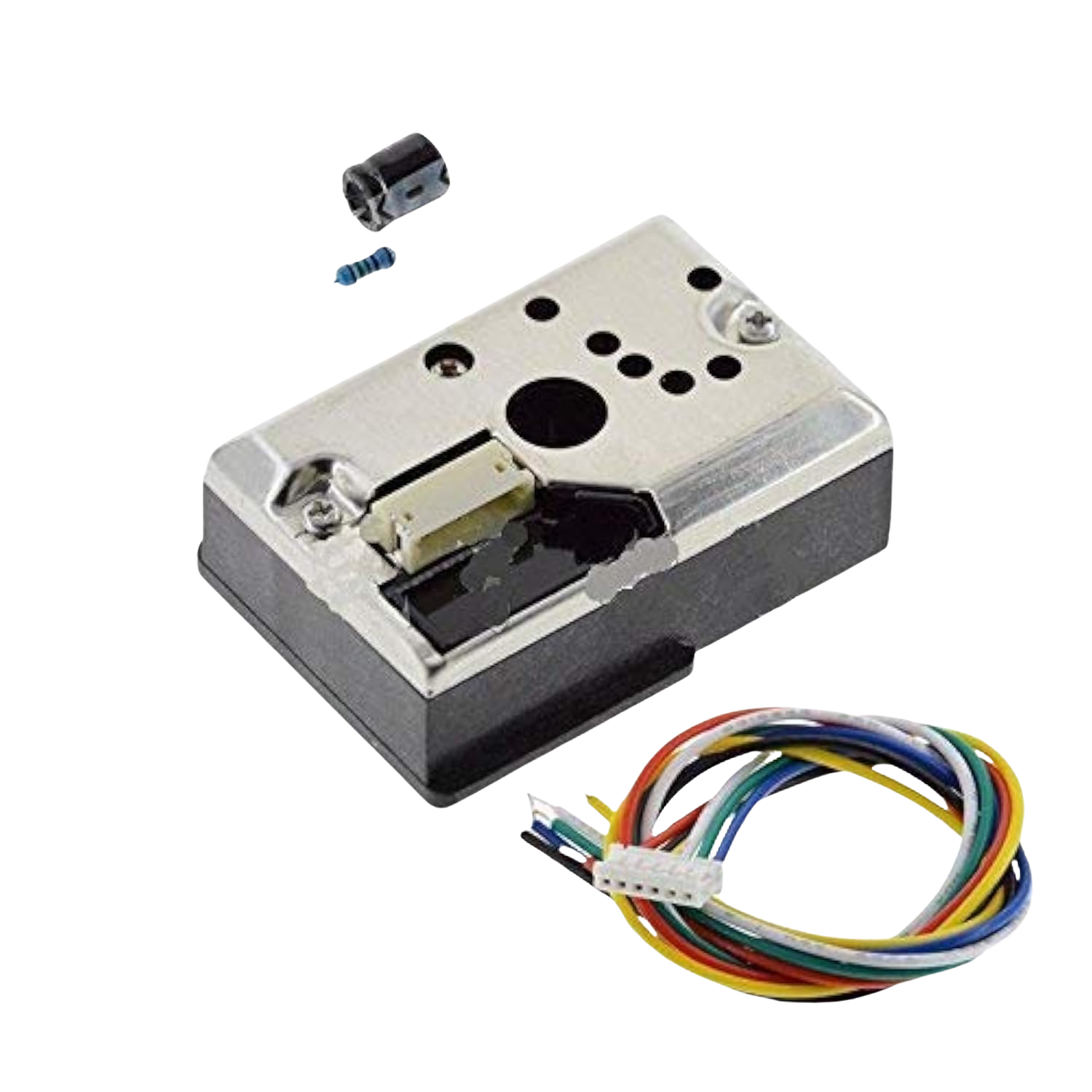

GP2Y1014AU PM2.5 Dust Smoke Particle Detection Sensor Module + Capacitor + Resistor

The GP2Y1014AU PM2.5 Dust Smoke Particle Detection Sensor Module is an optical particle sensor module designed to detect fine particulate matter and smoke in air. This kit includes the GP2Y1014AU sensing element plus a capacitor and a resistor preinstalled to improve signal stability and that simplify initial setup. The module provides a straightforward electrical interface for integration into air quality monitors, DIY electronics, environmental sensing projects, and prototype systems.

Operation is based on optical scattering: airborne particles crossing the sensor's optical path scatter light, producing a measurable electrical signal. The module output gives a voltage that correlates with particle concentration; users typically sample and process this signal with a microcontroller or data acquisition system and apply calibration or filtering to obtain meaningful PM2.5 readings.

Key practical advantages of this module include compact size for space-constrained designs, simple interfacing for hobbyist and professional use, and the inclusion of passive components that reduce the need for additional parts during initial testing. Because accurate particulate measurement depends on proper placement, power supply stability, sampling timing, and calibration against reference instruments, users should plan for signal conditioning and validation during system integration.

This sensor module is intended for use in non-medical air quality and educational applications where qualitative and relative PM2.5 monitoring is required.
