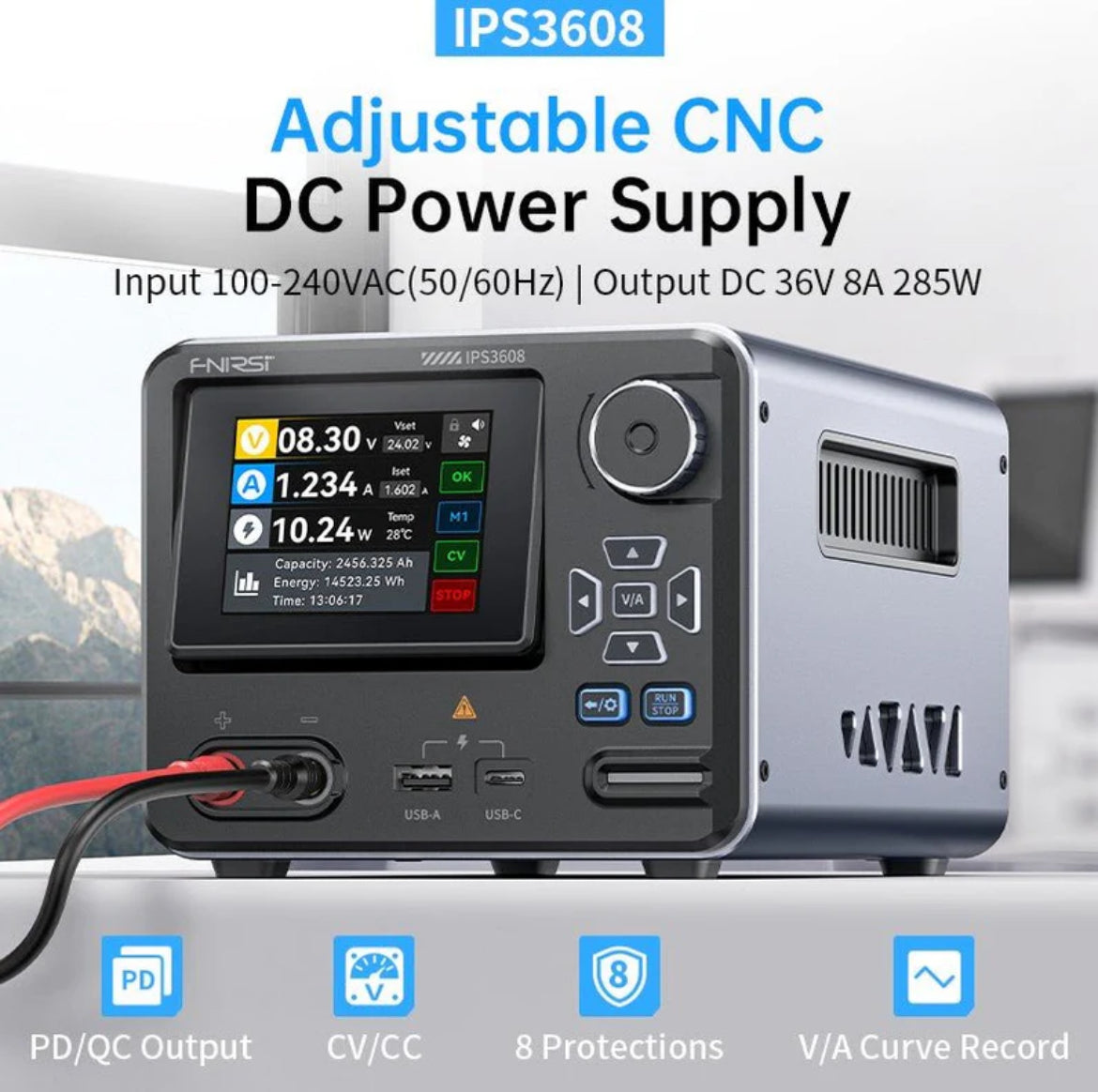

FNIRSI® IPS3608 AC-DC 0-36V 0-8A Intelligent Digital Control Power Supply

IPS3608 is an AC-DC intelligent digital control power supply that uses digital control technology to convert AC mains into stable DC output with higher precision and faster dynamic response than traditional supplies. It provides convenient parameter adjustment via a 2.8-inch color screen with adjustable backlight and supports both Chinese and English interfaces. The front panel offers high-resolution setting capability and clear readback for accurate tuning in lab and bench workflows.

• Output range: DC 0–36V, 0–8A, up to 285W.
• High setting resolution: voltage 0.01V, current 0.001A.
• Readback accuracy: voltage ±(0.3%+3 bits), current ±(0.15%+5 bits).

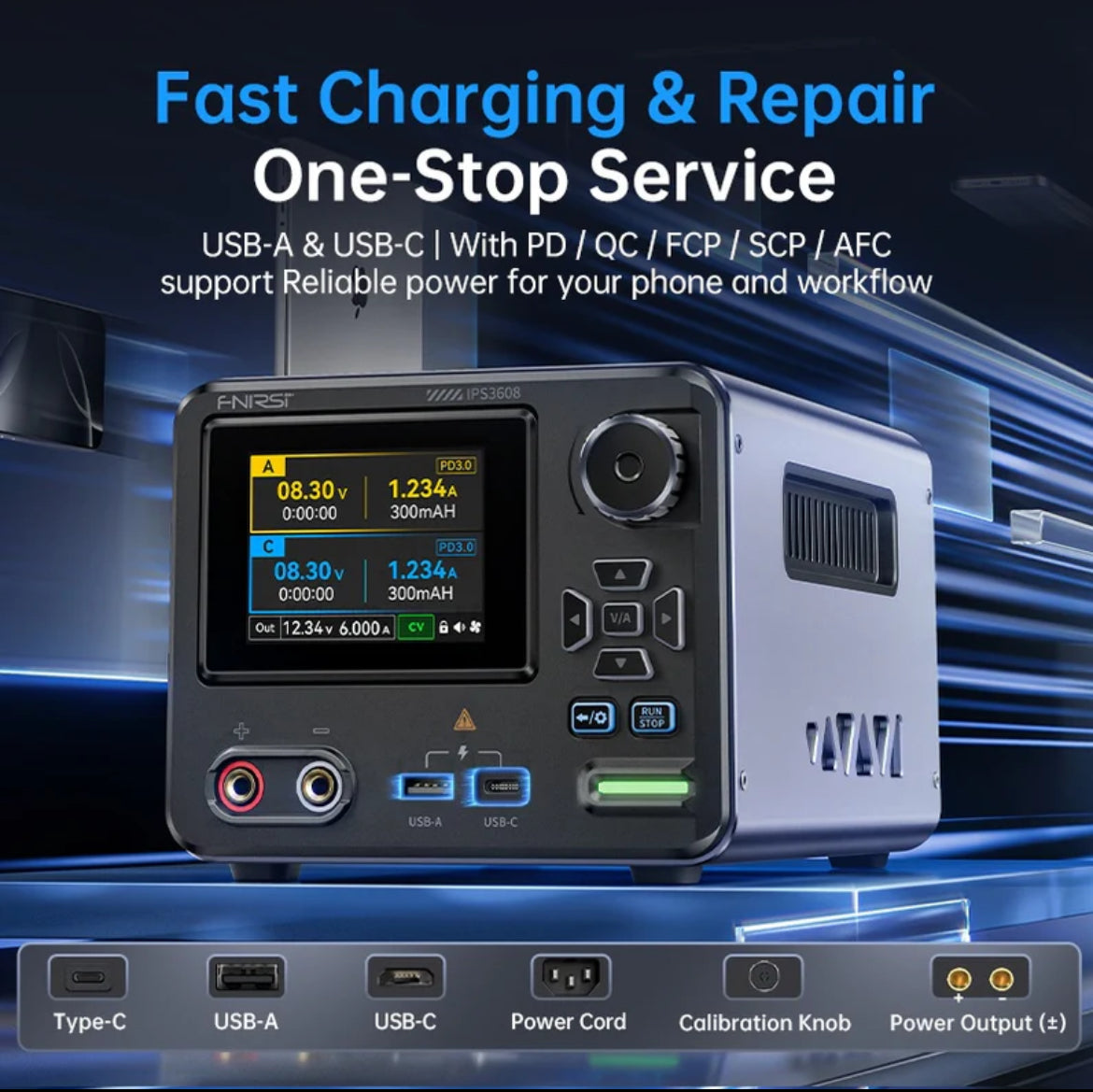

• Fast charging protocols on USB-C (PD3.0) and USB-A (HUAWEI FCP/SCP, AFC, QC2.0/3.0).

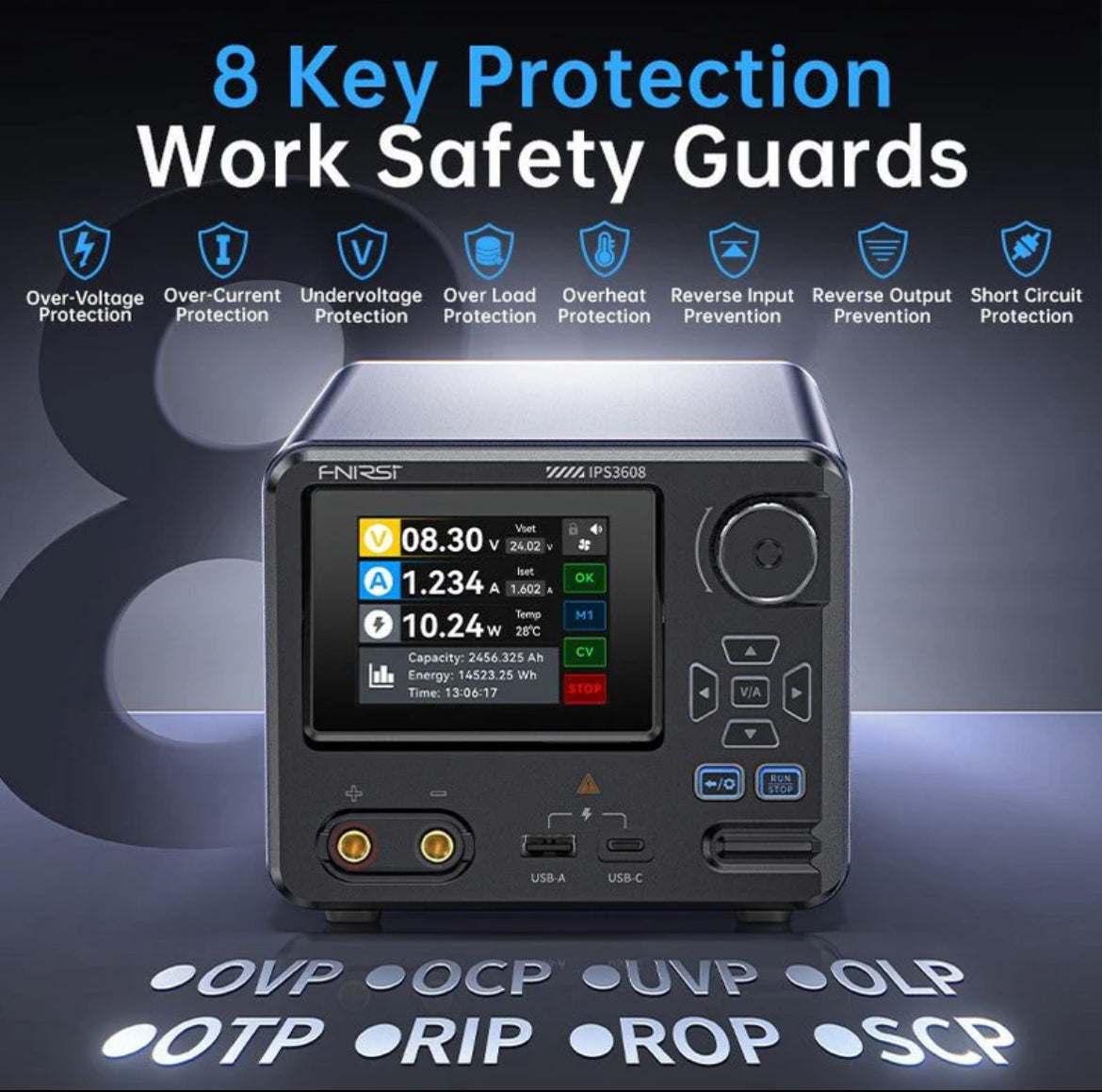

• Multiple protections including overvoltage, overcurrent, overpower, overtemperature, undervoltage, short circuit, input reverse connection, and output reverse injection.

Input: 100–240VAC (50/60Hz). Operating environment: -10℃–40℃, 0%–75%RH. Load regulation: ±(0.2%+2 bits). Accuracy example: for 5V the error is ±(5 x 0.3% + 3 x 0.01) = 5 ± 0.
