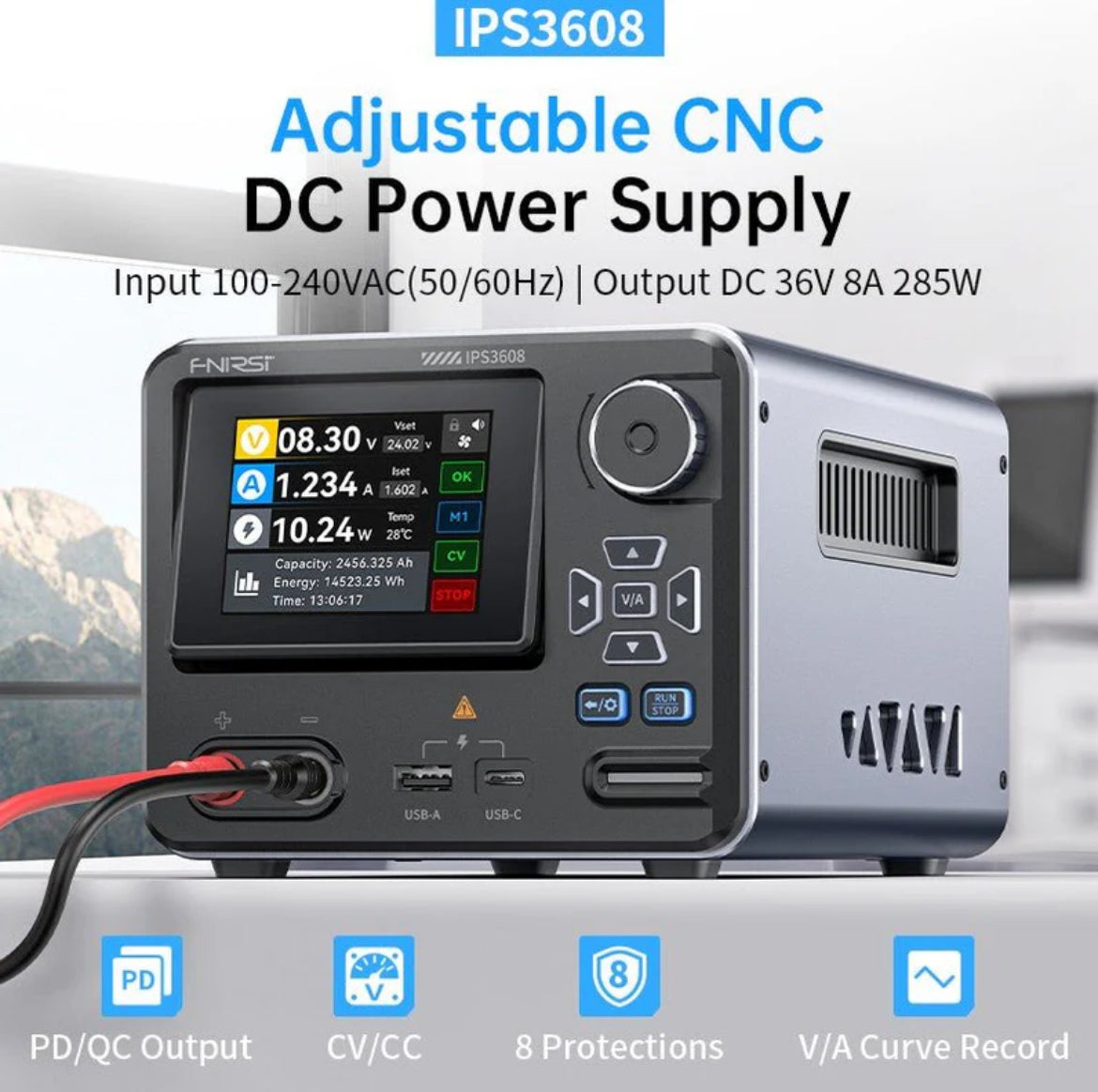

Name: FNIRSI® IPS3608 AC-DC 0-36V 0-8A Intelligent Digital Control Power Supply
Brand: Electronic Service Center
Price: 1200.000 LYD
Availability: InStock

FNIRSI® IPS3608 AC-DC 0-36V 0-8A Intelligent Digital Control Power Supply

LD 1,200.000

IPS3608 is an AC-DC intelligent digital control power supply that uses digital control technology to efficiently convert AC power into DC power. It is much more intelligent than traditional power supplies. It has the characteristics of convenient parameter adjustment, high-precision output, strong dynamic response, convenient digital control interface, and multiple electrical protections.

Specifications

Basic Parameters:

Model

IPS3608

Screen Material

2.8-inch color screen

Backlight

Adjustable backlight brightness

Language

中文, English

Product Size

≈138×214×115mm

Product Weight

≈1539g

Battery Parameters:

Input

Voltage Range: 100-240VAC(50/60Hz)

Setting Resolution

Voltage: 0.01V
Current: 0.001A

Readback Value Accuracy

Output Voltage: ±(0.3%+3 bits)
Output Current: ±(0.15%+5 bits)

Operating Environment

-10℃~40℃, 0%~75%RH

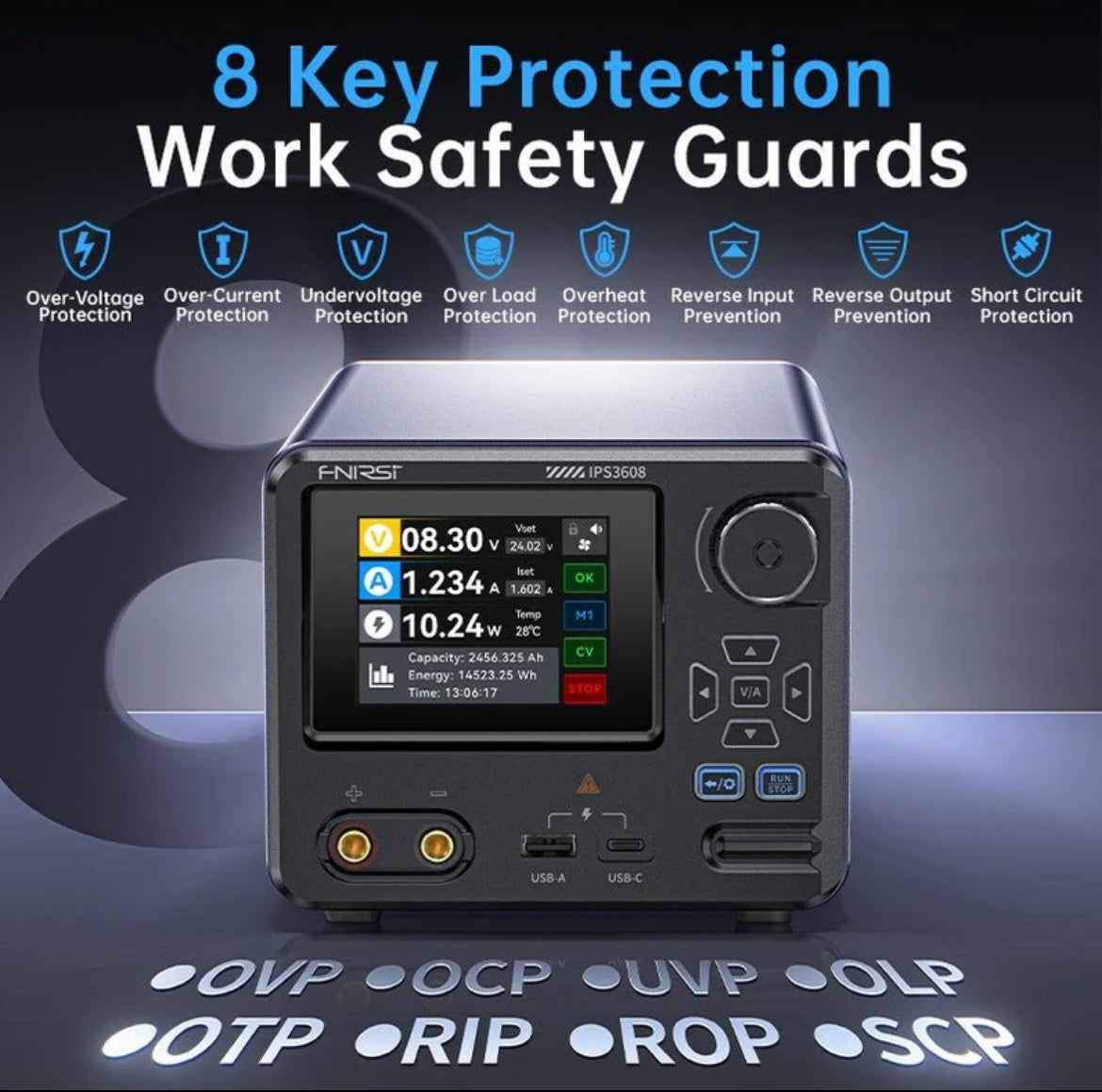

Protection Mechanism

◾ Overvoltage protection
◾ Overcurrent protection
◾ Overpower protection
◾ Overtemperature protection
◾ Undervoltage protection
◾ Short circuit protection
◾ Input reverse connection protection
◾ Output reverse injection protection

Output

Voltage: DC 0~36V
Current: 0~8A
Power: 0~285W

Load Regulation Rate

±(0.2%+2 bits)

※Accuracy calculation method: one byte is the minimum resolution, such as 5V, the error is ±(5 x 0.3% + 3 x 0.01), that is, 5 ± 0.045V

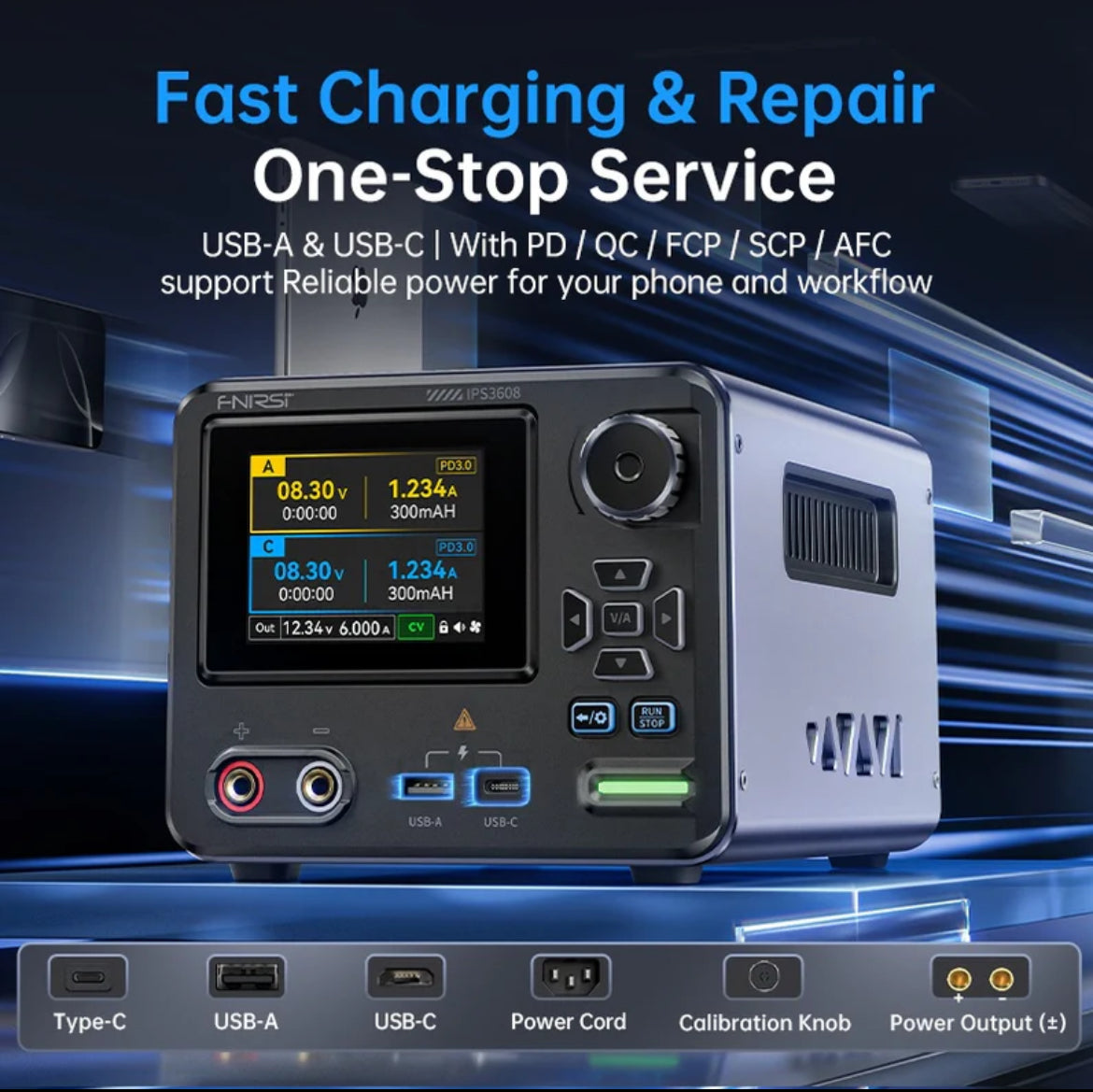

Fast Charging Protocol:

USB-C

PD3.0

USB-A

HUAWEI FCP
HUAWEI SCP
AFC
QC2.0
QC3.0

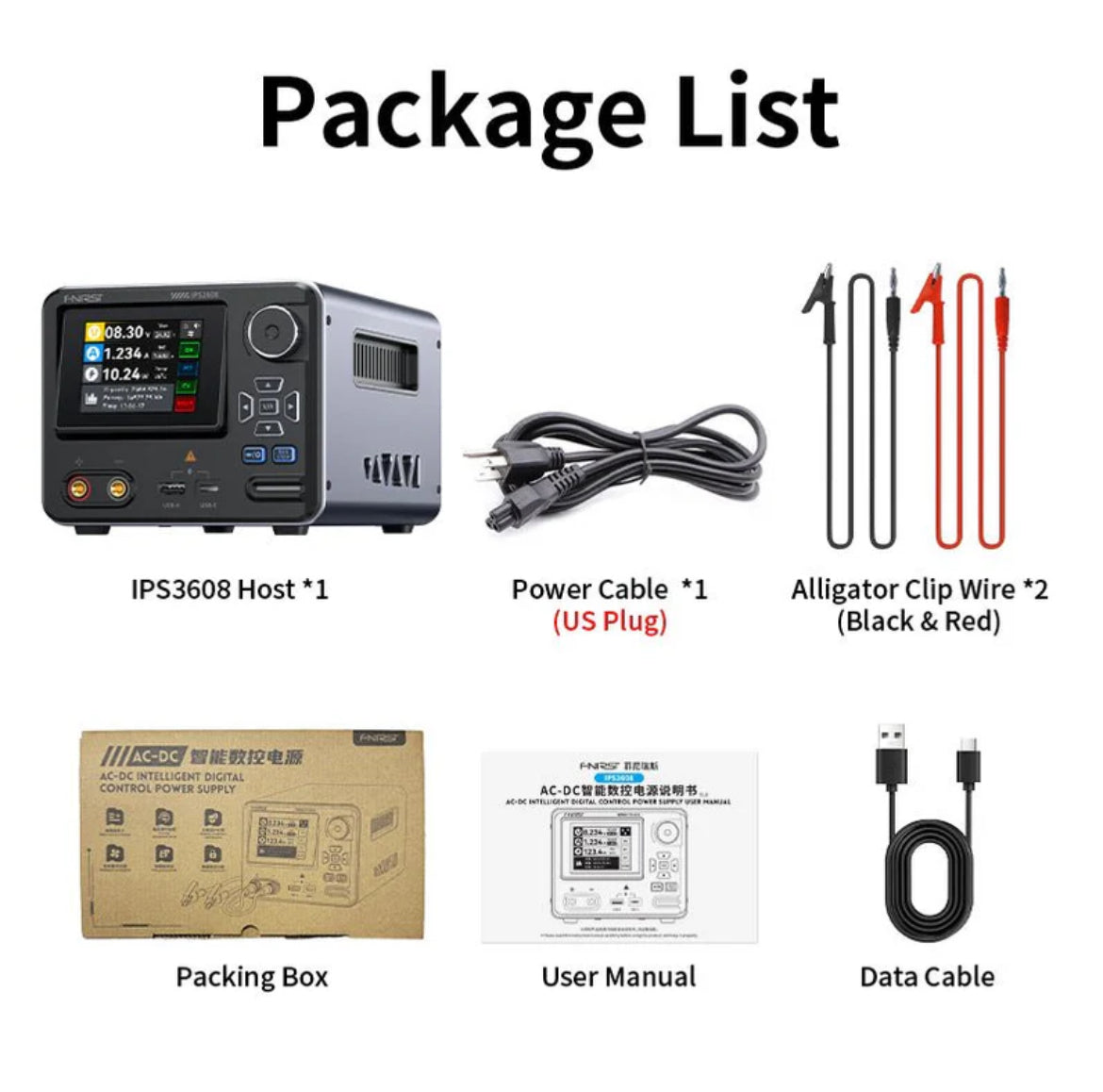

Package List:

◉ IPS3608 Host × 1
◉ Power Cable × 1 (US or EU Plug)
◉ Alligator Clip Wire × 2 (Black & Red)
◉ Data Cable × 1
◉ User Manual × 1
◉ Packing Box × 1

FNIRSI® IPS3608 AC-DC 0-36V 0-8A Intelligent Digital Control Power Supply
