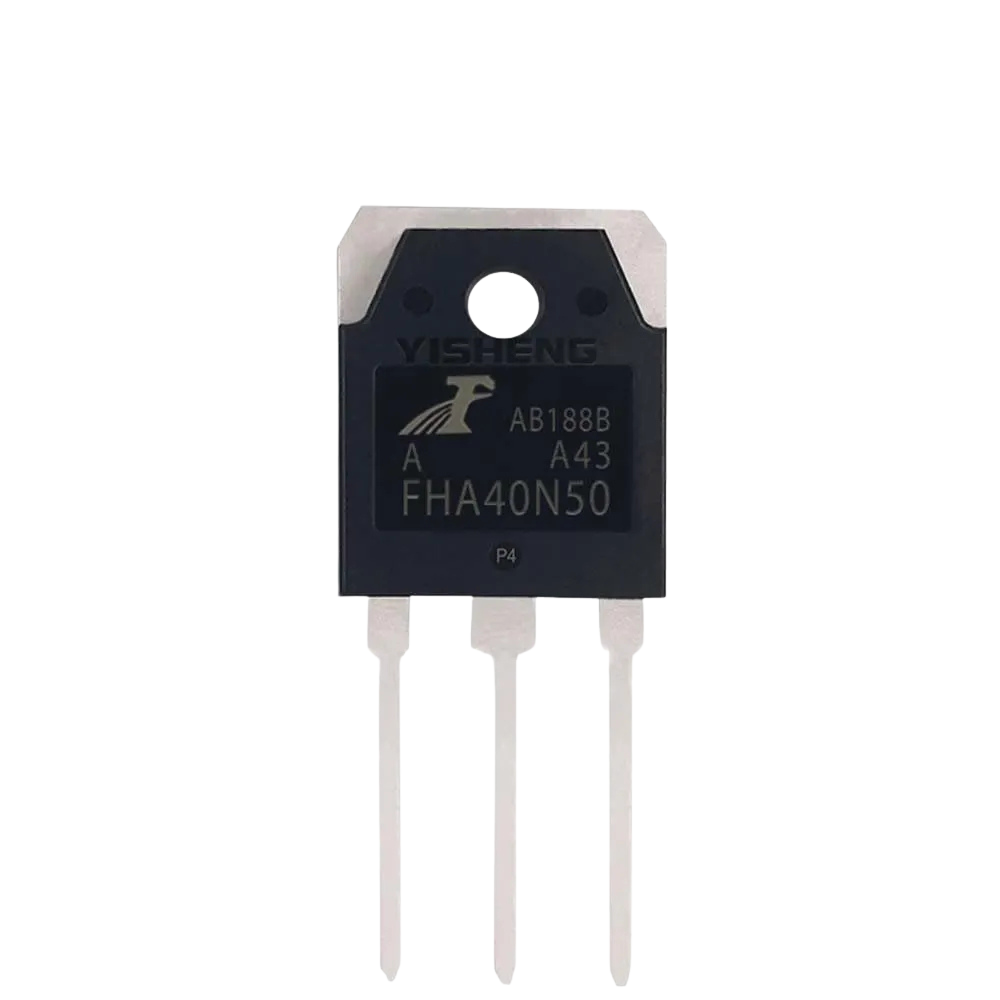

FHA40N50 40A 500V MOSFET N-Channel

The FHA40N50 is an N-channel MOSFET rated for 40 amps continuous drain current and a maximum drain-to-source voltage of 500 volts. Designed for high-voltage switching and power conversion tasks, this device offers robust performance for industrial and commercial power electronics applications where high voltage endurance and reliable switching are required.

Key characteristics include the N-channel enhancement-mode topology and specifications suitable for use in switch-mode power supplies (SMPS), motor drives, power inverters, and other high-voltage switching circuits. The MOSFET is intended to be used with appropriate gate drive voltages and external circuit protection, including gate resistors, snubbers, and proper thermal management to ensure long-term reliability.

Thermal considerations are important when operating at high currents and voltages; adequate heatsinking, PCB copper area, and airflow should be provided to maintain junction temperature within safe limits. Proper layout practices—short, low-inductance traces for drain and source connections, a solid ground plane where applicable, and careful placement of gate drive components—help minimize switching losses and electromagnetic interference.

For assembly and handling, observe standard ESD precautions to prevent damage to the gate oxide. Use recommended soldering profiles and follow manufacturer datasheet guidance for mounting torque and mechanical constraints when using through-hole or flange-mounted packages. Always consult the device datasheet and perform validation in the target system to confirm thermal performance and switching behavior under expected operating conditions.
