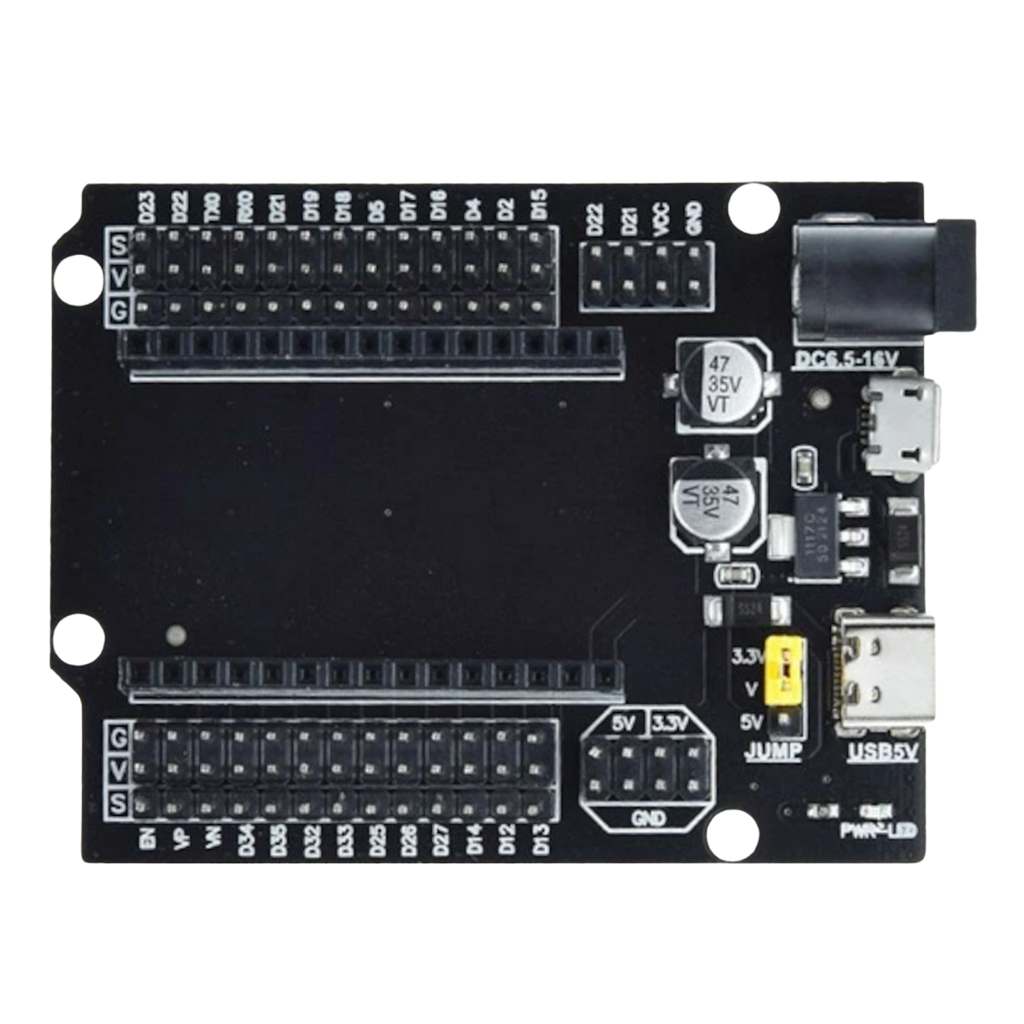

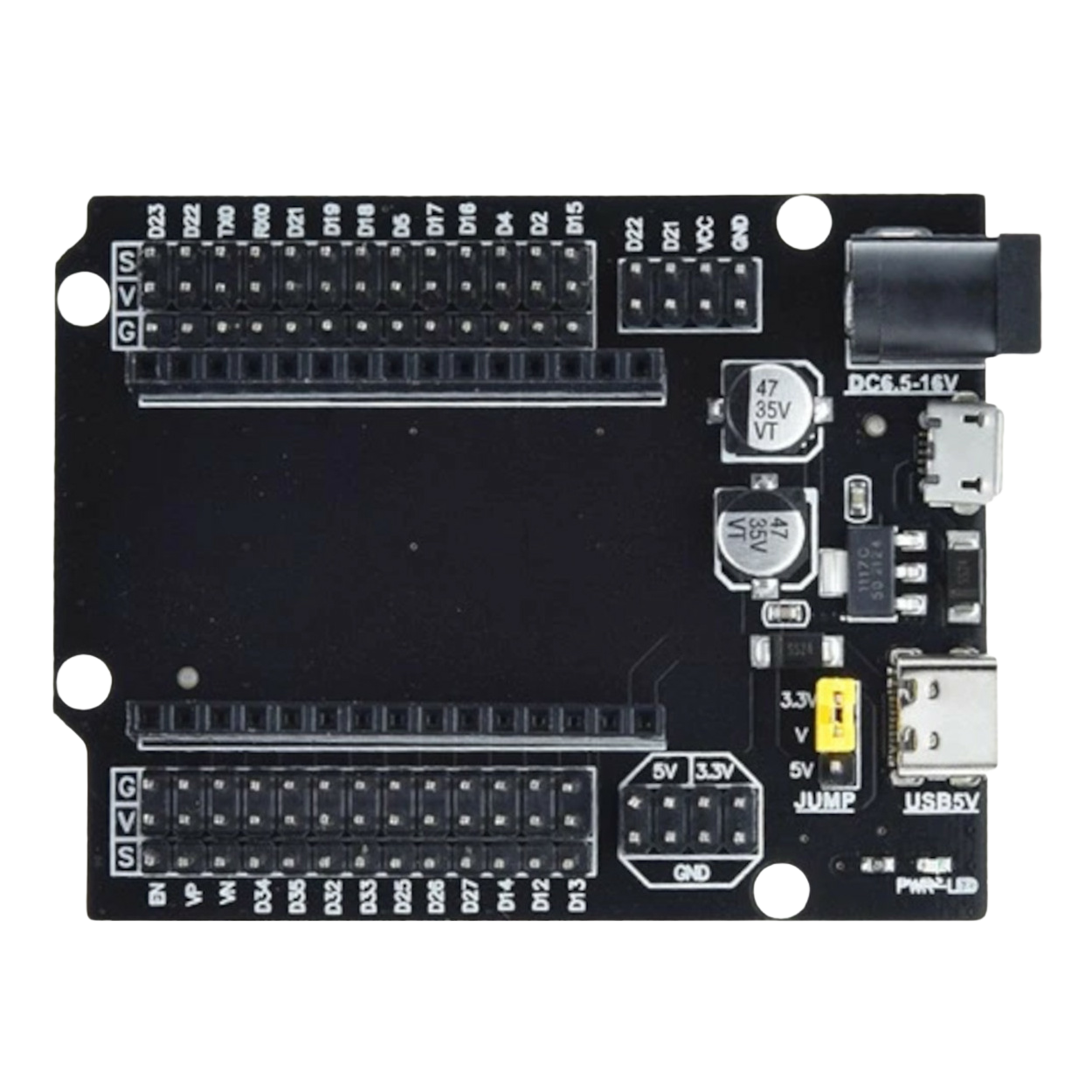

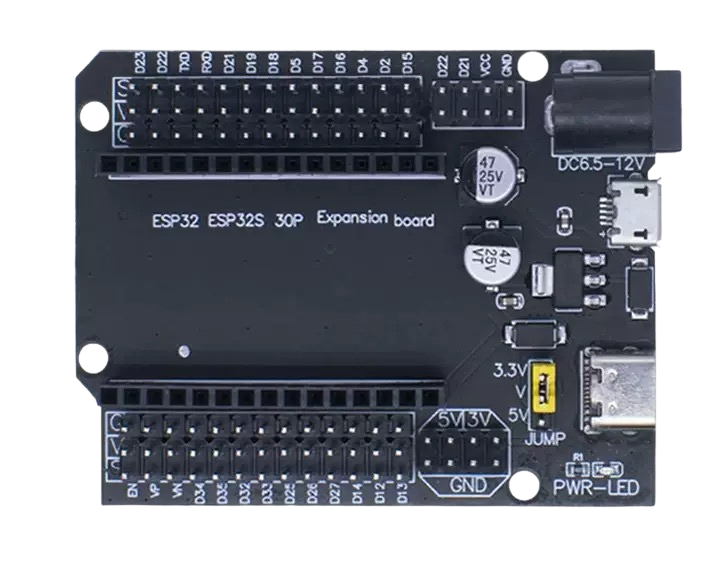

ESP32 30pin Expansion Module لوحة توسعة

The ESP32 30pin Expansion Module لوحة توسعة is a compact breakout board designed to simplify access to the ESP32 module's signals during development and prototyping. It exposes the ESP32's 30 pins in a convenient, breadboard-friendly layout so you can connect sensors, actuators, displays, communication modules, and debugging tools without complex wiring.

Designed for use with standard ESP32 modules that provide a 30-pin interface, this expansion module maps the module's GPIOs, power rails, and common control lines to easily accessible headers. The breakout follows standard 2.54 mm pitch conventions to ensure compatibility with jumper wires, perfboards, and common prototyping accessories. Logic and I/O on the board operate at the ESP32's native 3.3V levels.

Key practical benefits include reduced wiring errors, faster iteration cycles, and clearer signal routing on your bench or within enclosures. The module is suitable for a wide range of applications such as sensor integration, wearable prototypes, IoT proof-of-concepts, home automation experiments, and embedded learning projects where reliable access to every ESP32 pin is required.

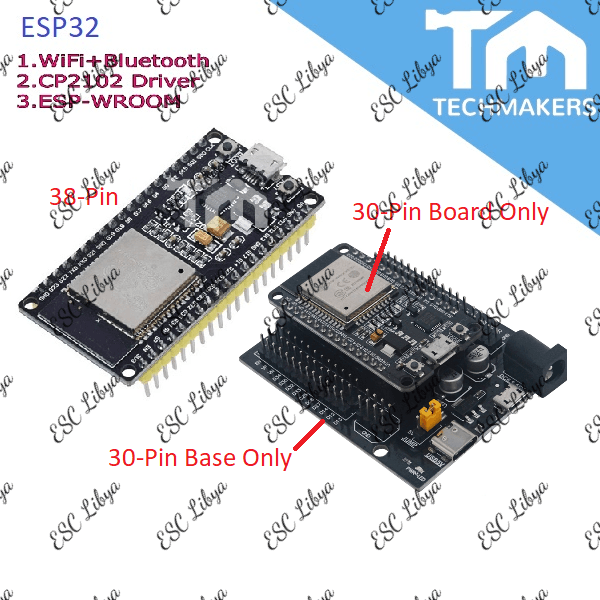

Assembly and integration are straightforward: plug the ESP32 module to the breakout interface and connect peripherals to the breakout headers. The module is intended to streamline development workflows by keeping signal connections organized and repeatable, helping you focus on firmware and system design.
