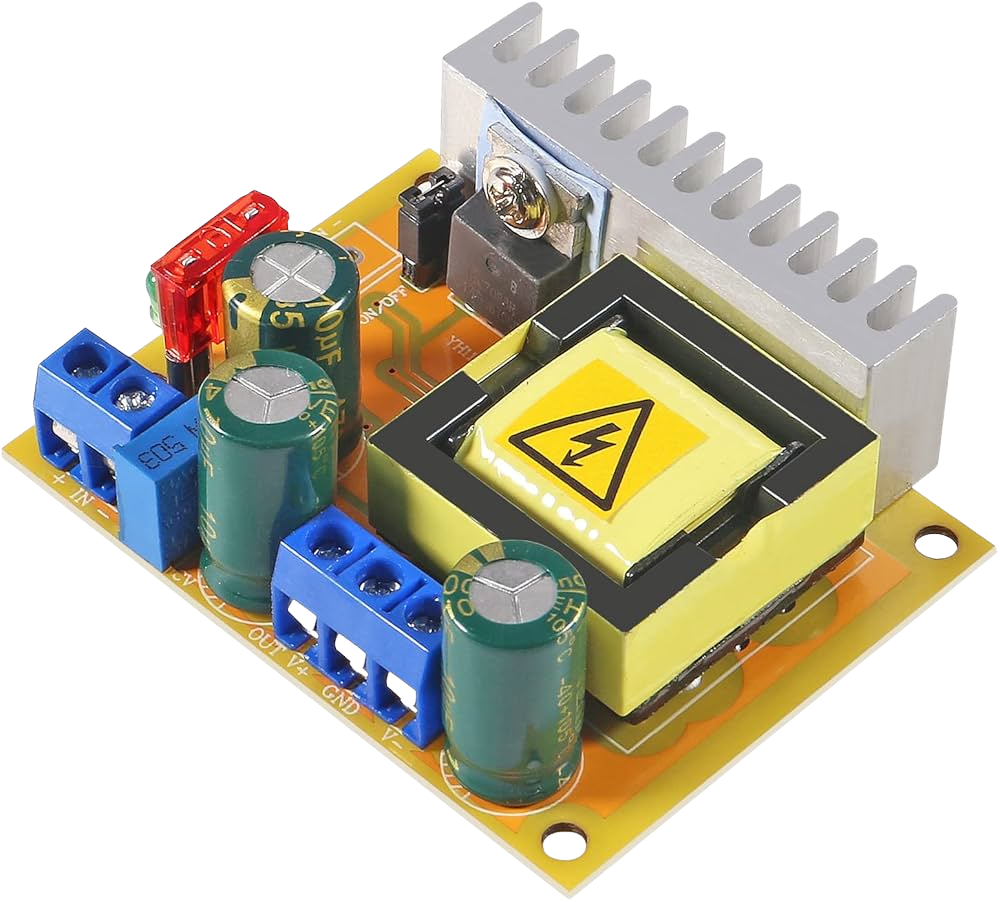

DC-DC High Voltage Boost Converter 8V-32V to 45V-390V ZVS Step-up Booster Module رافع جهد

This DC-DC High Voltage Boost Converter raises input voltages from 8V–32V to an adjustable output range of 45V–390V using a Zero Voltage Switching (ZVS) step-up topology. The ZVS architecture reduces switching losses and heat generation, improving overall conversion efficiency and thermal performance for extended operation.

• Wide input range: 8V to 32V for compatibility with diverse DC sources.
• Adjustable high-voltage output: 45V to 390V to suit varied application requirements.
• ZVS design: minimises switching losses and reduces thermal stress.
• Compact form factor: fits into space-constrained systems and projects.
• Improved efficiency: designed for reliable performance under varying loads.

Advanced circuit design and ZVS operation deliver more consistent energy conversion compared with conventional boost converters. Reduced switching-related heat helps maintain stable output under fluctuating input conditions and can extend component lifetime when used within recommended operating limits.

Typical applications include high-voltage power supplies, laboratory test setups, educational and hobbyist projects requiring elevated DC voltages, and any custom electronics that need a compact, adjustable step-up module. The module’s compact footprint and broad output range make it suitable where space and flexibility are important.

Before installation, ensure the input source and load are within the module’s specified voltage and current capabilities, observe proper wiring polarity, and provide adequate cooling and insulation for high-voltage connections. Follow safety practices for handling high-voltage equipment and verify connections before powering the unit.
