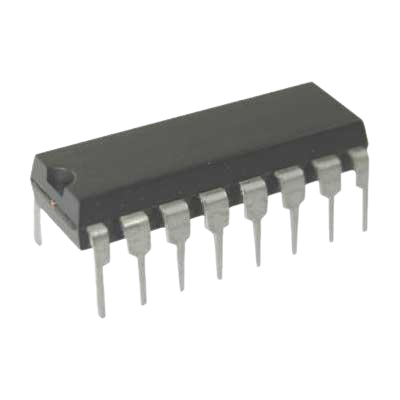

CD4511 BCD-to-seven-segment latch decoder driver

The CD4511 BCD-to-seven-segment latch decoder driver is a digital logic component that converts a four-bit binary-coded decimal (BCD) input into the seven individual segment outputs required to drive a seven-segment display. It integrates the decoding function with output driver stages and a latch mechanism to hold the displayed value while inputs change. This combination simplifies the interface between digital logic sources and seven-segment numeric displays.

Key functional highlights:

• Decodes BCD inputs into segment outputs for standard seven-segment displays.
• Includes an input latch to maintain a stable display until updated.
• Provides drive outputs suitable for direct connection to typical LED segments when used within recommended circuit conditions.

Applications and benefits:

• Ideal for numeric displays in clocks, counters, meters, readouts, and control panels where a compact decoder/driver simplifies design.
• Reduces external logic and discrete driver hardware, saving board space and design time.
• Works well with microcontrollers, counters, and other TTL/CMOS logic sources to present human-readable numeric output.

Design and usage notes: When integrating the CD4511 into a design, follow the display manufacturer’s recommendations for segment current limiting and verify compatibility between the driver outputs and the chosen seven-segment device (common-cathode or common-anode as applicable). Provide proper power supply decoupling and consult component datasheets for timing and thermal guidance when implementing in high-reliability or high-temperature environments.
