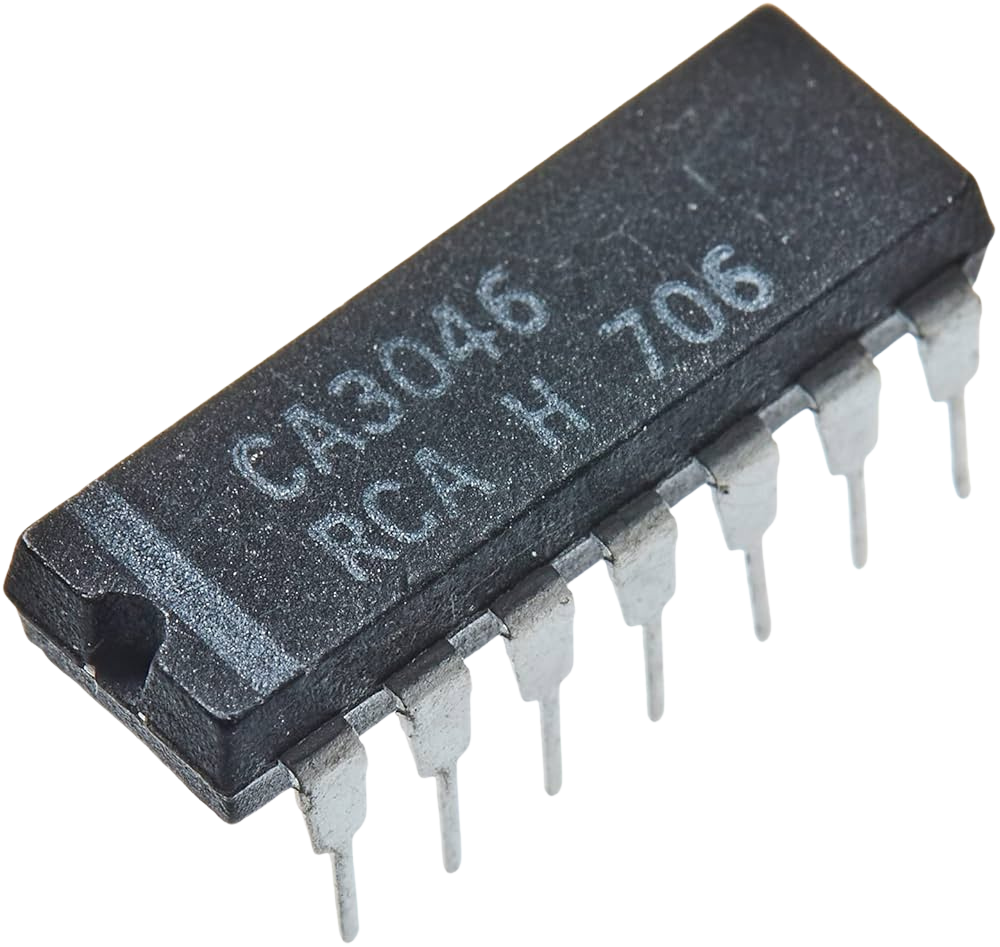

CA3046

The CA3046 is a versatile analog integrated circuit comprising an array of matched NPN transistors designed for precision analog applications. It delivers consistent performance across low-voltage environments while maintaining efficient power consumption and straightforward integration into compact circuit layouts.

• Four NPN transistors integrated on a single chip provide uniform electrical characteristics for reliable signal processing.
• Wide operating voltage range from 3V to 20V supports diverse circuit designs without compromising stability.
• Low saturation voltage enables efficient switching with minimal power loss in transistor configurations.
• High current gain (typical range 50 to 300) enhances amplification tasks in analog signal circuits.
• Temperature stability across typical operating ranges maintains consistent transistor performance under varying conditions.

Compared to discrete transistor implementations and some earlier transistor arrays, the CA3046 offers improved matching accuracy and reduced leakage currents, making it appropriate for analog multipliers, oscillators, and amplifier stages. Its monolithic construction reduces component count and simplifies PCB layout, helping designers achieve more compact and predictable circuits.

Engineering benefits include low noise, stable gain characteristics, and balanced transistor matching that support high-fidelity signal amplification and balanced analog functions. The CA3046’s broad voltage tolerance and integrated transistor array make it suitable for precision analog circuits in communication devices, sensor interfaces, and other applications where consistent transistor performance and reduced design complexity are priorities.
