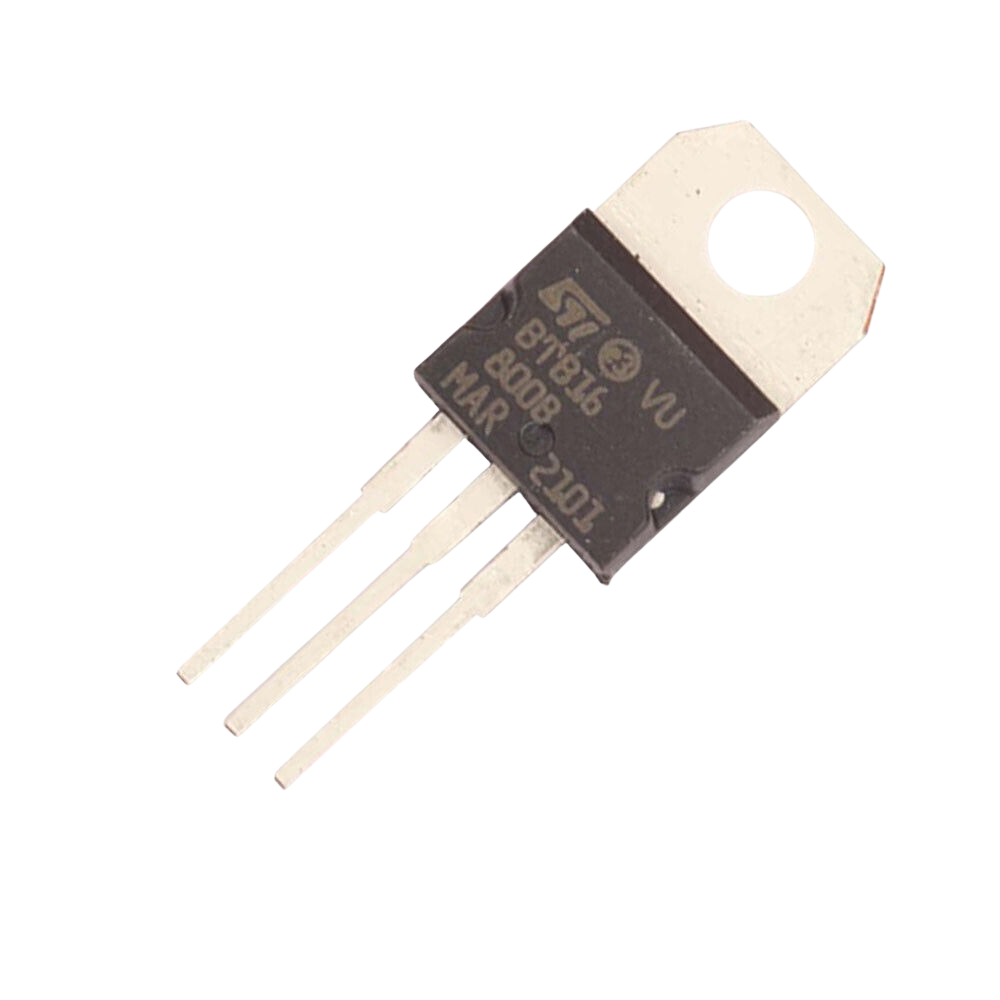

BTB16-800 Triac 16A 800V

The BTB16-800 Triac 16A 800V is a bidirectional semiconductor switching device designed for AC control applications. As a TRIAC, it conducts current in both directions when triggered, enabling control of alternating current without mechanical contacts. The model designation indicates a nominal on-state current capacity of 16 amps and a repetitive peak off-state voltage rating of 800 volts, suitable for many low- to medium-power mains AC circuits.

This device is typically used for phase-angle control, on/off switching, and dimming in equipment such as motor controllers, lighting dimmers, heater controls, and solid-state relays. It provides a compact, reliable alternative to electromechanical relays where silent operation and fast switching are required. Operation requires an appropriate gate drive signal and attention to safe thermal management and proper heat sinking to maintain device reliability under load.

When integrating the BTB16-800 Triac, designers should follow recommended electrical protection practices including snubber networks or RC suppression where needed, proper isolation, and consideration of transient overvoltages on AC mains. Correct mounting, secure soldering or socketing, and adherence to manufacturer datasheet limits are important for safe, long-term operation.
