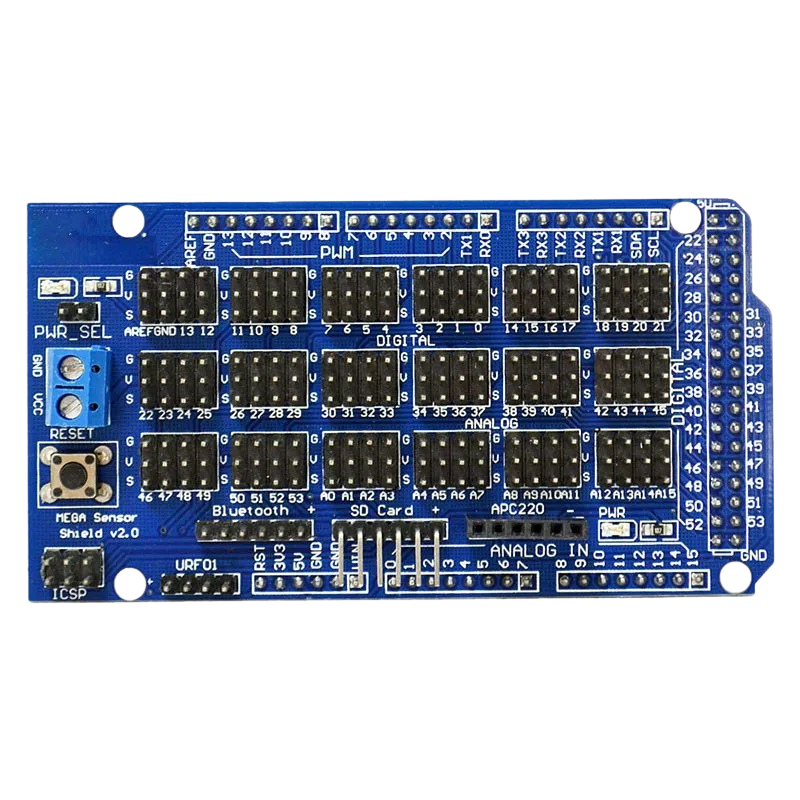

Arduino Mega 2560 Sensor Shield V2.0

The Arduino Mega 2560 Sensor Shield V2.0 is an expansion board designed to simplify prototyping and sensor integration with the Arduino Mega 2560 family. It provides a convenient, organized layout of pin headers and power rails so you can connect sensors, actuators, and modules without repetitive soldering or complex wiring.

Designed for ease of use, the shield breaks out the Mega 2560's digital and analog I/O lines into clearly labeled connectors and groups related signals together. Common power pins are routed to accessible rails to supply 5V or regulated power to connected devices, and multiple ground points reduce wiring errors. The shield also offers standardized servo-style three-pin connectors for direct servo or sensor hookup, and exposes communication lines used by typical peripherals to keep serial, SPI, and I2C connectivity available for shields or external modules.

The compact, board-mounted format keeps connections tidy on a development bench or inside a prototype enclosure, and the labeled pinouts make it easier to identify signals during assembly, testing, and troubleshooting. This shield is intended to accelerate development by reducing wiring time and improving the clarity of connections between the Mega 2560 and peripheral components.
