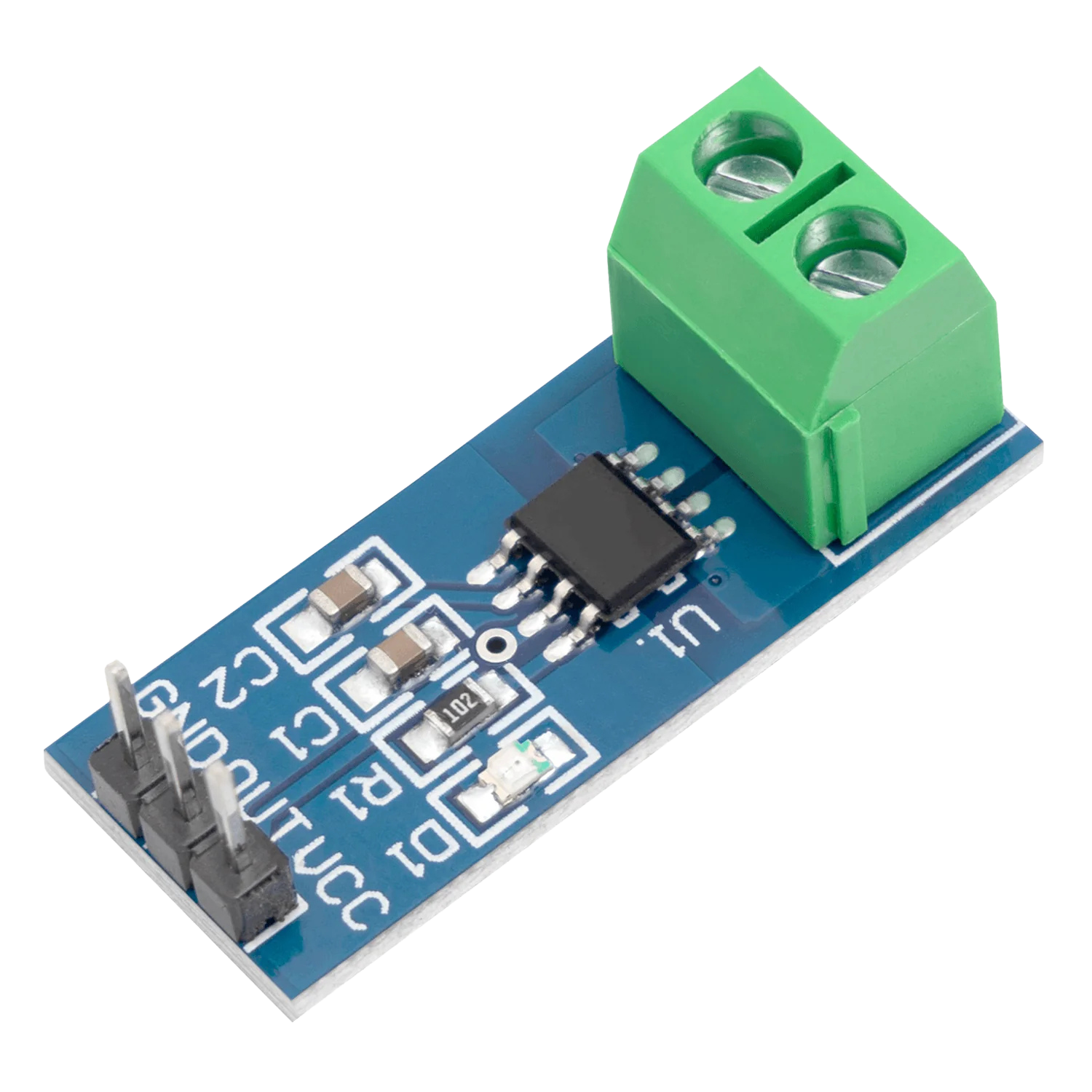

ACS712 10A/20A/30A Hall Current Sensor حساس تيار

The ACS712 Hall Current Sensor is available in three selectable ranges—10A, 20A, and 30A—providing versatile options for real-time current monitoring in diverse electronic systems. Its compact form factor and precise Hall effect sensing element deliver accurate, stable analog voltage outputs proportional to measured current, suitable for both AC and DC measurements.

• Three current ranges: 10A, 20A, 30A to match different sensing requirements.
• High-sensitivity Hall effect sensor for accurate and stable readings.
• Compact design for straightforward integration into electronic circuits.
• Analog voltage output with minimal interference for easier signal conditioning.
• AC and DC compatibility for broad application use.

By using Hall effect technology, the ACS712 provides electrical isolation between the measured circuit and the output signal, reducing noise and improving operator safety compared to conventional shunt resistor solutions. Its linear output simplifies processing and interfacing with microcontrollers and data acquisition systems, while the sensor’s low power profile and contactless measurement approach support efficient system design.

Applications and Advantages

The ACS712 is well suited for monitoring systems in industrial, automotive, and consumer electronics contexts where reliable current measurement and circuit isolation are important. Because the sensor produces a proportional analog voltage and offers enhanced sensitivity over earlier models, it is a practical choice for designers seeking straightforward integration, improved noise immunity, and dependable performance in a compact package.
