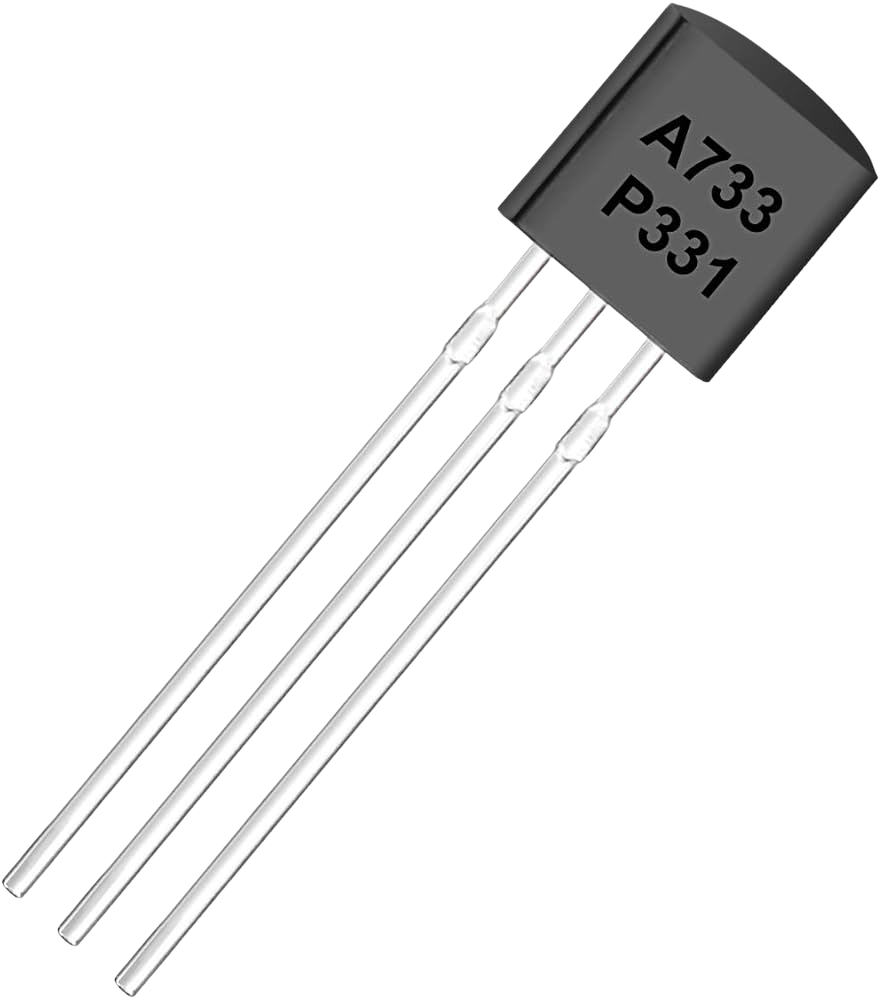

A733 PNP BJT Transistor 0.15A 60V 200mW

The A733 PNP BJT Transistor 0.15A 60V 200mW is a small-signal PNP bipolar junction transistor designed for general-purpose amplification and switching tasks in electronic circuits. This component is specified for modest collector current and voltage ratings, and is intended for designers and technicians needing a reliable PNP device for low-power analog or digital applications.

Key attributes of the A733 include its PNP polarity—suitable for circuits requiring a PNP counterpart to NPN transistors—compact power handling consistent with a 200 mW dissipation rating, and a collector current capability up to 0.15 A with a maximum collector-emitter voltage of 60 V as indicated in the product name. These characteristics make the device appropriate for signal-level amplification, small relay driving, level shifting, biasing networks, and complementary transistor stages in discrete circuits.

When integrating the A733 into a design, observe standard best practices for bipolar transistors: ensure correct biasing to set desired operating point, include appropriate base and collector resistances to limit currents, and provide thermal and voltage margining according to the application. For switching applications, verify that switching speeds and base drive are compatible with circuit timing requirements. Consult the manufacturer datasheet for precise pin assignments, physical package details, and absolute maximum ratings before finalizing a design.

This transistor is offered for projects and repairs that call for a PNP small-signal device with the ratings shown in the product name.
